- Page 1 PRO Series Personal Computer PRO DP B0A4 User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Safety & Comfort Tips .................... 3 System Overview..................... 4 Hardware Setup ...................... 7 Placing the Device ....................8 System Operations ....................... 9 Power Management ....................9 Network Connection (Windows 10) ..............11 System Recovery (Windows 10) ................ -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Personal Computer MS-B0A4 Quick Start Guide (Optional) User Guide (Optional) Documentation Warranty Card... -
Page 4: System Overview

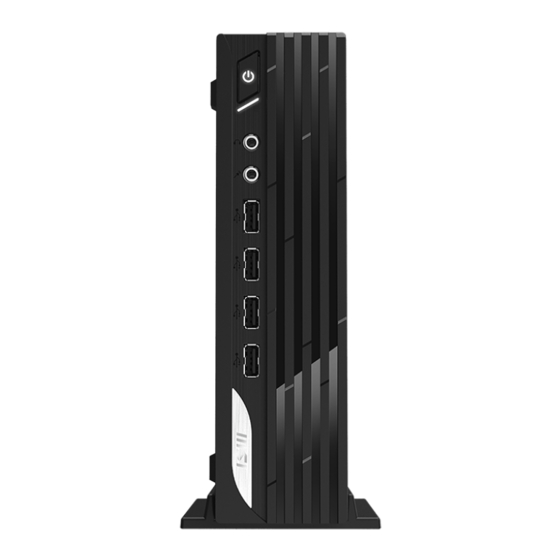

System Overview Getting Started... - Page 5 Power Button Press the power button to turn the system on and off. Hard Disk Drive LED This indicator shows the activity status of the HDD. It flashes when the system is accessing data on the HDD and remains off when no disk activity is detected.
- Page 6 LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it. Status Description No link Link/ Activity Yellow Linked LINK/ACT SPEED Blinking Data activity 10 Mbps Speed LED Green 100 Mbps...
-
Page 7: Hardware Setup
Hardware Setup Connect your peripheral devices to suitable ports. ⚠ Important For detailed instructions on how to connect, please refer to the manuals of your ∙ peripheral devices. Reference image only. Appearance will vary. ∙ Connect the power cord to the system and electrical outlet. Power Rating • 90W: 100-240V~, 50-60Hz, 19.5V-4.74A • 120W: 100-240V~, 50-60Hz, 19.5V-6.15A... -
Page 8: Placing The Device
Placing the Device Users can place the device horizontally, vertically, or wall mount it. Getting Started... -
Page 9: System Operations
System Operations This chapter provides you with essential information on system operations. ⚠ Important All information is subject to change without prior notice. Power Management Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity. - Page 10 Waking the System Up The computer shall be able to wake up from power saving mode in response to a command from any of the following: ∙ the power button, ∙ the network (Wake On LAN), ∙ the mouse, ∙ the keyboard. Energy Saving Tips: ∙...
-
Page 11: Network Connection (Windows 10)
Network Connection (Windows 10) Wired Network 1. Right-click [Start] and select [Network Connections] from the list. 2. Select [Ethernet] and then [Network and Sharing Center]. 3. Select [Set up a new connection or network]. 4. Choose [Connect to the Internet] and click [Next]. System Operations... - Page 12 5. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password. 6. Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection. System Operations...
- Page 13 Wireless Network 1. Go to [Start] , click [Settings] and select [Network and Internet]. 2. A list of available WLAN connections pops up. Choose a connection from the list. 3. To establish a new connection, select [Network and Sharing Center]. 4.
-
Page 14: System Recovery (Windows 10)
System Recovery (Windows 10) The purposes for using the System Recovery Function may include: ∙ Restore the system back to the initial status of original manufacturer’s default settings. ∙ When some errors have occurred to the operating system in use. ∙... - Page 15 Reset this PC 1. Go to [Start] , click [Settings] and select [Update and security]. 2. Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery. 3. The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything].
- Page 16 Keep my files 1. Select [Keep my files]. 2. The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs. Click [Next] to continue. 3. The next screen will show the changes to be made during the process. Click [Reset] to start the system reset.
- Page 17 Remove everything 1. Select [Remove everything]. 2. If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]. 3. Then select between [Just remove my files] and [Remove files and clean the drive]. 4.
-
Page 18: System Recovery (F3 Hotkey Recovery) (Optional)
Recovering the system with the F3 Hotkey Follow the instructions below to continue: 1. Restart the PC. 2. Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on the display. 3. On the [Choose an Option] screen, select [Troubleshoot]. -
Page 19: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 20 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 21: Regulatory Notices
∙ ErP Directive 2009/125/EC Compliance with these directives is assessed using applicable European Harmonized Standards. The point of contact for regulatory matters is MSI, MSI-NL Eindhoven 5706 5692 ER Son. Products with Radio Functionality (EMF) This product incorporates a radio transmitting and receiving device. For computers in normal use, a separation distance of 20 cm ensures that radio frequency exposure levels comply with EU requirements. - Page 22 ∙ this device may not cause harmful interference, and ∙ this device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com WEEE Statement Under the European Union (“EU”) Directive on Waste Electrical and...
- Page 23 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 24 ∙ Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products. ∙ Visit the MSI website and locate a nearby distributor for further recycling information. ∙ Users may also reach us at gpcontdev@msi.com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products.
