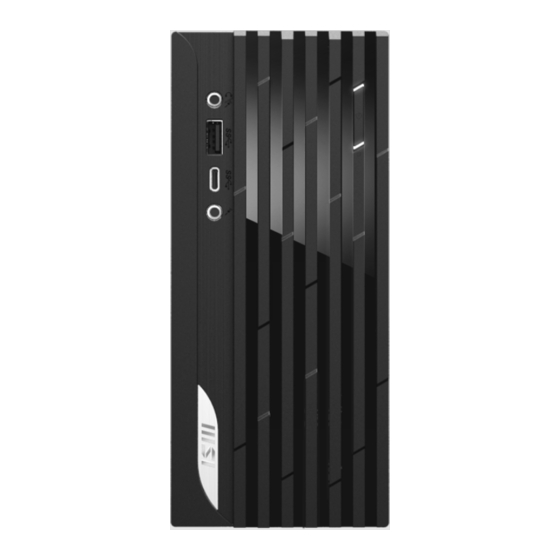

- Page 1 PRO Series Personal Computer MS-B0A2...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Safety & Comfort Tips .................... 3 System Overview..................... 4 Hardware Setup ...................... 8 Placing the Device ....................10 System Operations ..................... 11 Power Management ..................... 11 Network Connection (Windows 10) ..............13 System Recovery (Windows 10) ................ -
Page 3: Getting Started
This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Personal Computer MS-B0A2 User Manual (Optional) Quick Guide (Optional) Documentation Warranty Card... -
Page 4: System Overview
System Overview Front View Rear View Getting Started... - Page 5 Power LED The power LED glows when the system is turned on and goes off when the system is shut down. In terms of power saving, the LED blinks in S3 (Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode. Power Button Press the power button to turn the system on and off.
- Page 6 LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it. Yellow Green/ Orange LED Color LED State Condition Yellow LAN link is not established. On (steady state) LAN link is established.
- Page 7 DisplayPort 1.4 Port Supports a maximum resolution of 4K 60Hz ⚠ Important ∙ Graphics specifications may vary depending on the installed CPU. For processors without integrated graphics, connect your monitor to the ∙ discrete graphics card. Power Jack Power supplied through this jack supplies power to your system. Getting Started...
-
Page 8: Hardware Setup
Hardware Setup Connect your peripheral devices to suitable ports. ⚠ Important For detailed instructions on how to connect, please refer to the manuals of your ∙ peripheral devices. ∙ The images in this document may differ from your computer depending on the model you purchased. - Page 9 Connect the power cord to the system and electrical outlet. ∙ Power Rating: 100-240V~, 50-60Hz, 19.5V 6.15A ⚠ Important When unplugging the AC power cord, always hold the connector part of the cord. Never pull the cord directly. Getting Started...
-
Page 10: Placing The Device
Press the power button to power on the system. Placing the Device You can place the device as the following ways. Getting Started... -
Page 11: System Operations
System Operations This chapter provides you with essential information on system operations. ⚠ Important All information is subject to change without prior notice. Power Management Power management of personal computers (PCs) and monitors has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity. - Page 12 Waking the System Up The computer shall be able to wake up from power saving mode in response to a command from any of the following: ∙ the power button, ∙ the network (Wake On LAN), ∙ the mouse, ∙ the keyboard. Energy Saving Tips: ∙...
-
Page 13: Network Connection (Windows 10)
Network Connection (Windows 10) Wired Network 1. Right-click [Start] and select [Network Connections] from the list. 2. Select [Ethernet] and then [Network and Sharing Center]. 3. Select [Set up a new connection or network]. 4. Choose [Connect to the Internet] and click [Next]. System Operations... - Page 14 5. Select [Broadband (PPPoE)] to connect using DSL or cable that requires a user name and password. 6. Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection. System Operations...
- Page 15 Wireless Network 1. Go to [Start] , click [Settings] and select [Network and Internet]. 2. A list of available WLAN connections pops up. Choose a connection from the list. 3. To establish a new connection, select [Network and Sharing Center]. 4.
-
Page 16: System Recovery (Windows 10)
System Recovery (Windows 10) The purposes for using the System Recovery Function may include: ∙ Restore the system back to the initial status of original manufacturer’s default settings. ∙ When some errors have occurred to the operating system in use. ∙... - Page 17 Reset this PC 1. Go to [Start] , click [Settings] and select [Update and security]. 2. Select [Recovery] and click [Get started] under [Reset this PC] to start the system recovery. 3. The [Choose an option] screen pops up. Choose between [Keep my files] and [Remove everything].
- Page 18 Keep my files 1. Select [Keep my files]. 2. The [Your apps will be removed] screen shows a list of apps that will need to be reinstalled from the web or installation discs. Click [Next] to continue. 3. The next screen will show the changes to be made during the process. Click [Reset] to start the system reset.
- Page 19 Remove everything 1. Select [Remove everything]. 2. If you have multiple hard drives, a screen will pop up, asking you to choose between [Only the drive where Windows is installed] and [All drives]. 3. Then select between [Just remove my files] and [Remove files and clean the drive]. 4.
-
Page 20: System Recovery (F3 Hotkey Recovery) (Optional)
Recovering the system with the F3 Hotkey Follow the instructions below to continue: 1. Restart the PC. 2. Press the F3 hotkey on the keyboard promptly when the MSI greeting appears on the display. 3. On the [Choose an Option] screen, select [Troubleshoot]. -
Page 21: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 22 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 23: Regulatory Notices
∙ ErP Directive 2009/125/EC Compliance with these directives is assessed using applicable European Harmonized Standards. The point of contact for regulatory matters is MSI, MSI-NL Eindhoven 5706 5692 ER Son. Products with Radio Functionality (EMF) This product incorporates a radio transmitting and receiving device. For computers in normal use, a separation distance of 20 cm ensures that radio frequency exposure levels comply with EU requirements. - Page 24 ∙ this device may not cause harmful interference, and ∙ this device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com WEEE Statement Under the European Union (“EU”) Directive on Waste Electrical and...
- Page 25 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 26 ∙ Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products. ∙ Visit the MSI website and locate a nearby distributor for further recycling information. ∙ Users may also reach us at gpcontdev@msi.com for information regarding proper disposal, take-back, recycling, and disassembly of MSI products.
- Page 27 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied.
