https://wiki.teltonika-gps.com/view/Template:FMB650_First_start_card
Template:FMB650 First start card

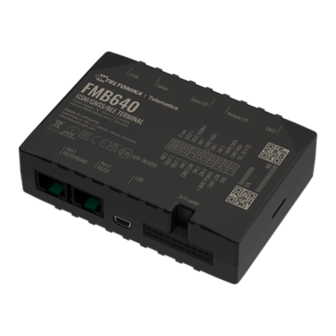

Leading LTE/GNSS/BLE Terminal for advanced applications
Contents

1 How to insert SIM card and connect the battery

How to insert SIM card and connect the battery
1.
Unscrew 4 screws counterclockwise that are located on the bottom of the device.
2.
Remove the cover.
3.
Insert SIM card as shown with PIN request disabled or read
later in
Teltonika
slot. SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.
4.
Connect battery as shown to device.
5.
After configuration, see
6.
Screw in all screws. Device is ready to be mounted.
Micro-SIM card insertion/removal must be performed when device is powered off – external
voltage and internal battery disconnected. Otherwise Micro-SIM card might be damaged or
device will not detect it.
FMX6 devices use Standard size SIM cards for SIM1 and SIM2. Currently most of the SIM
cards provided by operators can be disassembled into 3 parts - Standard/Micro/Nano.
Depending on the SIM card construction - during device usage in harsh conditions, SIM
assembly might come apart which causes instability when connecting to operator.
To avoid such risk:
1) If possible - ask operator for Standard SIM card with solid construction (not pre-cut to 3
Configurator. Make sure that SIM card cut-off corner is pointing forward to
"PC Connection
(Windows)", attach device cover back.
Security info
how to enter it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMB650 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika FMB650

Summary of Contents for Teltonika FMB650

  • Page 1 Template:FMB650 First start card Leading LTE/GNSS/BLE Terminal for advanced applications Contents 1 How to insert SIM card and connect the battery 2 How to insert microSD card into FMM650 How to insert SIM card and connect the battery Unscrew 4 screws counterclockwise that are located on the bottom of the device.
  • Page 2 parts) 2) Do not use SIM cards that were previously disassembled (SIM was taken apart previously) 3) If you plan to use only one SIM card - insert it into SIM1 slot (lower slot) - this ensures greater pressure on SIM contacts as the contact bed is pushed by PCB. When 2 SIM cards are used simultaneously risk is mitigated as well - when SIM1 is inserted, a greater pressure is applied for SIM2, so SIM parts are harder to come lose How to insert microSD card into FMM650...
