Steps:
1) Use screw caps to secure side panels to front & back panels.
2) Connect
shelf supports
with Velcro inside of panels, then place shelf on top of supports.
3) Attach Counter Top to assembled pedestal base. See
Side Panel
Screw
Front Panel
Cap
Shelf
Pedestal Base Assembly
SYM-408 Portable Counter
Counter Top Attachment
detail.
Back Panel
(with Door)
Side Panel
Screw
Cap
Counter Top
*
*
Pedestal Top Attachment
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
When assembled
*
Counter Top Attachment
1
2
Rotate pin. Spring
Align hole with pin.
will push pin into hole.
REV 05/2023
Advertisement
Table of Contents
Related Manuals for Classic Exhibits Symphony SYM-408
Summary of Contents for Classic Exhibits Symphony SYM-408

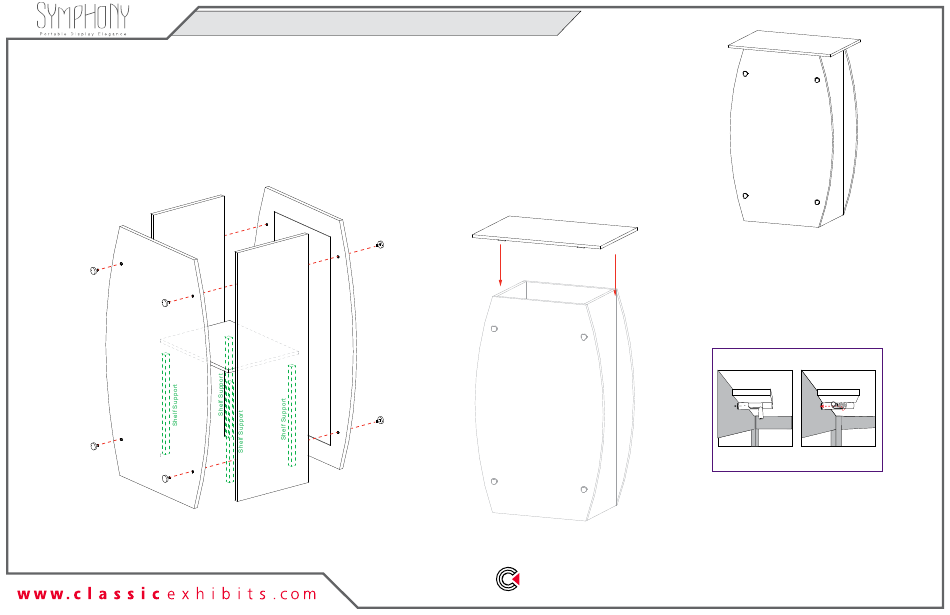

- Page 1 © 2023 REV 05/2023 Order #XXXXX SYM-408 Portable Counter Steps: 1) Use screw caps to secure side panels to front & back panels. 2) Connect shelf supports with Velcro inside of panels, then place shelf on top of supports. 3) Attach Counter Top to assembled pedestal base. See Counter Top Attachment detail.
