Summary of Contents for Classic Exhibits Symphony SYK-1046

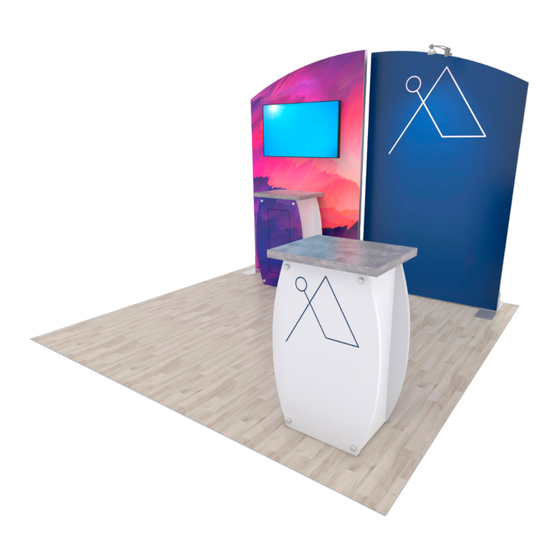

- Page 1 © 2023 REV 6/2023 Order #XXXXX SYK-1046 - 10’ x 10’ Portable Display 10’ 10’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-

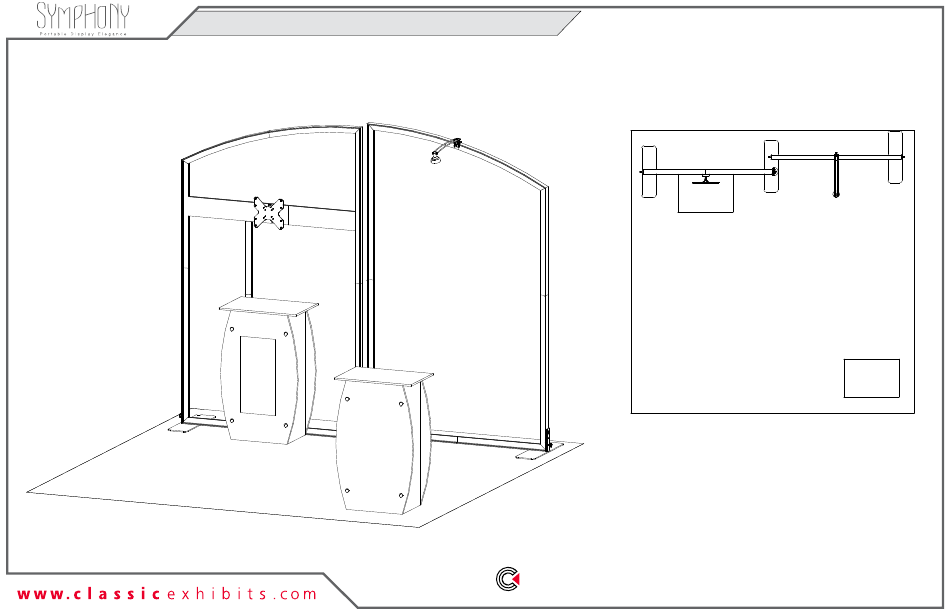

Page 2: Plan View
© 2023 Order #XXXXX Plan View = 1 sq ft... -
Page 3: General Setup Instructions
© 2023 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2023 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2023 Order #XXXXX Case Packing Top View of Each Level Lights Setup Hardware Monitor Mount Graphics Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Case 1 of 3...
- Page 6 © 2023 Order #XXXXX Case Packing Top View of Each Level Shelf Shelf Counter Top Supports Supports SYM-408B SYM-408B Left & Back Panel Right Front Panel Side Panels Shelf Standoffs & Key Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 2 of 3...
- Page 7 © 2023 Order #XXXXX Case Packing Top View of Each Level Shelf Shelf Counter Top Supports Supports Left & Back Panel Right Front Panel Side Panels Shelf Standoffs & Key Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 3 of 3...
-
Page 8: Front View
© 2023 Order #XXXXX Left Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal 45”h TSP49 Vertical Extrusion extrusions [5-6], [7-8] together, using Tool-less Spline connectors... - Page 9 © 2023 Order #XXXXX Right Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8] 45”h TSP49 Vertical Extrusion together, using Tool-less Spline connectors...
- Page 10 © 2023 Order #XXXXX Backwall Frames Connection Item Qty. Description Steps: 6” x 22” Two-Connection Base Plate 1) Install Base Plate [14] to verticals [3/4] & [3/4] as shown. Base Plate Attachment detail. Base Plate Attachment 1) Place key hole over bolt When assembled on panel &...
- Page 11 © 2023 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphics to front of assembled frames. Corner A Corner B When assembled Corner D Corner C Step 1 It is important to first insert Insert corner A. Turn edge of graphic into each alternate graphic so silicon welt is corner, then to the sides of...
- Page 12 © 2023 Order #XXXXX SYM-408B Backwall Counter Steps: Back Panel Hole Placement 1) Use screw caps to secure side panels to front & back panels. Ensure holes of back panel are correctly aligned for backwall attachment. Holes on back panel of Counter are off-center to attach to backwall vertical.
-
Page 13: Back View
© 2023 Order #XXXXX Backwall Attachments Steps: Monitor Mount Attachment 1) Connect Monitor Mount to backwall horizontal A ttach Monitor Mount as shown. See Monitor Mount Attachment detail. back piece to extrusion 2) Attach Counter to backwall vertical, using using bolts & wing nuts. standoff barrels &... - Page 14 © 2023 Order #XXXXX SYM-408 Reception Counter Steps: 1) Use screw caps to secure side panels to front & back panels. 2) Connect shelf supports with Velcro inside of panels, then place shelf on top of supports. 3) Attach Counter Top to assembled pedestal base. See Counter Top Attachment detail.
