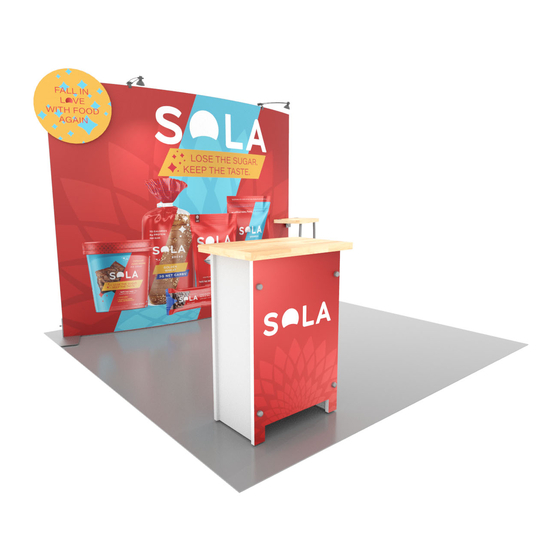

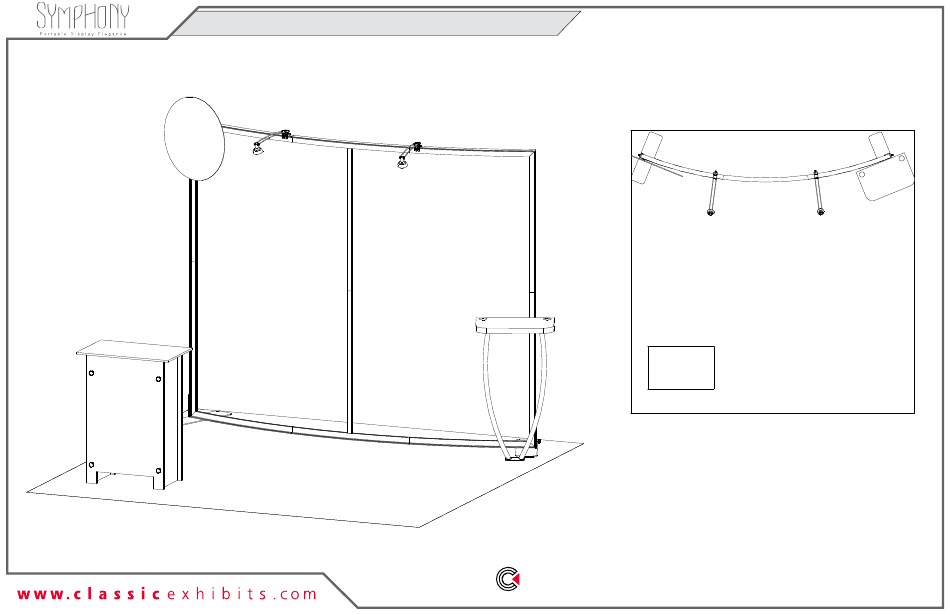

- Page 1 © 2022 REV 1/2022 Order #XXXXX SYK-1029 - 10’ x 10’ Portable Display 10’ 10’ Plan View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
- Page 2 © 2022 Order #XXXXX Plan View = 1 sq ft...
-
Page 3: General Setup Instructions
© 2022 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2022 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2022 Order #XXXXX Case Packing Top View of Each Level Counter 11,12 9,10 Legs Setup Hardware Lights Header Graphic Graphics Counter Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 1 of 2...
- Page 6 © 2022 Order #XXXXX Case Packing Top View of Each Level Shelf Shelf Counter Top Supports Supports Left & Right Front Panel Back Panel Side Panels Shelf & Floor Standoffs & Key Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 2 of 2...
-
Page 7: Front View
© 2022 Order #XXXXX Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 41”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 41”h TSP49 Vertical Extrusion together, using Tool-less Spline Connectors... - Page 8 © 2022 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphic to front of assembled frame. Corner A Corner B When assembled Corner D Corner C Step 1 It is important to first insert Insert corner A. Turn edge of graphic into each alternate graphic so silicon welt is corner, then to the sides of...
-
Page 9: Top View
© 2022 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail. - Page 10 © 2022 Order #XXXXX Backwall Attachments (cont’d) Floating Graphic Attachment Affix graphic to Bracket using Velcro. Hook the Graphic Bracket Velcro onto the extrusion & snap Bracket into place. Velcro Steps: Graphic Bracket 1) Connect Floating Graphic to backwall using brackets.
- Page 11 © 2022 Order #XXXXX SYM-407 Counter Assembly Steps: 1) Attach pins at bottom interior of side panels. Note: Pins are designed to be slightly angled. 2) Use screw caps to secure side panels to front & back panels. 3) Slide floor into the bottom of assembled pedestal base. The floor will sit on pins of the side panels. 4) Connect shelf supports with Velcro inside of panels, then place shelf on top of supports.
