Classic Exhibits SYMPHONY SYK-2003 Setup Instructions

10' x 20' portable display
Hide thumbs

Advertisement

Quick Links

Download this manual
© 2023
REV 06/2023
Order #XXXXX

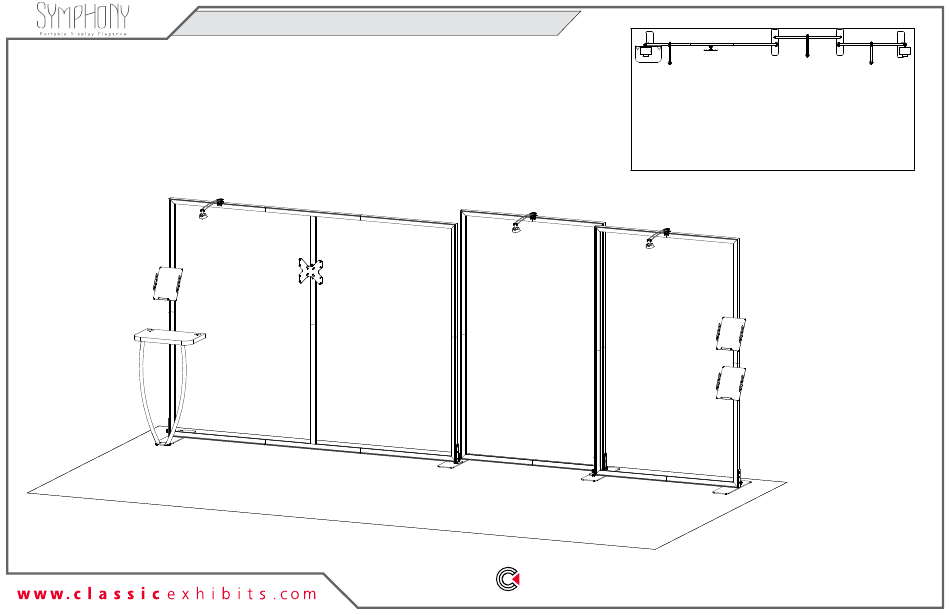

SYK-2003 - 10' x 20' Portable Display
10'
20'
Plan View

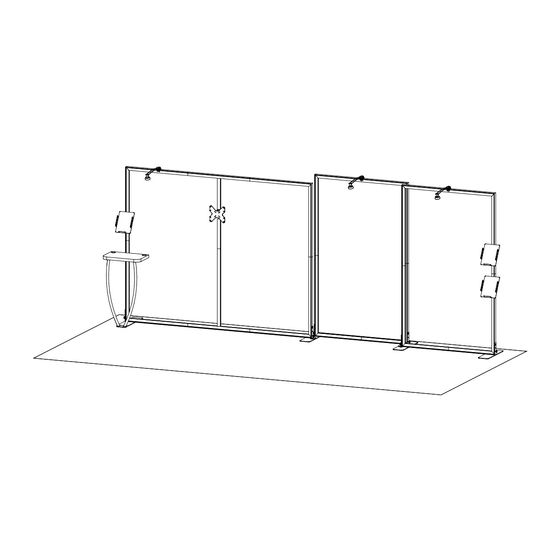

Perspective View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYMPHONY SYK-2003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Classic Exhibits SYMPHONY SYK-2003

Summary of Contents for Classic Exhibits SYMPHONY SYK-2003

  • Page 1 © 2023 REV 06/2023 Order #XXXXX SYK-2003 - 10’ x 20’ Portable Display 10’ 20’ Plan View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...

  • Page 2: Plan View

    © 2023 Order #XXXXX Plan View = 1 sq ft...

  • Page 3: General Setup Instructions

    © 2023 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 4 © 2023 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 5 © 2023 Order #XXXXX Case Packing Top View of Each Level Counter 11 12 Legs 8,10 Setup Hardware Monitor Mount Workstation Graphic Counter Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Case 1 of 3...
  • Page 6 © 2023 Order #XXXXX Case Packing Top View of Each Level Lights Graphics Literature Trays Level 1 Level 2 (Bottom level) Case 2 of 3...
  • Page 7 © 2023 Order #XXXXX Case Packing Top View of Each Level Graphics Level 1 Level 2 Level 3 (Bottom level) Case 3 of 3...

  • Page 8: Front View

    © 2023 Order #XXXXX Large Backwall Frame Assembly (Left Frame) Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 41”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 41”h TSP49 Vertical Extrusion together, using Tool-less Spline Connectors...
  • Page 9 © 2023 Order #XXXXX Small Backwall Frame Assembly (middle frame) Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 45”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal 45”h TSP49 Vertical Extrusion extrusions [5-6], [7-8] together, using Tool-less Spline connectors...
  • Page 10 © 2023 Order #XXXXX Small Backwall Frame Assembly (right frame) Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 45”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal 45”h TSP49 Vertical Extrusion extrusions [5-6], [7-8] together, using Tool-less Spline connectors...
  • Page 11 © 2023 Order #XXXXX Backwall Frames Connection Steps: Base Plate Attachment 1) Connect middle frame to base plates of P lace key hole over bolt on panel & slide down. left & right frames, as shown. Twist knob to secure connection. Base Plate Attachment detail.
  • Page 12 © 2023 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphics to assembled frames. Corner A Corner B When assembled Corner D Corner C Step 1 It is important to first insert Insert corner A. Turn edge of graphic into each alternate graphic so silicon welt is corner, then to the sides of...

  • Page 13: Underside View

    © 2023 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail.
  • Page 14 © 2023 Order #XXXXX Backwall Attachments (cont’d) Literature Tray Attachment Slide bracket over Tighten knobs of V4 connector Attach Literature Tray to V4 connector on to secure bracket in place. angled extrusion of bracket; vertical extrusion. tighten knob to secure lock. Bracket Slide Bracket...
  • Page 15 © 2023 Order #XXXXX Backwall Attachments (cont’d) Steps: 1) Attach Monitor Mount to backwall vertical. Monitor Mount Attachment detail. Monitor Mount Attachment A ttach Monitor Mount back piece to vertical extrusion using bolts & nuts. Completed Assembly Wing nuts Bolts Monitor Mount Back piece Slide monitor mount...
