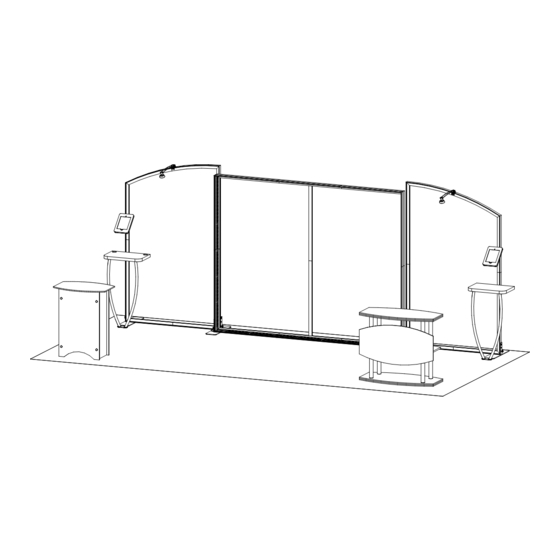

- Page 1 © 2024 Order #XXXXX SYK-2028 - 10’ x 20’ Portable Display 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View

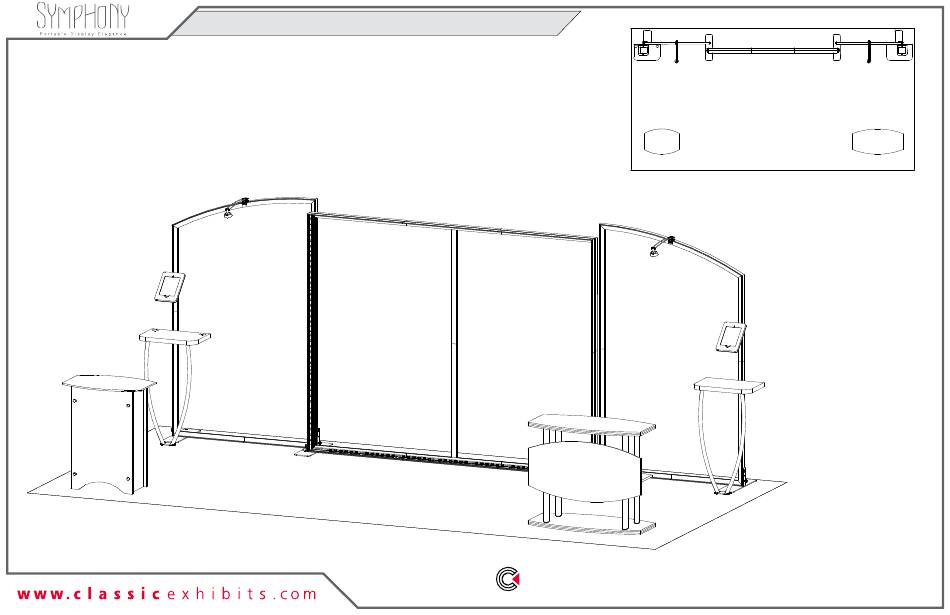

© 2024 Order #XXXXX Plan View = 1 sq ft... -
Page 3: General Setup Instructions
© 2024 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2024 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2024 Order #XXXXX Case Packing Top View of Each Level Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 5...
- Page 6 © 2024 Order #XXXXX Case Packing Top View of Each Level Counter Legs Lights iPad Mounts Setup Hardware Counter Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 2 of 5...
- Page 7 © 2024 Order #XXXXX Case Packing Top View of Each Level Counter Legs Graphics Graphics Counter Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 3 of 5...
- Page 8 © 2024 Order #XXXXX Case Packing Top View of Each Level Shelf Left & Right Front Panel DoorPanel Side Shelf Counter Top Panels Supports Floor Standoffs & Key Level 4 Level 5 Level 1 Level 2 Level 3 (Bottom level) Case 4 of 5...
- Page 9 © 2024 Order #XXXXX Case Packing Top View of Each Level Setup Hardware Graphic Counter Floor Shelf Legs Legs Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 5 of 5...
-
Page 10: Front View
© 2024 Order #XXXXX Lightbox Frame Assembly Item Qty. Description Steps: 41”h CEI110 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 42”h CEI110 Vertical Extrusion 41”h CEI110 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 45”h CEI110 Vertical Extrusion together, using Tool-less Spline Connectors... - Page 11 © 2024 Order #XXXXX Lightbox Frame Wiring Steps: 1) Attach power cords to Supernova lights, as shown. Power Break Light to Light Attachment Male Lights Light to Transformer Attachment Female Power Transformer 144W / 6 Amp / 24V Maximum of 7 lights per chain, 11 lights per Transformer Transformer Transformer...
- Page 12 © 2024 Order #XXXXX Left Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal 45”h TSP49 Vertical Extrusion extrusions [5-6], [7-8] together, using Tool-less Spline connectors...
- Page 13 © 2024 Order #XXXXX Right Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 31.305”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal 45”h TSP49 Vertical Extrusion extrusions [5-6], [7-8] together, using Tool-less Spline connectors...
- Page 14 © 2024 Order #XXXXX Backwall Frames Connection Steps: Base Plate Attachment 1) Connect vertical of Left Frame Assembly to P lace key hole over bolt on panel & slide down. Base Plate of Middle Frame Assembly. Twist knob to secure connection. Base Plate Attachment detail.
- Page 15 © 2024 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphics to assembled frames. 2) Apply SEG Blocker to back of lightbox frame. Corner A Corner B When assembled Corner D Corner C Step 1 It is important to first insert Insert corner A.
-
Page 16: Top View
© 2024 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail. - Page 17 © 2024 Order #XXXXX Backwall Attachments (cont’d) iPad Swivel Mount Attachment Slide bracket over Tighten knobs of V4 connector Attach iPad Mount to angled V4 connector on to secure bracket in place. extrusion of bracket; tighten vertical extrusion. knob to secure lock. Bracket Slide Bracket...
- Page 18 © 2024 Order #XXXXX SYM-406 Counter Assembly Steps: 1) Attach pins at bottom interior of side panels. Note: Pins are designed to be slightly angled. 2) Use screw caps to secure side panels to front & back panels. 3) Slide floor into the bottom of assembled pedestal base. The floor will sit on pins of the side panels. 4) Connect shelf supports with Velcro inside of panels, then place shelf on top of supports.
- Page 19 © 2024 Order #XXXXX SYM-411 Counter Assembly Item Qty. Description Steps: 16.732”h aluminum Leg (lower) Note: Assemble counter upside-down. 16.732”h aluminum Leg (lower w/ Velcro) 16.732”h aluminum Leg (upper) 1) Attach upper legs to underside of Counter Top. Twist to tighten. 16.732”h aluminum Leg (upper w/Velcro) 2) Connect lower Legs through Counter Shelf to upper Legs, as shown.
