Order #XXXXX
Item
Qty.
Description
--
2
16.732"h aluminum Leg (lower)
--
2
16.732"h aluminum Leg (lower w/ Velcro)
--
2
16.732"h aluminum Leg (upper)
--
2
16.732"h aluminum Leg (upper w/Velcro)
--
1
43"w x 21.5"d Counter Base
--
1
43"w x 21.5"d Counter Shelf
1
43"w x 21.5"d Counter Top
Assemble unit upside-down.
wing
nuts
*
*
Note: Velcro must face front of assembled counter.

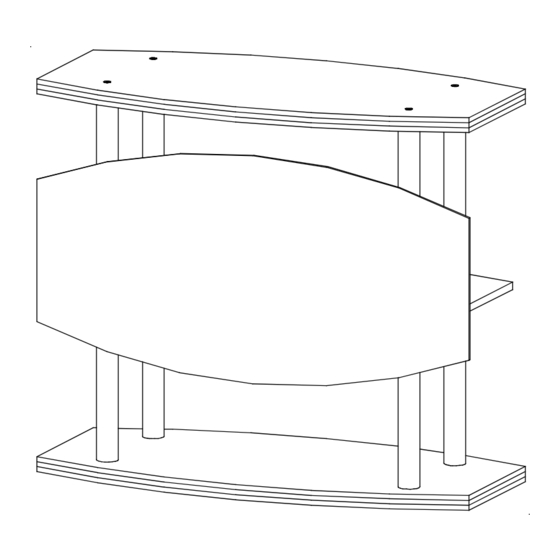

SYM-411 Portable Counter
Steps:
Note: Assemble counter upside-down.

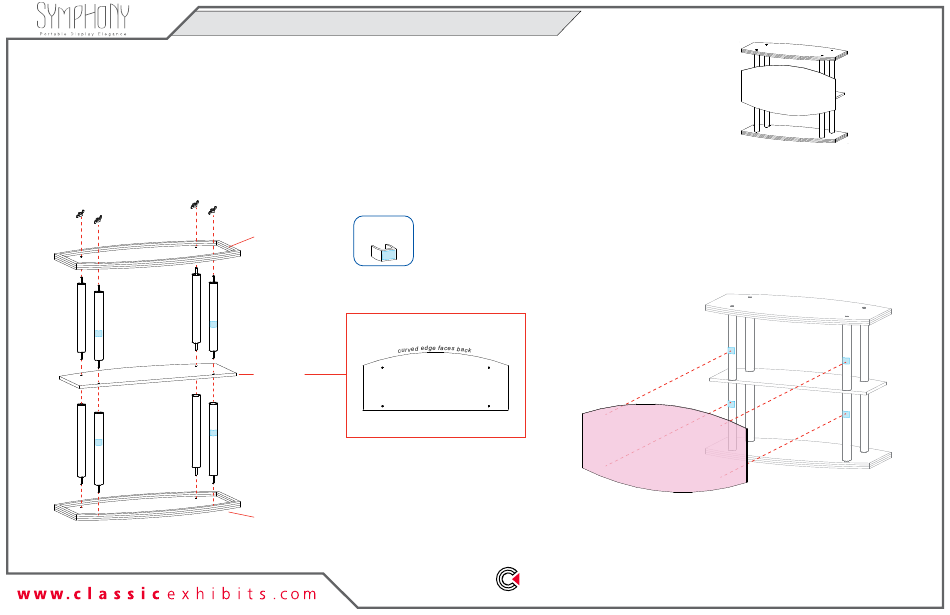

1) Attach upper legs to underside of Counter Top. Twist to tighten.
2) Connect lower Legs through Counter Shelf to upper Legs, as shown.
3) Place Counter Base over lower Legs & secure with wing nuts.
4) Turn counter unit over & affix Graphic to Velcro on front of unit.
*
Clamp
Counter Base
w/ Velcro
Lower Legs
*
Counter Shelf
*
Upper Legs
Counter Top
TOP VIEW
Counter Shelf
straight edge faces front
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
When assembled
Velcro
Graphic
REV 05/2023
Velcro
