SYK-1032 - 10' x 10' Portable Display
10'
10'

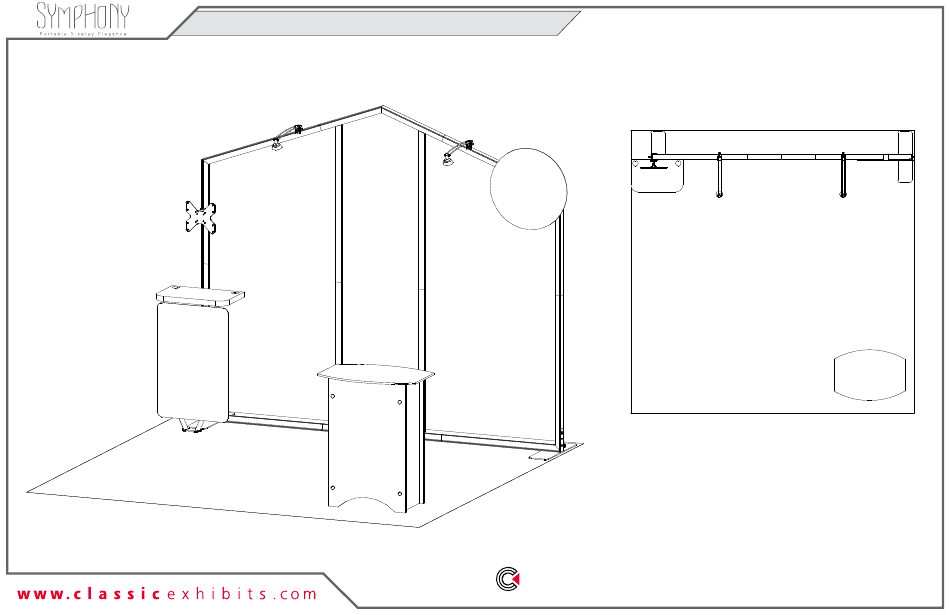

Plan View
Perspective View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYMPHONY SYK-1032 and is the answer not in the manual?

Questions and answers

Summary of Contents for Classic Exhibits SYMPHONY SYK-1032

  • Page 1 © 2022 REV 7/2022 Order #XXXXX SYK-1032 - 10’ x 10’ Portable Display 10’ 10’ Plan View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2: Plan View

    © 2022 Order #XXXXX Plan View = 1 sq ft...
  • Page 3: General Setup Instructions

    © 2022 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 4 © 2022 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 5 © 2022 Order #XXXXX Case Packing Top View of Each Level 8,10 Lights 11,11 12,12 Setup Monitor Hardware Mount Header Counter Graphic Legs Graphics Workstation Counter Graphic Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 (Bottom level) Case 1 of 2...
  • Page 6 © 2022 Order #XXXXX Case Packing Top View of Each Level Shelf Left & Right Front Panel DoorPanel Side Shelf Counter Top Panels Supports Floor Standoffs & Key Level 4 Level 5 Level 1 Level 2 Level 3 (Bottom level) Case 2 of 2...
  • Page 7: Front View

    © 2022 Order #XXXXX Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 30.091”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 30.091”h TSP49 Vertical Extrusion together, using Tool-less Spline Connectors...
  • Page 8 © 2022 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphic to front of assembled frame. Corner A Corner B When assembled Corner D Corner C Step 1 It is important to first insert Insert corner A. Turn edge of graphic into each alternate graphic so silicon welt is corner, then to the sides of...
  • Page 9: Top View

    © 2022 Order #XXXXX Backwall Attachments Steps: Workstation Bracket Attachment 1) Attach Workstation Mounting Bracket Hook the Mounting Bracket Slide bracket forward, then Tighten thumb screws to to backwall vertical as shown. over the vertical extrusion. down onto V4 connector. secure connection to inside Workstation Bracket Attachment detail.
  • Page 10 © 2022 Order #XXXXX Backwall Attachments (cont’d) Steps: 1) Connect Floating Graphic to backwall using brackets. See Floating Graphic Attachment detail. Floating Graphic Attachment Affix graphic to Bracket When Assembled using Velcro. Hook the Graphic Bracket Velcro Velcro onto the extrusion & snap Bracket into place.
  • Page 11 © 2022 Order #XXXXX Backwall Attachments (cont’d) Steps: 1) Attach Monitor Mount to backwall vertical as shown. Monitor Mount Bracket Attachment detail. Monitor Mount Attachment Hook the Mounting Bracket Slide bracket forward, then over the vertical extrusion. down onto V4 connector. V4 connectors stay permanently attached to vertical extrusion.
  • Page 12 © 2022 Order #XXXXX SYM-406 Counter Assembly Steps: 1) Attach pins at bottom interior of side panels. Note: Pins are designed to be slightly angled. 2) Use screw caps to secure side panels to front & back panels. 3) Slide floor into the bottom of assembled pedestal base. The floor will sit on pins of the side panels. 4) Connect shelf supports with Velcro inside of panels, then place shelf on top of supports.
