lil. CONTROLS
OnNaanrewn a
@) @) YA OOM OAH
AC OUTLET
UNSWITCHED:
220-2404-— 190-120.
AC
110~120¥/220-~ 2409
50/GOHz 150W
WARHING < SHOCK HAZARO-D0 NO" PEN!
AVIS: RISQUE DE CHOC ELECTRIO® WE PAS OUYRIR!
NICHT GFFRENS-
ay

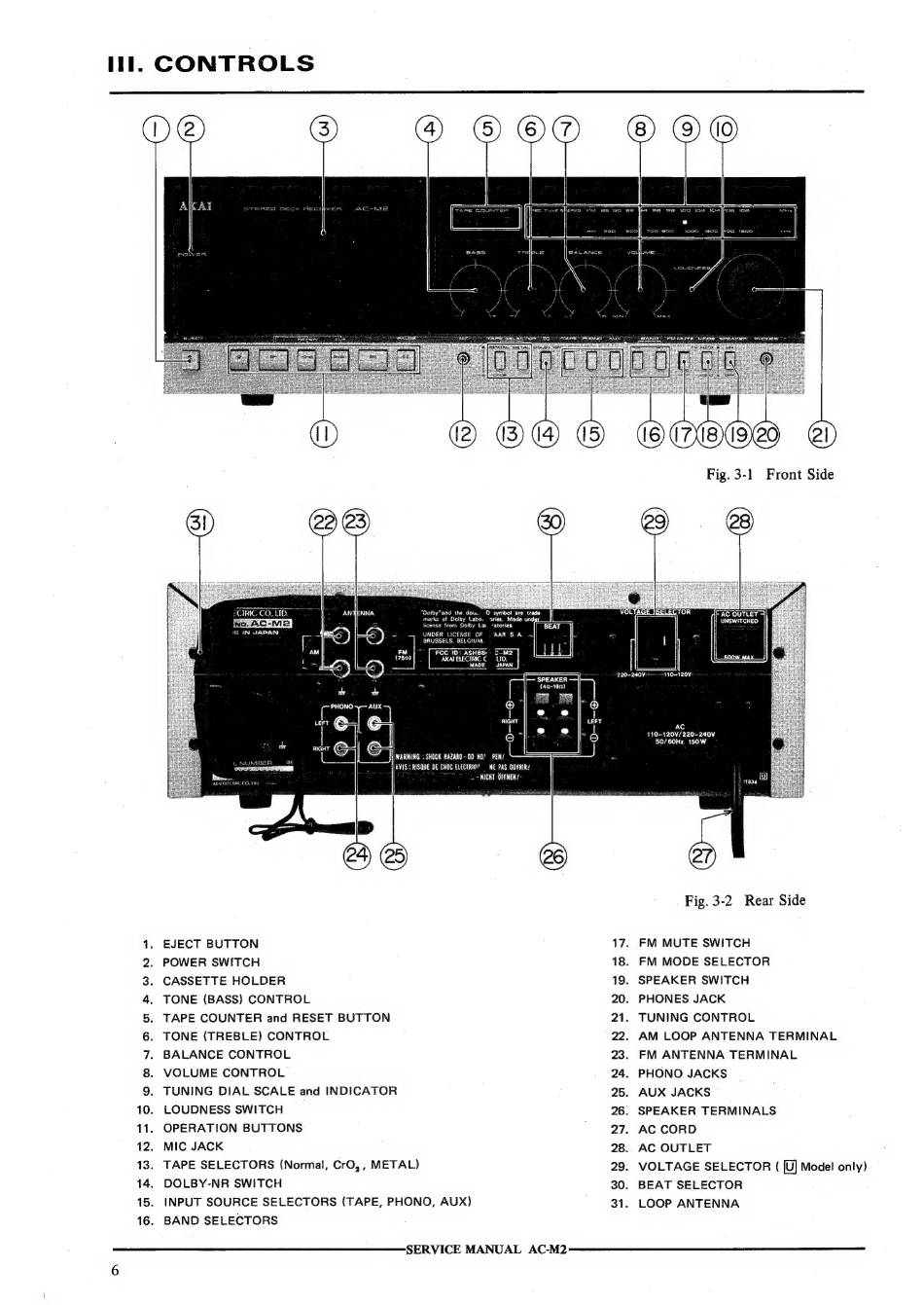

Fig. 3-2 Rear Side
EJECT BUTTON 17. FM MUTE SWITCH
POWER SWITCH 18. FM MODE SELECTOR
CASSETTE HOLDER 19. SPEAKER SWITCH
TONE (BASS) CONTROL 20. PHONES JACK
TAPE COUNTER and RESET BUTTON 21. TUNING CONTROL
TONE (TREBLE) CONTROL 22. AM LOOP ANTENNA TERMINAL
BALANCE CONTROL 23. FM ANTENNA TERMINAL
VOLUME CONTROL 24. PHONO JACKS
TUNING DIAL SCALE and INDICATOR 25. AUX JACKS ©
LOUDNESS SWITCH 26. SPEAKER TERMINALS
OPERATION BUTTONS , 27. AC CORD
Mic JACK 28.. AC OUTLET
. TAPE SELECTORS (Normal, CrO,, METAL) 29. VOLTAGE SELECTOR ( |U} Model only)
DOLBY-NR SWITCH 30. BEAT SELECTOR
INPUT SOURCE SELECTORS (TAPE, PHONO, AUX) 31. LOOP ANTENNA
BAND SELECTORS
