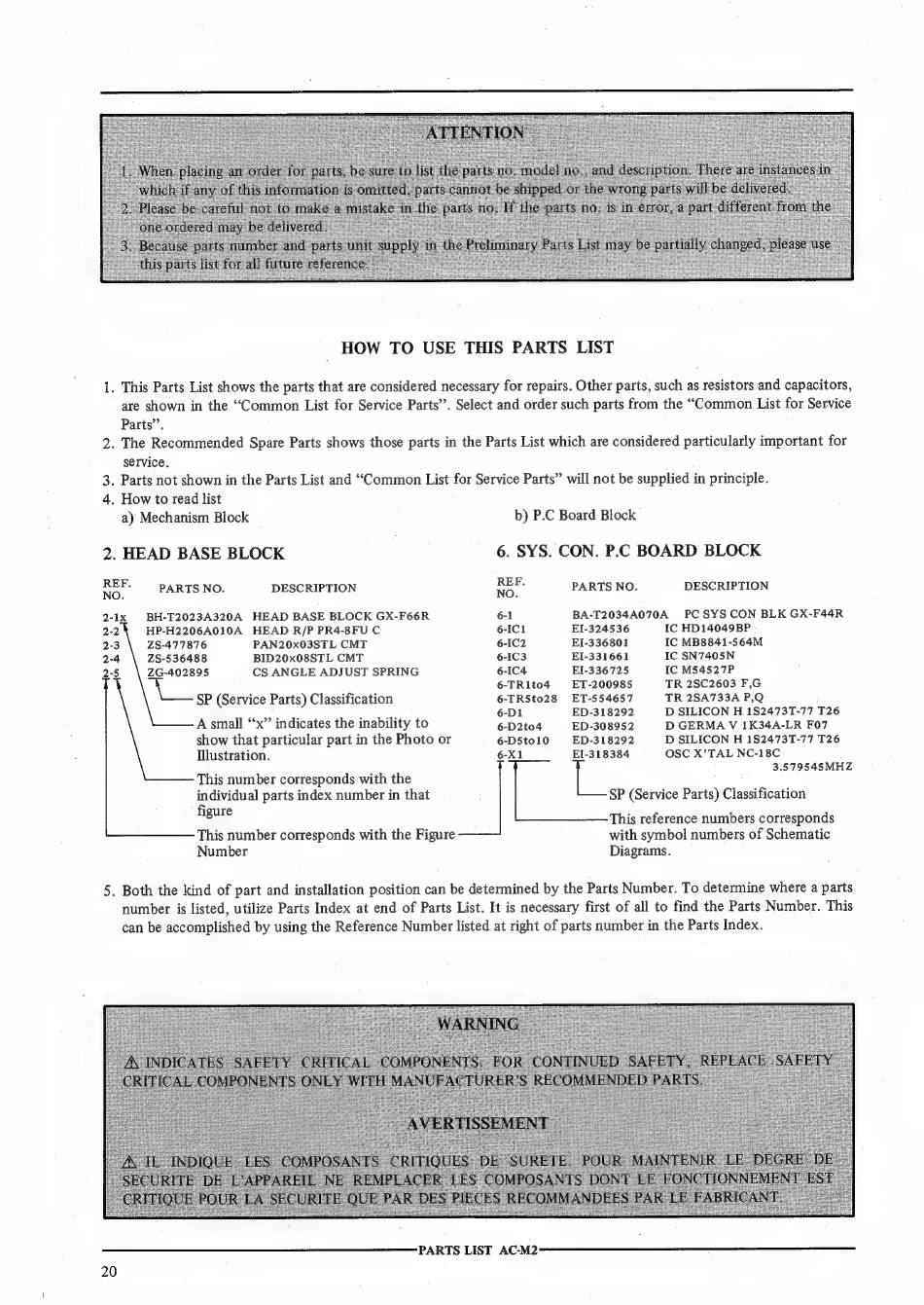

HOW TO USE THIS PARTS
LIST
1. This Parts List shows the parts that are considered necessary for repairs. Other parts, such as resistors and capacitors,
are shown in the "Common List for Service Parts'. Select and order such parts from the "Common List for Service
Parts''.
2. The Recommended Spare Parts shows those parts in the Parts List which are considered particularly important for
service.
Ww
4. How to read list
a) Mechanism Block
2. HEAD BASE BLOCK
REF.
NO.
2-1x
BH-T2023A320A
HEAD BASE BLOCK GX-F66R
2-2
HP-H2206A010A
HEAD
R/P PR4-8FU C
PARTS NO.
DESCRIPTION
2-3
ZS-477876
PAN20x03STL CMT
2-4
ZS-536488
BID20x08STL CMT
2-5
ZG-402895
CS ANGLE ADJUST SPRING
SP (Service Parts) Classification
A small ''x" indicates the inability to
show that particular part in the Photo or
Illustration.
This number corresponds with the
individual parts index number in that
figure
This number corresponds with the Figure
Number
b) P.C Board Block
. Parts not shown in the Parts List and "Common List for Service Parts" will not be supplied in principle.
6. SYS. CON. P.C BOARD BLOCK
REF.
NO.
6-1
6-IC1
6-IC2
6-1C3
6-IC4
6-TR1to4
6-TR5to28
6-D1
6-D2to4
6-D5to10
6-X1
PARTS NO.
DESCRIPTION
BA-T2034A070A
PC SYS CON BLK GX-F44R
EI-324536
EI-336801
EI-331661
EI-336725
ET-200985
ET-554657
ED-318292
ED-308952
ED-318292
EI-318384
IC HD14049BP
IC MB8841-564M
IC SN7405N
IC M54527P
TR 2SC2603 F,G
TR 2SA733A P,Q
.
D SILICON H 182473T-77 T26
D GERMA V 1K34A-LR F07
D SILICON H 182473T-77 T26
OSC X'TAL NC-18C
3.579545MHZ
SP (Service Parts) Classification
This reference numbers corresponds
with symbol numbers of Schematic
Diagrams.
20
PARTS LIST AC-M2
