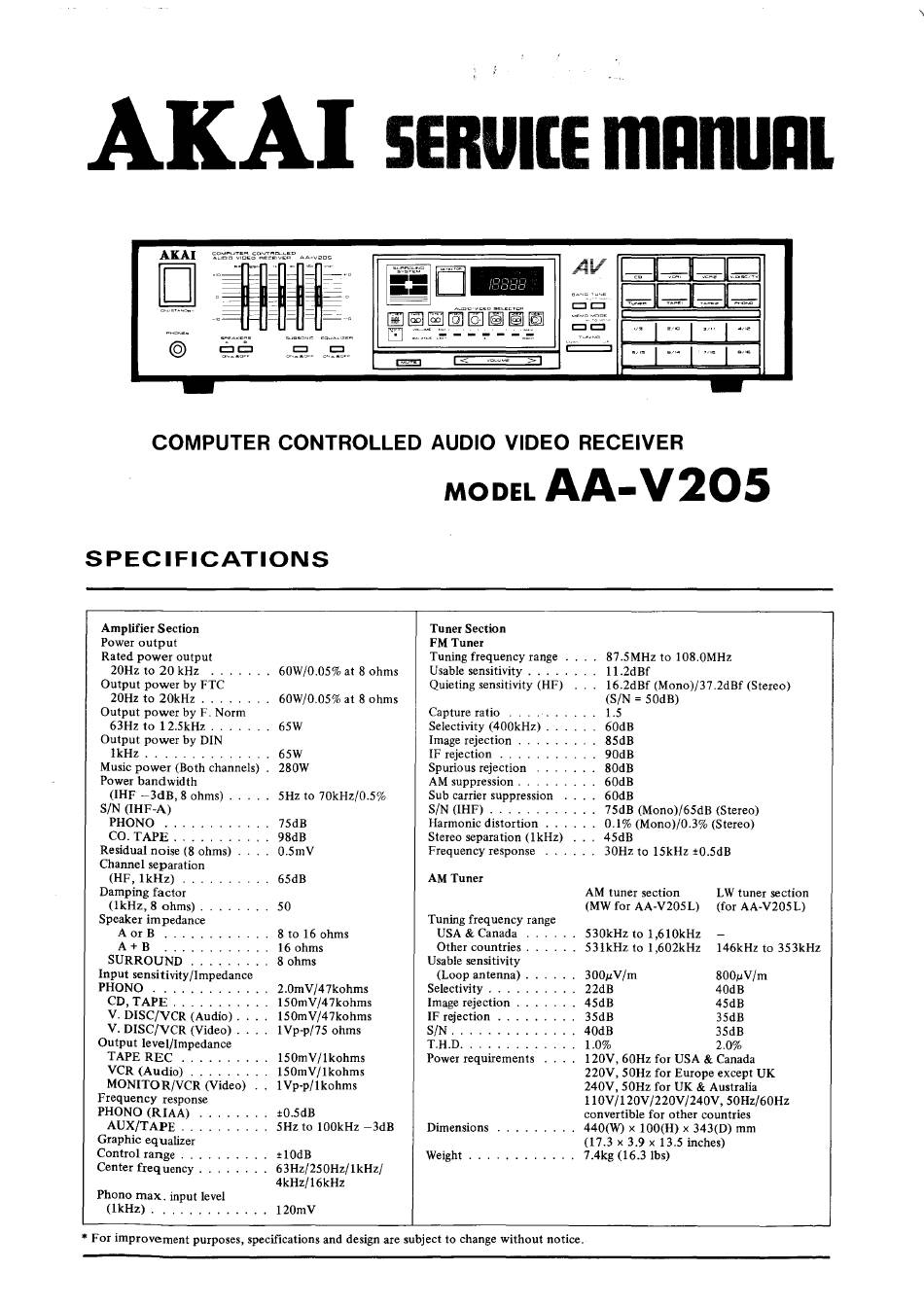

Akai AA-V205 Service Manual

AKAi
SERUl[E
fflADUAl
cc ,,c:A, vc:"" vrn,;;c:1.,.v
@
c::J c::J c::J c::J
COMPUTER CONTROLLED AUDIO VIDEO RECEIVER
SPECIFICATIONS
Amplifier Section
Power output
Rated power output
20Hz to 20 kHz .
Output power by FTC
20Hz to 20kHz . . . . .
Output power by F. Norm
63Hz to l 2.5kHz ...
Output power by DIN
lkHz . . . . . . . . . .
Music power (Both channels)
Power bandwidth
(IHF -3dB, 8 ohms) . . . .
S/N (IHF-A)
PHONO . . . . . . . . . .
CO. TAPE . . . . . . .
Residual noise (8 ohms)
Channel separation
(HF, lkHz) . . . .
Damping factor
(lkHz, 8 ohms) ..
Speaker impedance
A or B . . . . . . . .
A+ B . . . . . . . . .
SURROUND . . . . . .
Input sensitivity/Impedance
PHONO . . . . . . . . . . . .
CD, TAPE . . . . . . . . . .
V. DISC/VCR (Audio) .
V. DISC/VCR (Video) .
Output level/Impedance
TAPE REC . . . . . . .
VCR (Audio) . . . . . .
MONITOR/VCR (Video) .
Frequency response
PHONO (RIAA) .
AUX/TAPE ...
Graphic equalizer
Control range . . .
Center frequency .
Phono max. input level
60W/0.05% at 8 ohms
60W/0.05% at 8 ohms
65W
65W
280W
5Hz to 70kHz/0.5%
75dB
98dB
0.5mV
65dB
50
8 to 16 ohms
16 ohms
8 ohms
2.0mV/47kohms
150mV/47kohms
150mV/47kohms
1 Vp-p/75 ohms
150mV/lkohms
150mV/lkohms
1 Vp-p/lkohms
±0.5dB
5Hz to l00kHz -3dB
±lOdB
63Hz/250Hz/lkHz/
4kHz/16kHz
(lkHz) . . . . . . . . . . . . . 120mV
MODELAA-V205
Tuner Section
FM Tuner
Tuning frequency range
Usable sensitivity . . . .
Quieting sensitivity (HF)
Capture ratio . . . . .
Selectivity (400kHz) .
Image rejection . .
IF rejection . . . . . .
Spurious rejection ..
AM suppression . . . .
Sub carrier suppression .
S/N (IHF) . . . . . . . . .
Harmonic distortion . . .
Stereo separation (lkHz)
87.5MHz to 108.0MHz
1 l .2dBf
16.2dBf (Mono)/37.2dBf (Stereo)
(S/N
=
50dB)
1.5
60dB
85dB
90dB
80dB
60dB
60dB
75dB (Mono)/65dB (Stereo)
0.1 % (Mono)/0.3% (Stereo)
45dB
Frequency response . . . . . . 30Hz to 15kHz ±0.5dB
AM Tuner
Tuning frequency range
USA & Canada .
Other countries .
Usable sensitivity
(Loop antenna) .
Selectivity . . . . .
Image rejection ..
IF rejection . . . . ..
S/N . . . . . . . . . .
T.H.D . . . . . . . . .
Power requirements
Dimensions
Weight . . .
AM tuner section
(MW for AA-V205L)
L W tuner section
(for AA-V205L)
530kHz to 1,610kHz -
531kHz to 1,602kHz 146kHz to 353kHz
300µV/m 800µV/m
22dB 40dB
45dB 45dB
35dB 35dB
40dB 35dB
1.0% 2.0%
120V, 60Hz for USA & Canada
220V, 50Hz for Europe except UK
240V, 50Hz for UK
&
Australia
110V/120V/220V/240V, 50Hz/60Hz
convertible for other countries
440(W) x l00(H) x 343(D) mm
(17 .3 x 3.9 x 13.5 inches)
7.4kg (16.3 lbs)
*
For improvement purposes, specifications and design are subject to change without notice.
