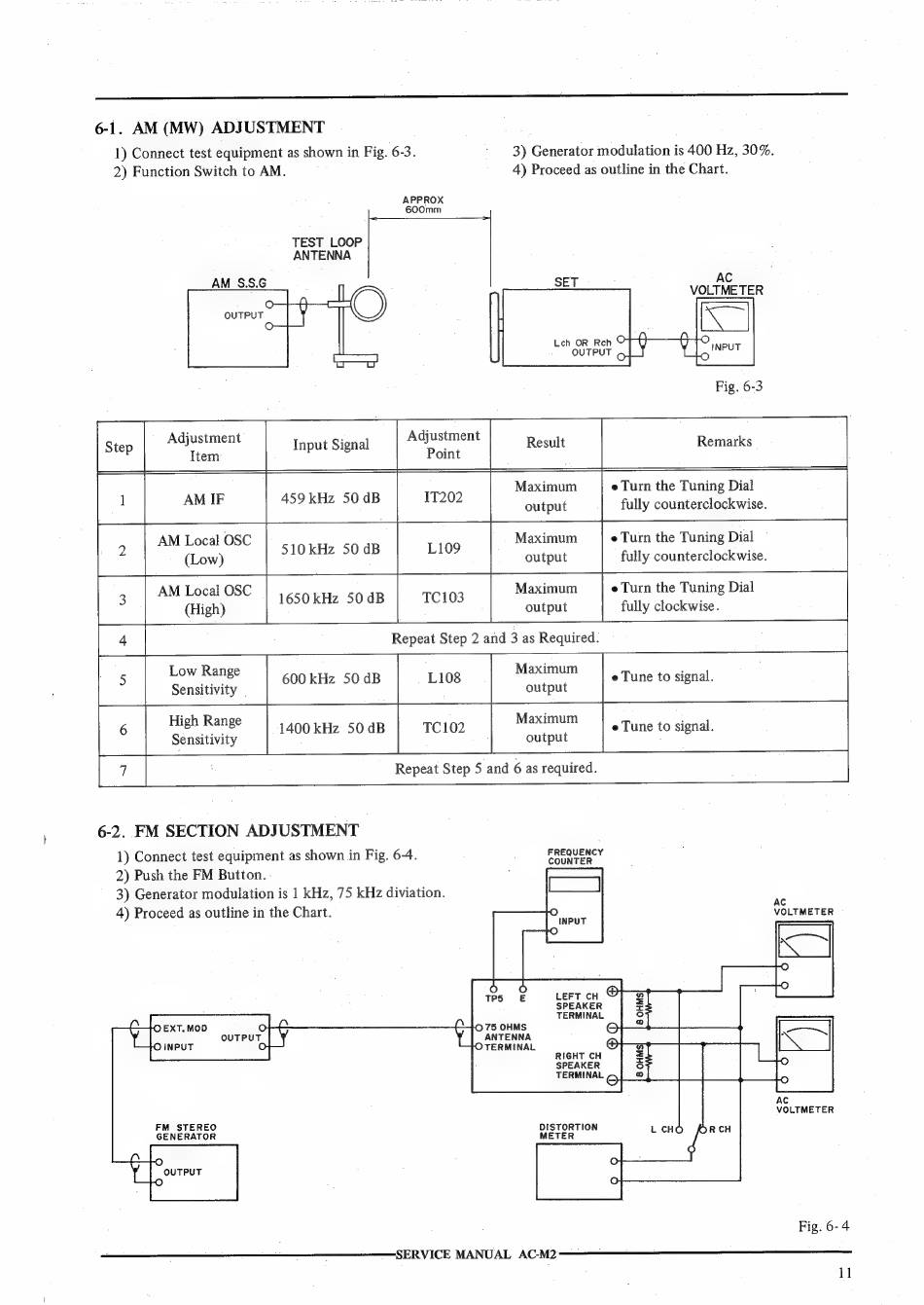

6-1. AM (MW) ADJUSTMENT
1) Connect test equipment as shown in Fig. 6-3.
2) Function Switch to AM.
3) Generator modulation is 400 Hz, 30%.
4) Proceed as outline in the Chart.
APPROX
600mm
TEST LOOP
ANTENNA
AM _S.S.G
AC
SEI
VOLTMETER
O
OUTPUT
©
:
Leh OR Reh O
Step
Adjusmuent
Input Signal
adieinent
Result
Tf
Remarks
Item
Point
ne
—
—|
Maximum
e Turn the Tuning Dial
1
AM IF
459 kHz 50 dB
IT202
output
{= counterclockwise.
| >
AM Local OSC
510 kHz 50 dB
L109
Maximum
e Turn the Tuning Dial
(Low)
output
fully counterclockwise.
3
AM Local OSC
1650 kHz 50 dB
TC103
Maximum
e Turn the Tuning Dial
(High)
output
fully clockwise.
4
Repeat Step 2 and 3 as Required.
5 | LowRange
| ¢ookHz 50dB | L108
Maximum | , Tune to signal.
Sensitivity
output
| 6 | HighRange | i4o0kHz 50dB | C102
Maximum |. Tune to signal.
Sensitivity
output
7
Repeat Step 5 and 6 as required.
|
6-2. FM SECTION ADJUSTMENT
2) Push the FM Button.
3) Generator modulation is 1 kHz, 75 kHz diviation.
4) Proceed as outline in the Chart.
AC
VOLTMETER
Lert cH ©
SPEAKER
TERMINAL
EXT,MOD
O
OUTPUT
K
O INPUT
O
RIGHT CH
SPEAKER
TERMINAL
AC
VOLTMETER
FM
STEREO
GENERATOR
Fig. 6-4
SERVICE MANUAL
AC-M2
11
