Cosmo COS-30ESWC Installation Instructions Manual

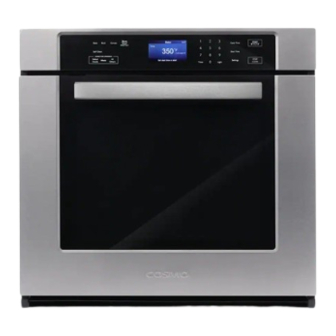

30 in. electric wall oven
Hide thumbs Also See for COS-30ESWC:
Table of Contents

Advertisement

Quick Links

Download this manual
WALL OVEN
COS-30ESWC
COS-30EDWC
30 IN. ELECTRIC WALL OVEN
INSTALLATION INSTRUCTIONS
IMPORTANT:
READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
INSTALLER:
PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR
THE OWNER.
OWNER:
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
Rev.23.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COS-30ESWC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cosmo COS-30ESWC

Summary of Contents for Cosmo COS-30ESWC

  • Page 1 WALL OVEN COS-30ESWC COS-30EDWC 30 IN. ELECTRIC WALL OVEN INSTALLATION INSTRUCTIONS IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THIS UNIT FOR THE OWNER. OWNER: PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
  • Page 2 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS OVEN SAFETY....................4 Important Safety Instructions ................6 INSTALLATION REQUIREMENTS..............7 Tools and Parts ...................... 7 Location Requirements..................9 Product Dimensions .................... 10 Cutout Dimensions ....................11 Electrical Requirements ..................13 INSTALLATION INSTRUCTIONS ..............15 Unpack Oven....................... 16 Remove Oven Door.....................

  • Page 4: Oven Safety

    OVEN SAFETY READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol.
  • Page 5 WARNING • This appliance is intended for normal residential use. It is not approved for commercial use, outdoor installation, or any other application not specifically allowed by this manual. • This appliance requires connection to a 3-prong or 4-prong, 240VAC single-phase (split-phase), 60Hz grounded electrical source.

  • Page 6: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire, electrical shock, injury to persons, or damage when using the appliance, follow basic precautions, including the following: • • Proper Installation – The Injuries may result from misuse of appliance doors such as appliance, when installed, must be electrically grounded in stepping, leaning, or sitting on...

  • Page 7: Installation Requirements

    INSTALLATION REQUIREMENTS TOOLS AND PARTS Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools Needed • Tape measure • Drill and drill bit (for wall cabinet installations) • Phillips screwdriver •...
  • Page 8 Parts Supplied Oven Racks Oven door handle Single oven model (2) Single oven model (1) Double oven model (3) Double oven model (2) 2-Piece broiler pan Meat thermometer (probe) #8-14 x 1" Mounting screws Single oven model (2) Double oven model (4) NOTE: •...

  • Page 9: Location Requirements

    LOCATION REQUIREMENTS IMPORTANT: Observe all governing codes and ordinances. • Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance with oven. • Recessed installation area must provide complete enclosure around the recessed portion of the oven. •...

  • Page 10: Product Dimensions

    PRODUCT DIMENSIONS Single Oven Model Double Oven Model Measurements Dimensions Letter Single Oven Model Double Oven Model Width (Overall) 29 13/16" (75.8 cm) 29 13/16" (75.8 cm) Depth (Overall) 24 5/16" (61.8 cm) 24 5/16" (61.8 cm) Height (Overall) 28 7/16" (72.2 cm) 51 3/16"...

  • Page 11: Cutout Dimensions

    CUTOUT DIMENSIONS IMPORTANT: Some cabinet and building materials are not designed to withstand the heat produced by the oven for baking and self-cleaning. Check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. GIVEN DIMENSIONS ARE MINIMUM CLEARANCES.
  • Page 12 Double Oven in Cabinet Electrical Junction 4" Box Location Double Oven Measurements Dimensions Letter Cabinet Width (Cutout) 28 5/8" (72.7 cm) Depth (Cutout) 23 13/16" (60.5 cm) Height (Cutout) 50 1/4" (127.7 cm) Clearance to Upper/ 1 1/2" (3.8 cm) Lower Cabinet Door Oven Side Overlap 11/16"...

  • Page 13: Electrical Requirements

    ELECTRICAL REQUIREMENTS WARNING ELECTRICAL SHOCK HAZARD • Do not use an extension cord with this appliance. • Remove house fuse or open circuit breaker before beginning installation. • Improper connection of aluminum house wiring to copper leads can result in an electrical hazard or fire. Use only connectors designed for joining copper to aluminum and follow the manufacturer’s recommended procedure closely.
  • Page 14 Voltage, Recommended Oven Type Power Rating Frequency Circuit 240 V, 60 Hz 25 Amp 4,800 W COS-30ESWC Single Oven 208 V, 60 Hz 20 Amp 3,605 W 240 V, 60 Hz 40 Amp 8,500 W COS-30EDWC Double Oven...

  • Page 15: Installation Instructions

    • A single-phase (split-phase), 3-wire or 4-wire, 120/208 VAC or 120/240 VAC, 60 hertz electrical system must be used. It is the personal responsibility of the oven owner to provide the correct electrical service for this oven. • Effective January 1, 1996, the National Electrical Code requires that new construction (not existing) utilize a 4-conductor connection to an electric oven.

  • Page 16: Unpack Oven

    UNPACK OVEN WARNING EXCESSIVE WEIGHT HAZARD • Use two or more people to move and install oven. Failure to do so can result in back or other injury. 1. Remove all tape and packaging materials from around the oven. 2. Open the oven door and remove packaging materials and oven racks inside the oven.

  • Page 17: Remove Oven Door

    REMOVE OVEN DOOR IMPORTANT: The oven door is heavy and fragile, and the door front is glass. To avoid oven door glass breakage, use both hands, and grasp only the sides of the oven door to remove. Do not lift oven door by door handle. 1.

  • Page 18: Electrical Connection

    ELECTRICAL CONNECTION WARNING ELECTRICAL SHOCK HAZARD • Turn off the circuit breaker or remove house fuse to the oven branch circuit before servicing. • This appliance must be properly grounded. • Do not use an adapter or an extension cord. •...
  • Page 19 1. Turn off the circuit breaker or remove fuses to the oven branch circuit. 2. Using two or more people, grasp the ceiling of the oven cavity, lift oven on table or platform directly in front of and even with the cutout opening. •...

  • Page 20: 3-Wire Power Supply Connection

    3-WIRE POWER SUPPLY CONNECTION IMPORTANT: Use the 3-wire cable from power supply where local codes permit connecting the oven ground conductor to the neutral (white) junction box supply wire. 3-Wire Cable from Power Supply Junction Box Black Wires UL Listed or CSA Approved Wire Connector White Wires...

  • Page 21: 4-Wire Power Supply Connection

    4-WIRE POWER SUPPLY CONNECTION IMPORTANT: Use the 4-wire cable from power supply where local codes do not permit connecting the oven ground conductor to the neutral (white) junction box supply wire. 4-Wire Cable from Power Supply Junction Box White Wires Black Wires UL Listed or CSA Approved Wire...

  • Page 22: Install Oven

    INSTALL OVEN WARNING EXCESSIVE WEIGHT HAZARD • Use two or more people to move and install oven. Failure to do so can result in back or other injury. 1. Loop (do not tie) a 36" (91 cm) string around the conduit before the oven is slid into place.

  • Page 23: Install Oven Door

    6. Secure the oven to the cabinet with mounting screws provided. NOTE: • If the cabinet is particle board, you must use 3/4" particle board screws. These may be purchased at any hardware store. INSTALL OVEN DOOR IMPORTANT: The oven door is heavy and fragile, and the door front is glass. To avoid oven door glass breakage, use both hands, and grasp only the sides of the oven door to remove.
  • Page 24 4. Open the door fully. If the door will not open fully, the indentation is not seated correctly in the bottom edge of the slots. 5. Lock the hinge locks, rotating them back toward the slots in the oven frame until they lock. Unlocke d Locked 6.

  • Page 25: Install Oven Door Handle

    INSTALL OVEN DOOR HANDLE (FOR UNITS WITHOUT THE HANDLE PRE-INSTALLED) Be very careful not to scratch the surface of the unit. The appearance of the handle may vary from what is shown in the manual Tool Needed • Hex key (provided) Installing the Handle 1.

  • Page 26: Complete Installation

    COMPLETE INSTALLATION INSERT OVEN RACKS The appearance of the racks may vary from what is shown in the manual. 1. Place the end of the rack on the support. 2. Tilt the front end up and push the rack in. CHECK OPERATION OF OVEN IMPORTANT: Check that all packing material and tape have been removed.
  • Page 27 IMPORTANT Do Not Return This Product To The Store If you have a problem with this product, please contact COSMO Customer Support at +1 (888) 784-3108 DATED PROOF OF PURCHASE, MODEL #, AND SERIAL # REQUIRED FOR WARRANTY SERVICE. IMPORTANT Ne pas Réexpédier ce Produit au Magasin...
  • Page 28 MEMO...
  • Page 29 MEMO...
  • Page 30 MEMO...
  • Page 31 MEMO...
  • Page 32 APPLIANCES Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...

This manual is also suitable for:

Cos-30edwc
