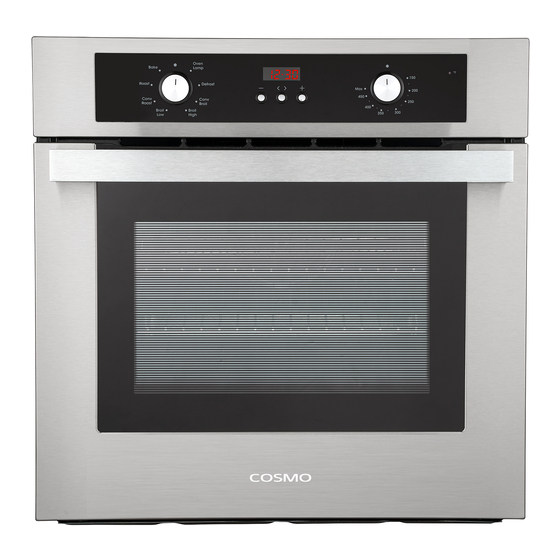

Cosmo COS-C51EIX Installation Manual & User Manual
24-in wall oven
Hide thumbs
Also See for COS-C51EIX:
- Install & user's manual (16 pages) ,
- User's manual & installation instructions (56 pages)
Related Manuals for Cosmo COS-C51EIX
Summary of Contents for Cosmo COS-C51EIX

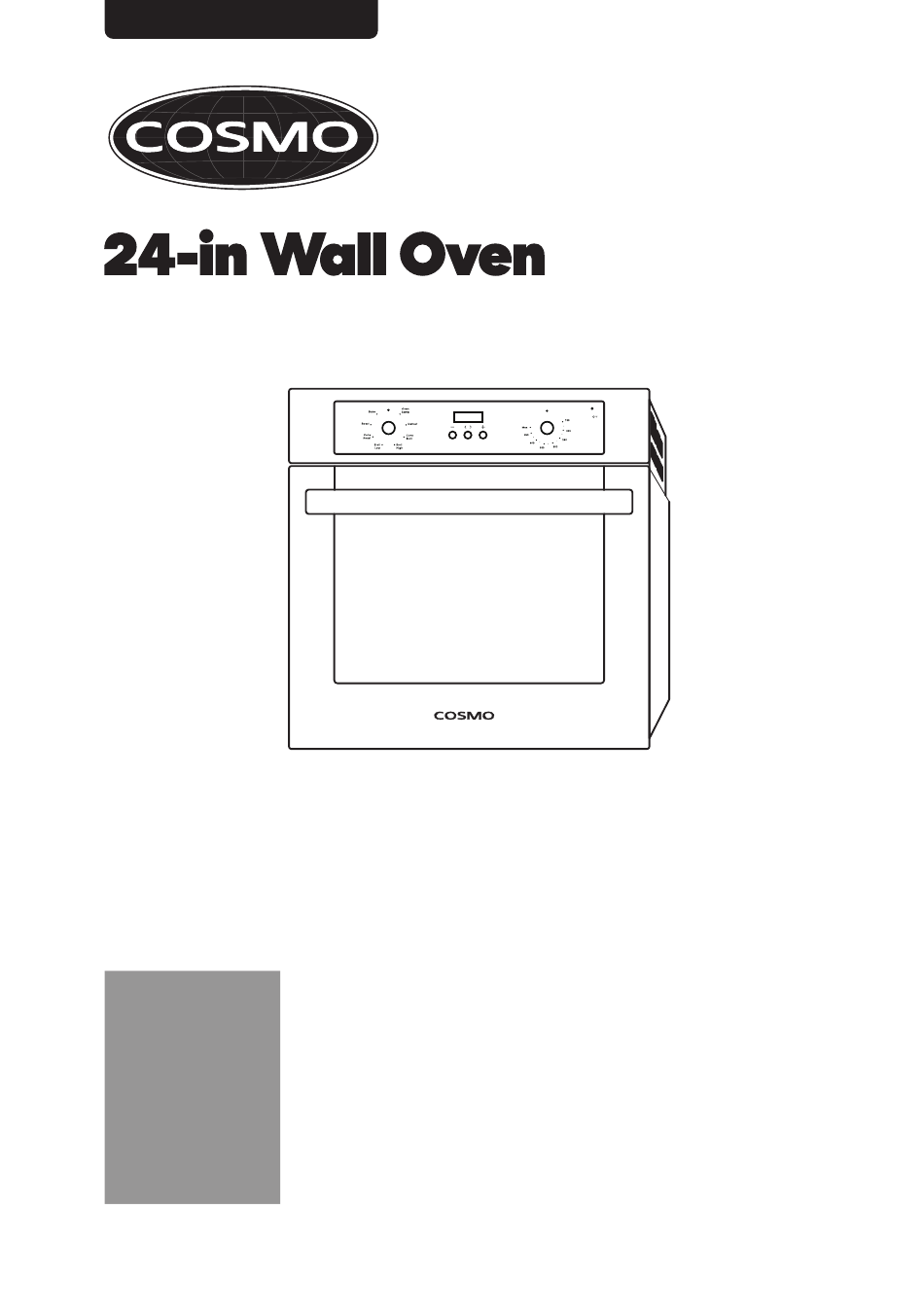

- Page 1 COS-C51EIX Built-in Electric Oven Installation Guide & Users Manual IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference...
- Page 2 COSMO appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Acknowledgment ........................... 3 Safety & Warnings ........................3-6 Fitting the Oven Into Kitchen Cabinet ................... 7 Important ............................7 Oven Controls & Functions ......................8-9 Releasing and Recessing the Control Knobs ................. 9 How to Use Control Knobs ......................9 Operating Instructions ...................... -
Page 4: Acknowledgment
ACKNOWLEDGMENT Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product, please read through this Install & User Manual carefully. Keep this user manual in a safe place for future reference. - Page 5 SAFETY & WARNINGS • If the oven is cracked or damaged, immediately switch it off to avoid possible electrical shock. • Ensure the oven is switched off before replacing the oven bulb to avoid possible electric shock. • The means for disconnection must be incorporated in the fixed wiring, in accordance with local code.
- Page 6 SAFETY & WARNINGS • The appliance must be properly installed and grounded by a qualified technician. • Do not use the appliance for warming or heating a room. • Wear proper attire when the using the appliance; loose or hanging garments should never be worn while the appliance is in use.
- Page 7 SAFETY & WARNINGS • Do NOT touch heating elements or interior surfaces of the oven. Heating elements may be hot, even when they appear dark in color. Interior oven surfaces become hot enough to cause burns. During oven use, do NOT touch or allow clothing or any flammable materials contact heating elements or interior surfaces of oven until there has been enough time to cool.
-
Page 8: Fitting The Oven Into Kitchen Cabinet
FITTING THE OVEN INTO KITCHEN UNIT Fit the oven into the space provided in the kitchen unit; it may be fitted under- neath a work top or into an upright cupboard. Fix the oven into position by screwing into place, using the two fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. -
Page 9: Oven Controls & Functions
OVEN CONTROLS & FUNCTIONS Cooking Functions Temperature Control Increase Control Decrease Control Time Function Symbol Function Oven Lamp: Observe cooking progress in the oven through the oven window without opening over door. Oven Lamp can be used with all cooking functions. Defrost: The circulation of air at room temperature enables quicker thawing of frozen food, without the use of any heat. -
Page 10: Releasing And Recessing The Control Knobs
OVEN CONTROLS & FUNCTIONS Releasing and Recessing the Control Knobs The control knobs for Cooking Functions and Temperature Control can be recessed into the panel. When you need to use them, press the control knob inward and release (See below diagram). To recess the control knob, press inward again. CONTROL KNOB (RECESSED) CONTROL KNOB (RELEASED) PRESS CONTROL KNOB INWARD... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS When the oven is first connected to the electrical supply, wait for the display to · automatically show “ 12 30 “; there will be a single audible beeping sound, and the “ 12 “ · and “ “... - Page 12 OPERATING INSTRUCTIONS Audible Warning Time Adjustment This function can be used to receive audible alerts at the end of the adjusted time period. · 1.) Press “ “ Button to select the Minute Minder function. The Symbols “ “ “ “...
- Page 13 OPERATION INSTRUCTIONS Full-Automatic Programming This function is used to cook after a certain period of time, for a set amount of time. Food is placed into the oven, and a Cooking Function and Oven Temperature is selected. 1.) Press “ “...
-
Page 14: Accessories
ACCESSORIES Wire Shelf For broiler, dishes, cake pan with items for roasting and broiling. Slider Bracket For cooking larger portions of food, these shelf support rails on the right and left sides of the oven can be re- moved, dishes and tray can be put on the oven floor, using functions as Radiant Broiling, Double Broiler, Double Grill with Fan. -
Page 15: Shelf Placement Warning
ACCESSORIES Shelf Placement Warning To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is important. Shelves and the pan can only be used between the first and fifth layers. The shelves must be installed on the rails in the correct direction, as this will ensure that during careful removal of the shelf or tray, hot food items will maintain proper balance. -
Page 16: Installation
INSTALLATION Securing the Oven to the Cabinet 1.) Fit oven into cabinet recess. 2.) Open the oven door. 3.) Secure the oven to the kitchen cabinet with two distance holders “ A “, which fit holes in the oven frame and fit the two screws, “... -
Page 17: Wire Branch Circuit Diagrams
INSTALLATION Wire Branch Circuit Ungrounded Neutral Refer to Figure 1: Cable from • Disconnect ground from neutral at free end power supply Junction box of conduit. White wires • Connect the green GROUND wire from the Red wires oven to the GROUND wire in the junction box (bare or green colored wire). -
Page 18: Oven Dimension Diagrams
INSTALLATION DIMENSION DIAGRAM 22.04" 23.42" 21.85" OVEN 0.78" 23.42" 3.14" CUTOUT 9.84" 23.62" 3.93" 22.44" min. 22.04" 23.85" NOTES • Only plus deviations are admissible for all dimensions. • The cabinet does not include the power switch or socket. • The number of accessories included depends on the appliance model purchased. -
Page 19: Removing The Door From Oven
INSTALLATION Removing the Door from Oven Removable door allows full access to entire interior of the oven for easier and quicker maintenance. 1.) To remove the door, open the door to the maximum angle. Then pull the buckle at the door hinge backward (Figure 1). -
Page 20: Cleaning & Maintenance
CLEANING & MAINTENANCE To maintain the appliance's appearance and reliability, keep the unit clean. The modern design of the unit allows for simple cleaning and maintenance. The parts of the unit which come into contact with food must be cleaned regularly. •... -
Page 21: Product Specifications
PRODUCT SPECIFICATIONS Model: C51EIX 120 / 240 V & 120 / 208 V Rated Voltage: 50 - 60 Hz Rated Frequency: Rated Output Power: 3250 W & 2450 W 25 Watt Oven Lamp: Temperature Range: 122 - 482 °F / 50 - 250 °C Product Dimensions (WxDxH): 23.4 (W) x 22.6 (D) x 23.4 (H) Product Capacity:... -
Page 22: Warranty & Service
WARRANTY AND SERVICE For full warranty details on this product please visit: http://www.cosmoappliances.com/warranty TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED. TO REGISTER, VISIT: WWW.COSMOAPPLIANCES.COM/WARRANTY SCAN TO REGISTER... - Page 23 REQUIRED FOR WARRANTY SERVICE IMPORTANT Ne pas Réexpédier ce Produit au Magasin Pour tout problème concernant ce produit, veuillez contacter le service des consommateurs Cosmo Customer Support au +1(888) 784-3108 UNE PREUVE D’ A CHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
- Page 24 NOTE:...
- Page 25 Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
