R1 Models (EN54-24)

Installation and Operation Guide

FEATURES

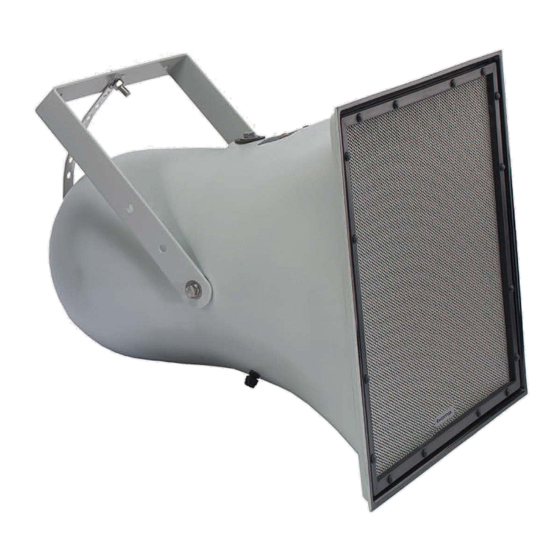

• Two-way coaxial full-range horn-loaded systems that

excel at both voice projection and full-range, high-

fidelity music reproduction

• Drivers: 1" exit, titanium compression HF driver and

two 12" FerroFluid-cooled LF with water-resistant

cones

• Highly weather-resistant fiberglass enclosure

CONTENTS

Each shipping carton contains the following items:

• R1-EN loudspeaker

• Steel mounting yoke

• Multi-angle aiming strap

• QR sheet - with QR link to installation manual

• Loudspeaker Safety Guide

9300 S.W. Gemini Drive Beaverton, OR 97008 USA

Connecting people through extraordinary audiovisual experiences™

• Application-specific coverage patterns

• Easy to install and aim with included yoke and strap

• 3-layer grille with polyester mesh and UV-resistant

foam, bonded to zinc-rich epoxy dual-layer powder-

coated perforated marine-grade aluminum

• Mounting hardware: 1/2"-13 hex bolts (2" x 5), 1/2"

lock washers (x 5), 1/2" flat washers (x 5), and 2" OD

rubber gaskets (x5), 8-32 x 2" hex bolt (x1), #8 flat

washers (x2), 8-32 lock nut (x1). All hardware is

stainless steel. The 1/2" hardware is pre-installed in

the loudspeaker enclosure.

Models

R1-64Z-EN

R1-66Z-EN

R1-94Z-EN

biamp.com

Need help?

Do you have a question about the R1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Biamp R1 Series

Page 1 (x2), 8-32 lock nut (x1). All hardware is stainless steel. The 1/2" hardware is pre-installed in • QR sheet - with QR link to installation manual the loudspeaker enclosure. • Loudspeaker Safety Guide 9300 S.W. Gemini Drive Beaverton, OR 97008 USA biamp.com...
Page 2 Biamp Systems, LLC 9300 SW Gemini Drive • Beaverton, OR 97008, USA biamp.com Technical data sheets for listed products can be found at the end of this manual. Contact the Compliance department at Biamp for the Declaration of Performance (R-126-002). compliance@biamp.com...
Page 3 PRODUCT FEATURES IDENTIFICATION Typical R1 Full-range Model Safety Cable Attachment Point: (Utilize empty rigging point. User must supply appropriate fastener and safety cable) Grille Model Label (pre-installed) Yoke 1/2"-13 Rigging points (total 5) Horn 1/2"-13 Rigging point 16-2 SJOW Cable Gland Nut Side Angle Securing Strap...
Page 4 DANGER: The loudspeakers described in this • The loudspeaker itself: Biamp certifies its loudspeaker manual are designed and intended to be suspended systems and rigging accessories for suspension when using a variety of rigging hardware, means, and they are properly installed according to our published methods.
Page 5 The latest version of the yoke is to be attached. this manual is always available at biamp.com. The revision date can be found on the rear cover. 3. Position the loudspeaker within the yoke making sure that the large rubber washers sit between the yoke and WARNING: Loudspeakers are heavy.
Page 6 INSTALLATION (CONTINUED) 4. Mount the R1 and its attached yoke to the structure that will support it. If the center hole on the yoke crossbar is used as one of the yoke mounting points you need to attach the Securing Strap to this hole at the same time you mount the yoke to the structure.
Page 7 R SERIES loudspeaker lies solely with the installation 2. Attach a safety cable to an attachment point on each professional. Biamp recommends that an appropriately loudspeaker. The safety cable and hardware are not licensed engineer, electrician, or other qualified included.
Page 8 Power amplifiers should exhibit good sonic properties while providing high the Biamp website for the recommended high and low pass reliability to keep the system functioning properly. filter values. Attempts to reproduce significant levels below...
Page 9 COMMISSIONING THE SYSTEM Commissioning is the process of optimizing the performance of a sound system after it has been installed. There are several important steps in commissioning a system; these include the following: 3. Set protective limiters and high-pass filters. 1.
Page 10 Customer Support at support@biamp.com. • When handling an R SERIES loudspeaker, be careful not to scratch or scrape the finish on the grille, bracket, or enclosure.
Page 11 The driver may then be unbolted from the HF horn. The part number will depend upon the R1 model. Contact support for information. support@biamp.com To reinstall, reverse this procedure, ensuring proper 12 in. LF Driver orientation of the horn. Be careful to avoid damaging the...
Page 12 R1 AXES AND PLANES R1-64Z-EN, R1-66Z-EN, R1-94Z-EN 1. Loudspeaker Enclosure 2. Loudspeaker Front 3. Reference Axis 4. Reference Plane 5. Reference Point 6. Horizontal Plane 7. Vertical Plane page 12 Installation and Operation Guide R1-EN...
Page 13 TECHNICAL DRAWINGS Typical R1 Coaxial Loudspeaker 7.0" (178 mm) 7.0" 1.75" Yoke (178 mm) (44 mm) 0.25" (6 mm) 18.0" (457 mm) 3.5" (89 mm) 3.5" (89 mm) 1.25" (32 mm) 17.0" 1.18" (432 mm) (30 mm) 13.75" 2.36" (60 mm) (349 mm) 0.53"...
Page 14 Accessories (included) Weather-resistant mounting yoke, light grey (RAL 7038) Biamp strives to improve its products on a continual basis. Specifications are therefore subject to change without notice. NOTES: All measurements made in outdoor half-space free-field conditions. Watts: All wattage figures are calculated using the rated nominal impedance.
Page 15 Typ 9 Places R1 Yoke 24.75" 29.75" (629 mm) (756 mm) 13.75" (349 mm) 24.75" (629 mm) Side Front R1-EN Installation and Operation Guide page 15 9300 S.W. Gemini Drive Beaverton, OR 97008 USA +1 503.641.7287 www.biamp.com R1-64Z v 7.0 [26AUG2022]...
Page 16 Accessories (included) Weather-resistant mounting yoke, light grey (RAL 7038) Biamp strives to improve its products on a continual basis. NOTES: All measurements made in outdoor half-space free-field conditions. Specifications are therefore subject to change without notice. Watts: All wattage figures are calculated using the rated nominal impedance.
Page 17 Typ 9 Places R1 Yoke 24.75" 29.75" (629 mm) (756 mm) 13.75" (349 mm) 24.75" (629 mm) Side Front R1-EN Installation and Operation Guide page 17 9300 S.W. Gemini Drive Beaverton, OR 97008 USA +1 503.641.7287 www.biamp.com R1-66Z v 7.0 [26AUG2022]...
Page 18 Accessories (included) Weather-resistant mounting yoke, light grey (RAL 7038) Biamp strives to improve its products on a continual basis. Specifications are therefore subject to change without notice. NOTES: All measurements made in outdoor half-space free-field conditions. Watts: All wattage figures are calculated using the rated nominal impedance.
Page 19 Typ 9 Places R1 Yoke 24.75" 29.75" (629 mm) (756 mm) 13.75" (349 mm) 24.75" (629 mm) Side Front R1-EN Installation and Operation Guide page 19 9300 S.W. Gemini Drive Beaverton, OR 97008 USA +1 503.641.7287 www.biamp.com R1-94Z v 7.0 [26AUG2022]...
Page 20 Using a sine wave oscillator or wide range program at moderate levels, (buzzes or rattles). malfunctioning. listen to each driver to isolate the problem. Repair or replace as needed. CONTACT US Email: support@biamp.com Warranty: biamp.com/legal/warranty-information Web: support.biamp.com Safety & Compliance: biamp.com/compliance...
