https://wiki.teltonika-gps.com/view/FM6320_First_Start
FM6320 First Start
Main Page
>
EOL Products

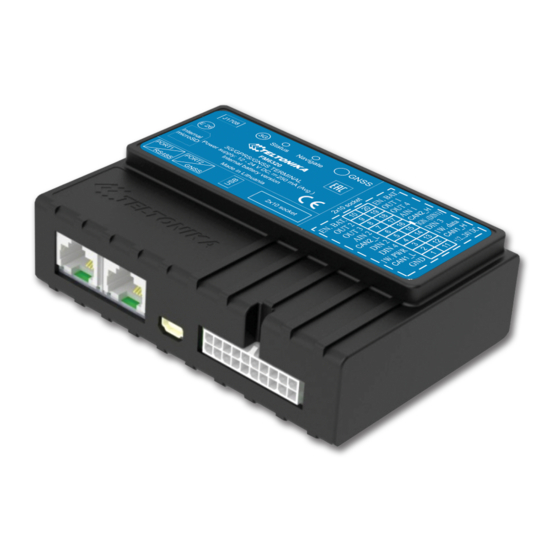

FM6320 GNSS/GSM terminal with GNSS/GSM antennas and Ni-MH battery
Quick Start Guide

How to insert micro SIM card into FM6320

1.
Remove FM6320 cover.
2.
Insert SIM card as shown. SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.
3.
Attach cover.
4.
Device is ready to be connected.

How to insert SD card into FM6320

1.
Push microSD card lock case.
2.
Open microSD card locker.
3.
Correctly insert microSD card into slot.
4.
Close microSD card locker.
5.
Push microSD card lock case to locked position.

2x10 socket pinout

>
FM6320
> FM6320 First Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM6320 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika FM6320

Summary of Contents for Teltonika FM6320

  • Page 1 EOL Products > FM6320 > FM6320 First Start FM6320 GNSS/GSM terminal with GNSS/GSM antennas and Ni-MH battery Quick Start Guide How to insert micro SIM card into FM6320 Remove FM6320 cover. Insert SIM card as shown. SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.
  • Page 2 How to install FM6320 drivers (Windows) 1. Please download Virtual COM port drivers from Teltonika website: https://drive.teltonika.lt/f/c784c30eb9684f749445/?dl=1. 2. Extract and run vcpdriver_v1.3.1_setup.exe. This driver is used to detect FM6320 device when it is connected to the computer. 3. Click Next in driver installation window.
  • Page 3 GSM operator's information. If device GSM is unavailable, the device will not be able to send the data and FM6320 will start storing records to flash memory. It is possible to store up to 192000 data records with 128 MB SD memory card (when 100 MB are used to store records).
  • Page 4 GND vehicle computer. Connecting the GND at an arbitrary point to the mass of the car is unacceptable, as static and dynamic potentials on the line GND will be unpredictable, which can lead to unstable FM6320 operation and even its failure.
  • Page 5 The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 60950-1 standard. The device FM6320 is not designed as a navigational device for boats. Precautions Do not disassemble the device.
