https://wiki.teltonika-gps.com/view/Testing_TCP_link_mode_with_RS232_and_RS485
Testing TCP link mode with RS232 and
RS485
Main Page
>
E-Mobility Trackers
Contents

1 Understanding what is RS232/RS485 TCP Link mode

2 Setting parameters in configurator for TCP Ascii mode test

2.1 Message Timestamp

Understanding what is RS232/RS485 TCP Link mode

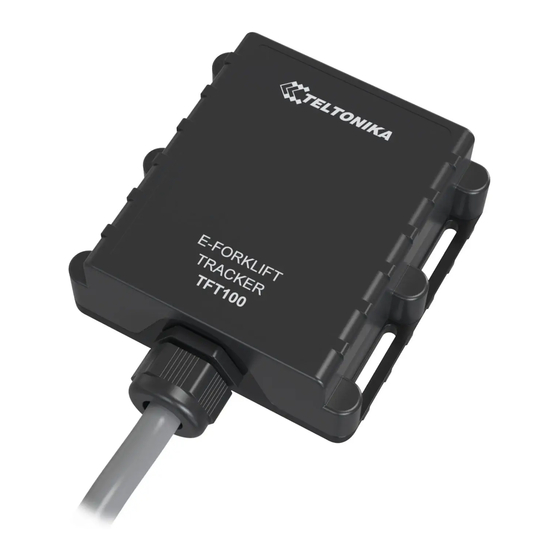

In this mode link with external device (for example PC) using text messages can be established.
TFT100 has to be connected to the external device through RS232 or RS485. Any string of data
coming to RS232 or RS485 will be routed to server (if link is currently active). Messages that are
exchanged between the device and server, have to be packed in Codec.12 format. Here for TCP link
establishment we will be using Hercules. For sending messages from external device to server over
the TFT100 Terminal will be used.
Setting parameters in configurator for TCP Ascii mode test
First of all, in the TFT100 configurator you have to set parameters for RS232 or RS485 (depends on
which RS232 or RS485 port you are using) in global parameters window.
Here in RS232 settings section Baudrate can be chosen to any available. Mode has to be chosen to
TCP Ascii.
Message Timestamp
Message Timestamp parameter is used to determine if it is necessary to include timestamp in RS232
TCP packet when sending to server. If parameter is Enabled, then Codec 13 is used for data sending.
Otherwise, Codec 12 is used.
You can also use RS485 which is also suitable for Ascii TCP Link mode. In order to make a link
between the device and server, Domain and Target Server Port have to be set in the working device
profile, GPRS data sending Settings section. When right parameters are set, you can save the
configuration to the device.
>
TFT100
>
TFT100 FAQ
> Testing TCP link mode with RS232 and RS485
