Instructions
8 | © Danfoss | 2016.05
PCVD, PCVSAD

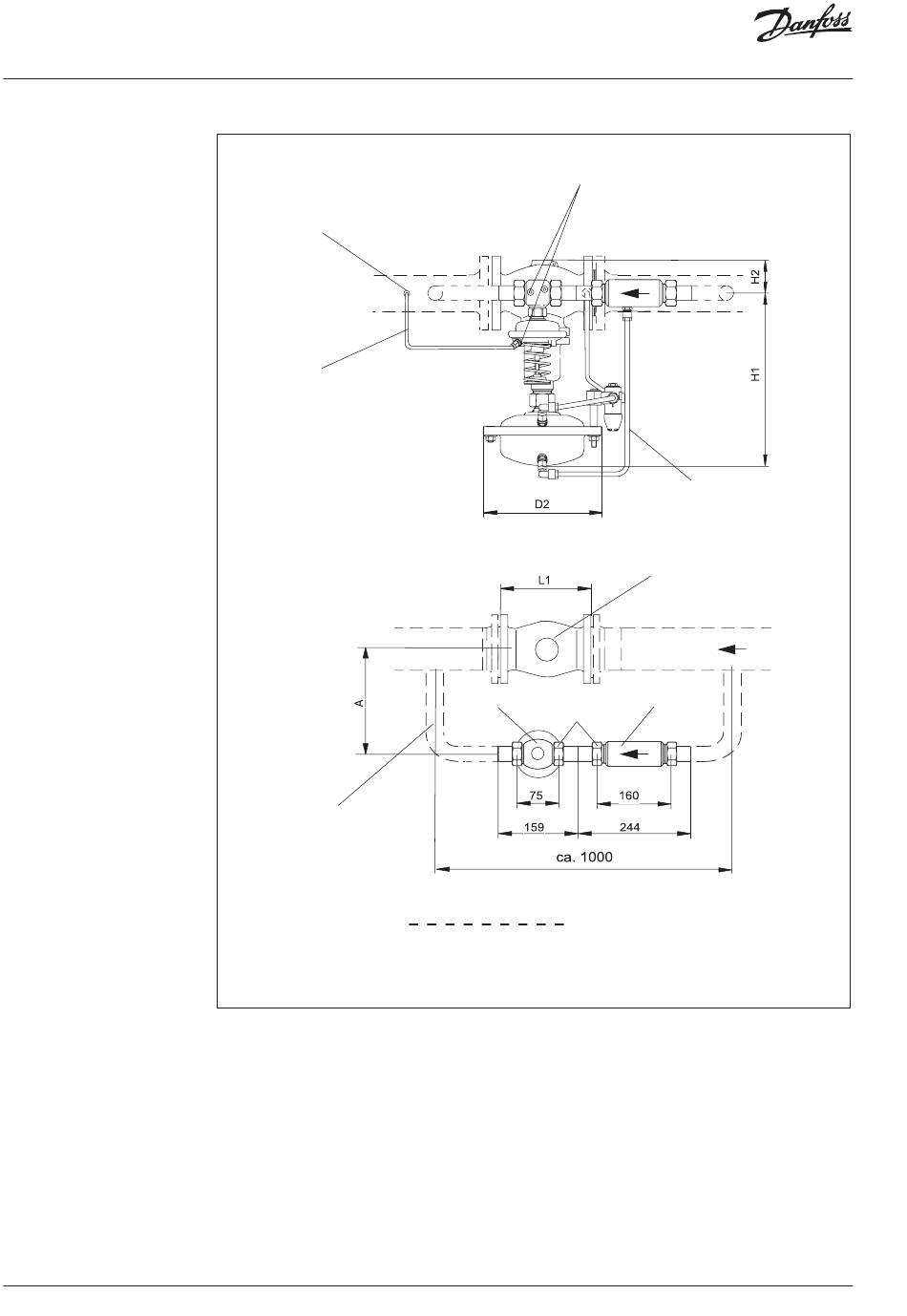

6.7 Assembly Drawings, Dimensions

Install impulse tubes
laterally because of dirt
Cu pipe Ø 6 × 1,
when laying,
use the assembly kit
order No. 003G1599
DN 25: pipe Ø 33,7 × 3,2
Material: ST 35.8
(not part of the delivery)
DN 100-125
Dismount impulse tube
- Unscrew threaded fittings at the
valve and at the actuator
- Close opening at the valve
with a stopper (see assembly kit
order No. 003G1599)
Pilot controller AVD Throttling element
DN 25 SW 50
these parts are
not in the scope of delivery
Cu pipe Ø 10 × 1
Lay when assembling.
Valve unit PCV - VFG 2
VI.JA.C3.5B
