Mounting
2.3.6 Supporting probes against warping
For GL/ABS approval:
Rod probes ∅ 16 mm ≤ 1 m permissible, rod probes ∅ 6 mm not permissible.

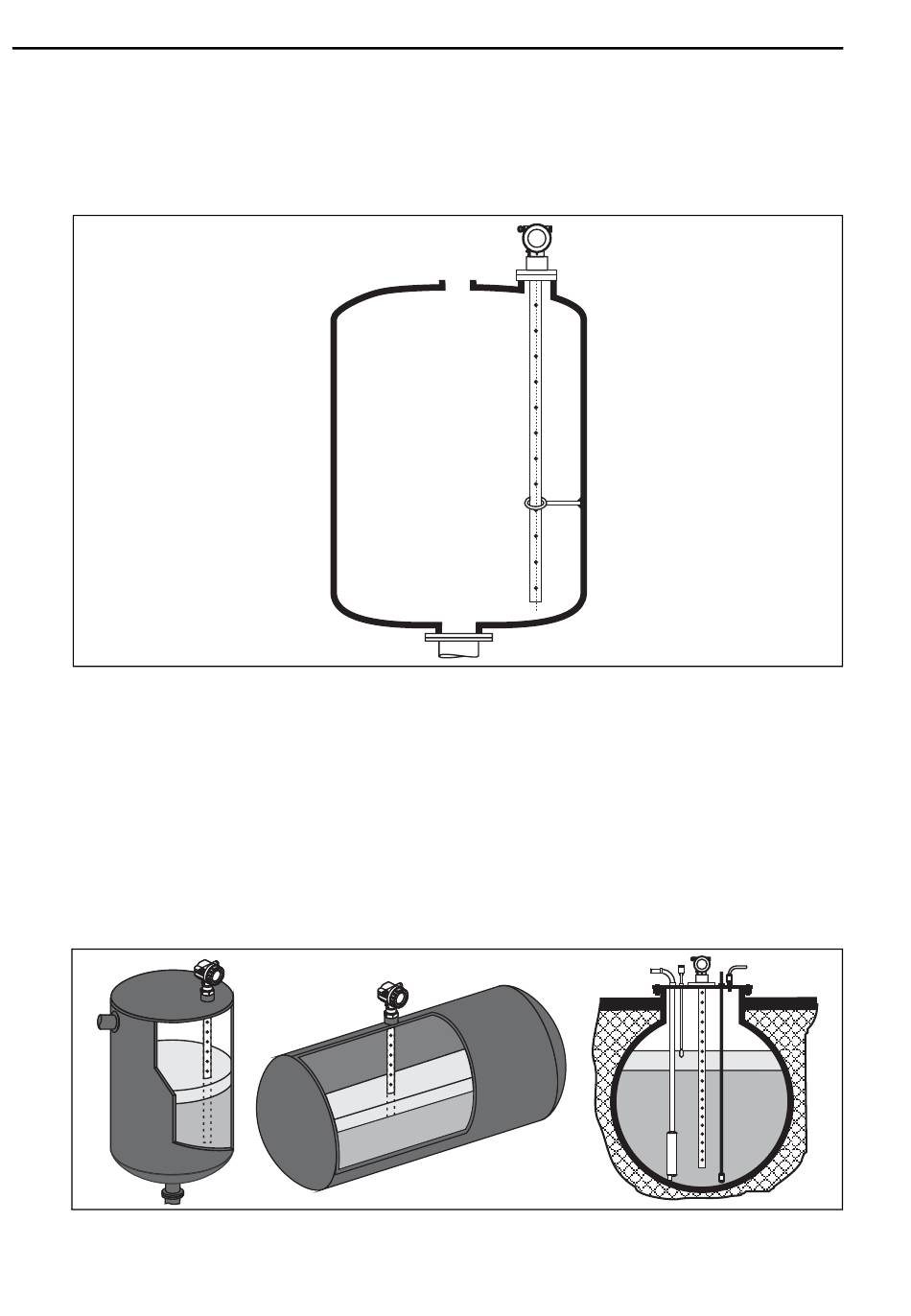

A support is required for coax probe ≥ 1 m (see drawing).
2.3.7 Special information on interface measurement
Installation in horizontal cylindrical, upright and underground tanks
• Use coax probes or rod probes in the bypass/stilling well. A segmented probe is available as a
special version for longer measuring ranges.
• Any distance from the wall is possible for coax probes or rod probes in the stilling well. In the
case of rod probes, it must be ensured that the probe does not come into contact with the wall.
8
Levelflex M FMP40 4...20 mA HART
L00-FMP4xIxx-17-00-00-xx-004
L00-FMP4xIxx-17-00-00-xx-002.eps
