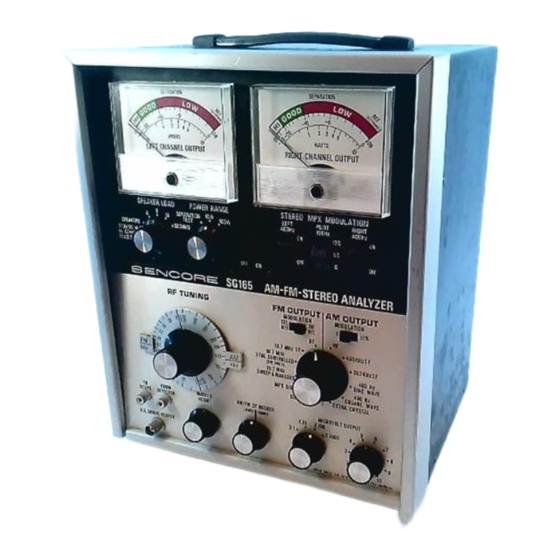

SG165 SETTINGS
Function
Speakerload
Power Range
Left and Right
400 Hz
Pilot 19 KHz
FM Modulation
AM Modulation
RF Tuning
Marker Height
AM/FM IF Rocker
Microvolt Output
Microvolt Output
Adjustment
EQUIPMENT NEEDED
Scope
Frequency Counter
RF Voltmeter
POWER SUPPLY
1.
Measure voltage on positive lead of C105.
2.
Adjust R113 for a negative voltage of equal value as measured at the negative lead of
400 HZ SINE WAVE
1.
Connect scope to "all signal output" of SG165.
2.
Adjust R375 for frequency of 400 Hz.
3.
Level should be about 30 VPP with direct lead.
4.
Switch to 400 Hz square wave.
5.
Signal should be of same frequency and amplitude as sine wave.
SG165 CALIBRATION PROCEDURE
-
400 Hz Sine Wave
-
Speakers
-
Separation Test
-
Off
-
0
-
IHF MPX
-
0
-
Fully CCW
-
Mid-scale
-
Mid-scale
-
X1000
-
Fully CW
-
SC61
-
FC71
-
Boonton
1
C106.
