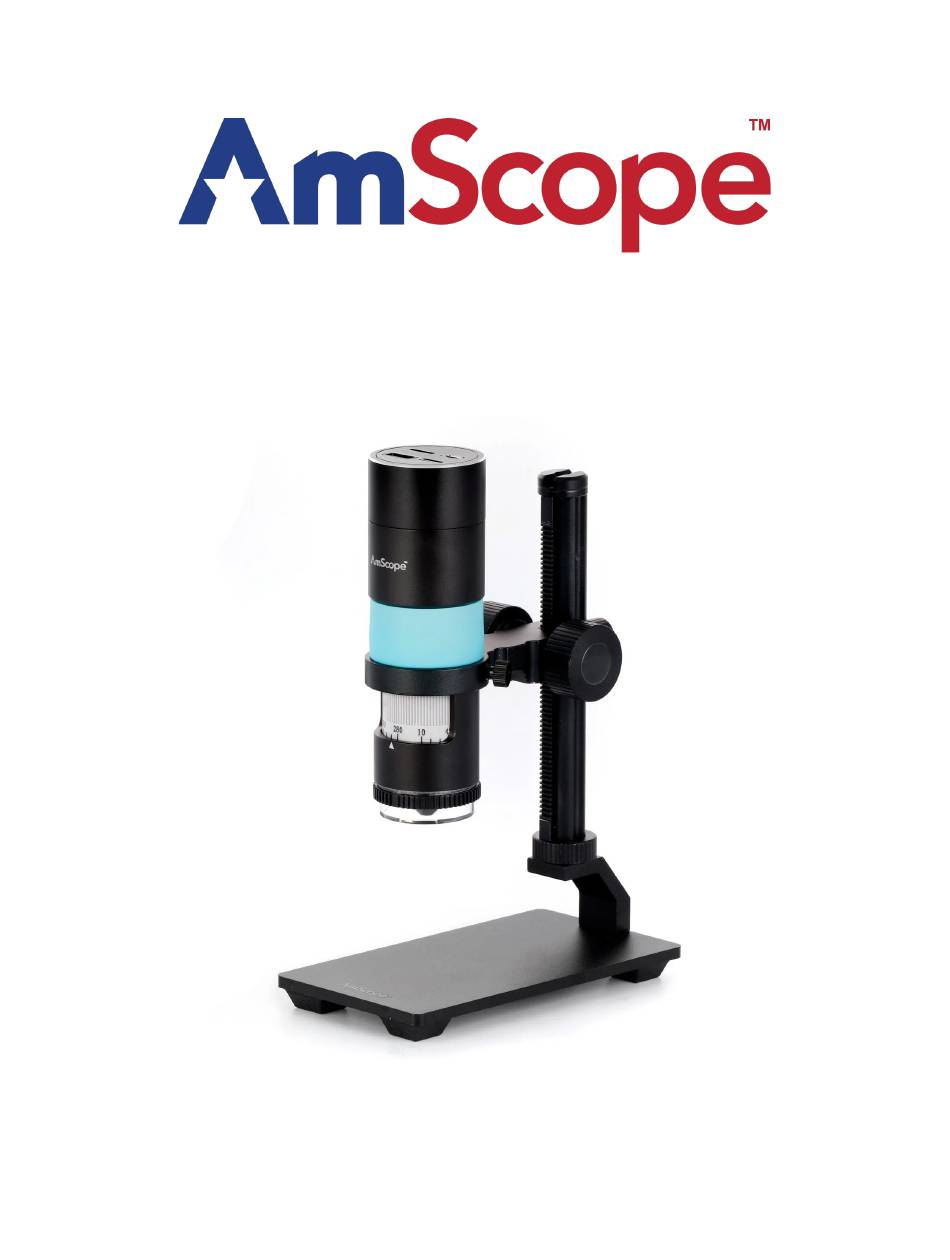

HHD2100HD-P Handheld Digital Microscope
Introduction
This manual applies to the HHD2100HD-P digital microscope. The information in this manual is provided to help you
familiarize yourself with the assembly and use of the product. Please read thoroughly before using the products, and
keep this manual with the product for reference.
v1.0.202308
Advertisement
Table of Contents
Related Manuals for AmScope HHD2100HD-P
Summary of Contents for AmScope HHD2100HD-P
- Page 1 HHD2100HD-P Handheld Digital Microscope Introduction This manual applies to the HHD2100HD-P digital microscope. The information in this manual is provided to help you familiarize yourself with the assembly and use of the product. Please read thoroughly before using the products, and keep this manual with the product for reference.
- Page 2 Windows is a trademark of Microsoft Corporation. Mac OS (macOS) is a trademark of Apple Inc., and iOS is a trademark owned by Cisco and leased by Apple Inc.. Linux is a trademark of Linus Torvalds. Android is a trademark of Google LLC. AmScope is a trademark...
-
Page 3: Table Of Contents
General Information ............................... 8 Zoom Wheel ..................................8 LED Ring Light ..................................9 Using Support Systems ..............................10 Quick Start Guide ..............................11 AmScope Imaging Software ............................11 Setup .................................... 11 HDMI ..................................12 User Interface................................... 12 The Camera Control Panel ............................... 13 Image Exposure ................................ -
Page 4: Specifications
H H D 2 1 0 0 H D - P Us e r Gu id e HHD2100HD-P 1. Image Snap Button 2. Video Record Button 3. Hand Grip 4. Zoom Wheel 5. Polarization Wheel 6. HDMI Port 7. USB Mouse Port 8. -
Page 5: Model Specifications
H H D 2 1 0 0 H D - P Us e r Gu id e Model Specifications Model HHD2100P-HD Zoom Magnification 0.1X-3.3X Sensor IMX307 (color) Sensor Type CMOS Sensor Optical Format 1/2.8” Integrated Reduction 0.5X Active Pixels 2M (1920 x 1080) Pixel Size 2.9µm x 2.9µm Active Sensor Area... -
Page 6: Interface Specifications
H HD 2 1 0 0 H D- P U ser Guid e Interface Specifications Port Layout HDMI Port Complies with HDMI1.4 standard, 1080P format video output for standard FHD monitor USB Mouse Connect the included USB Wireless mouse for easy operation with embedded XCamView software Power Output 12V/1A... -
Page 7: Field Of View And Working Distances
H HD 2 1 0 0 H D- P U ser Guid e HHD2100HD-P Magnifications, Working Distances, and Fields of View System Magnification Digital microscopes often present smaller fields-of-view when compared to optical microscopes with equivalent magnifications. This is due to the digital microscope’s image sensor. The dimensions of the sensor determine the field-of- view much like the aperture of an eyepiece (usually printed on the eyepiece as its field number). -
Page 8: General Information
H HD 2 1 0 0 H D- P U ser Guid e Zoom Wheel Zoom Wheel The zoom wheel controls the magnification of the microscope by adjusting the internal zoom mechanism. The wheel can be rotated in a continuous movement until either terminus has been reached. By rotating the wheel to the right, the magnification will decrease until it reaches 0.1X. -
Page 9: Led Ring Light
H HD 2 1 0 0 H D- P U ser Guid e 8 LED Illuminator The ring-light’s intensity can only be controlled via the built-in software. -
Page 10: Using Support Systems
H HD 2 1 0 0 H D- P U ser Guid e Using Support Systems The HHD2100HD-P is designed for use with a variety of support systems, including those typically used with stereo microscopes such as table stands, boom-arm stands, and articulating stands. Due to the HHD2100HD-P’s high magnifica-... -
Page 11: Quick Start Guide
AmScope Imaging Software AmScope imaging software for Windows, Mac OS, and Linux is used to capture and edit images generated by the microscope. While the microscope may work with 3rd-party UVC-compatible software, it is recommended to use the provided software to ensure full functionality. -
Page 12: Hdmi
H HD 2 1 0 0 H D- P U ser Guid e HDMI User Interface The HDMI model uses an on-screen UI to operate. The camera controls are located in the panel on the left side of the window, the measurement toolbar on the top, and additional display controls and settings are on the bottom. By default, the panels will only display when the mouse cursor is hovering over the appropriate area. -
Page 13: The Camera Control Panel
H HD 2 1 0 0 H D- P U ser Guid e The Camera Control Panel The Camera Control Panel controls the camera to achieve the best video or image quality according to the specific appli- cations. To open the panel, move the mouse cursor toward the left edge of the video window. Control Panel Function Description... -
Page 14: Image Exposure
H HD 2 1 0 0 H D- P U ser Guid e Image Exposure Manual Exposure Image exposure controls the amount of light captured by the imaging device. Exposure time is used to set the amount of time over which light is collected. More time will result in a brighter image. For most static subjects, increasing expo- sure time to achieve the appropriate brightness is the preferred method. -
Page 15: The Measurement Toolbar
H HD 2 1 0 0 H D- P U ser Guid e The Measurement Toolbar The Measurement Toolbar will pop up when moving the mouse cursor toward the upper edge of the video window. This panel contains tools and settings for performing measurements. Icon Function Pin the Measurement Toolbar... - Page 16 H HD 2 1 0 0 H D- P U ser Guid e Icon Function Two Circles with Distance from Centers Two 3-Point Circles with Distance from Centers Text Polygon Curve Scale Bar Arrow Perform magnification calibration. Defines relationship between the measurement unit and pixel size.
-
Page 17: The Camera Control Toolbar
H HD 2 1 0 0 H D- P U ser Guid e The Camera Control Toolbar The Camera Control Toolbar provides a subset of tools for controlling the camera’s video, as well as general settings and the file viewer. Icon Function Icon... -
Page 18: Magnification
H HD 2 1 0 0 H D- P U ser Guid e Magnification Magnification settings allow you to edit stored magnification calibrations. Each time the calibration process is completed, you can save the results as a magnification preset. These presets can be selected from the Measurement Toolbar to use the appropriate, calibrated settings. -
Page 19: Video
H HD 2 1 0 0 H D- P U ser Guid e Video Video settings allow you to change the fast-forward and reverse intervals, and to choose the video codec. Playback Fast Forward/Reverse The number of seconds to be skipped when fast-forwarding or reversing Interval playback of videos Video Encode... -
Page 20: Miscellaneous
H HD 2 1 0 0 H D- P U ser Guid e Miscellaneous Miscellaneous settings include additional helpful settings. Auto Exposure Set the maximum exposure time for the Auto Exposure mode. Setting a lower number can improve the frame rate. ROI Color Select the color of the Region of Interest (ROI) frame Camera Parameters...
