Konica Minolta EK-608 Installation Manual

Applied Machines: C368/C308/367/287/227
COLOR MFP: 36 ppm/30 ppm
MFP: 36 ppm/28 ppm/22 ppm
Product Code: A7PU/A7PY/A789/A7AH/A7AK

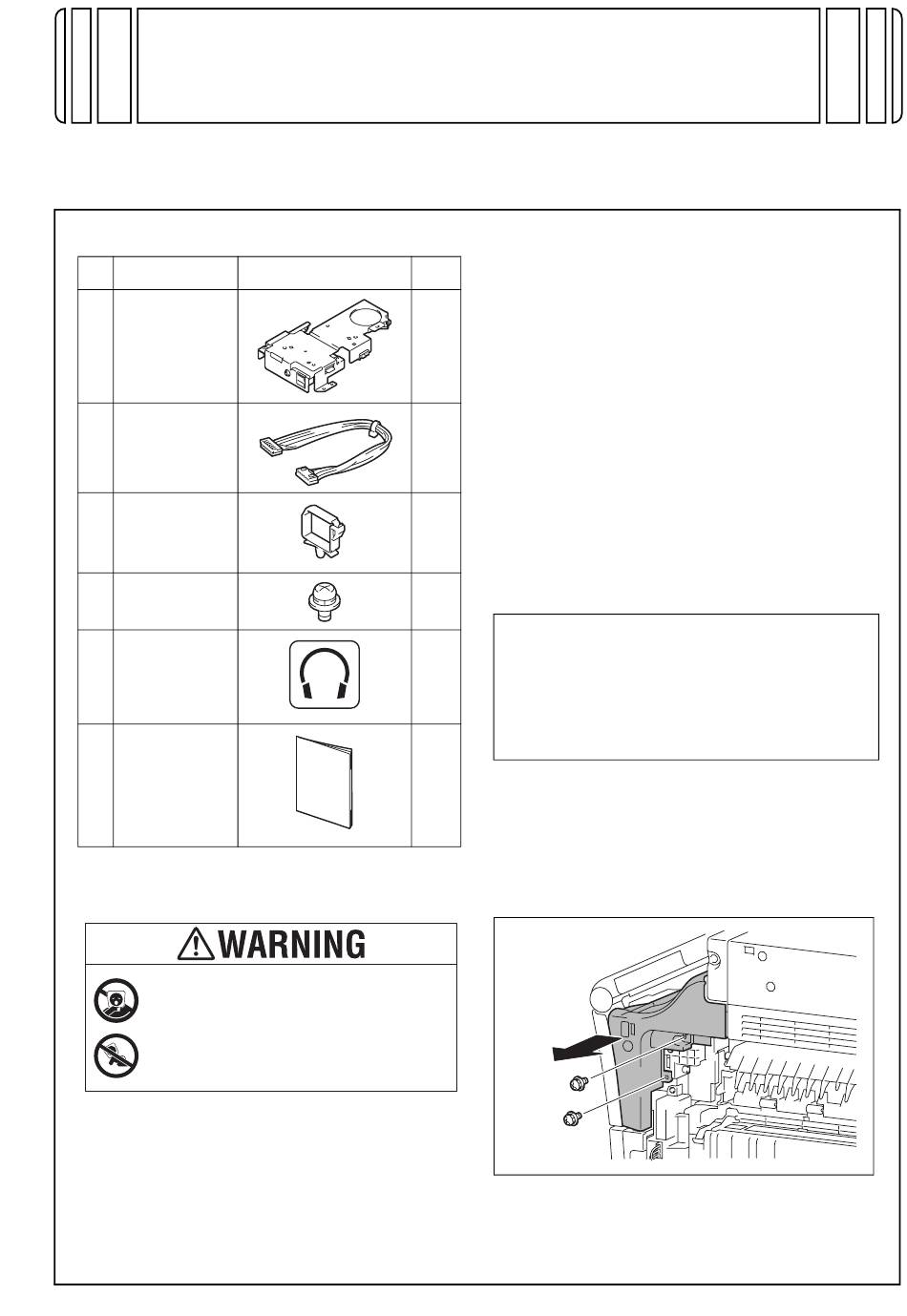

1. Accessory parts
No. Name

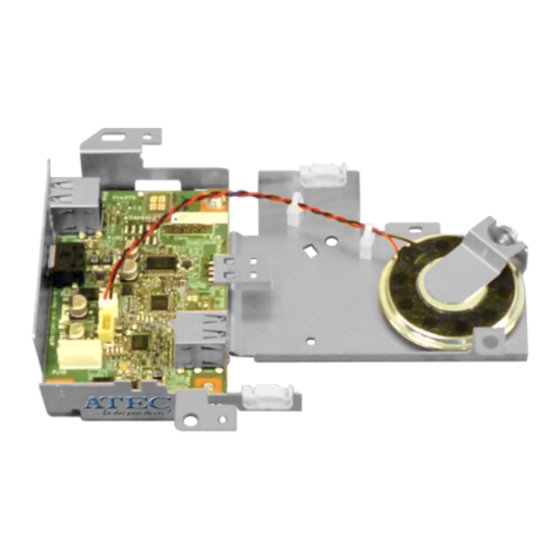

1. Local interface
board unit
2. Harness
3. Wire saddle *
4. Screw
5. Label
6. Installation
manual
* This part is used only when this option is
installed to 367/287/227.
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
EK-608
INSTALLATION MANUAL
Shape Q'ty
1
1
3
1
1
1 set
Local Interface Kit
Note:
• When installing the keyboard, connect its cable
to the USB port added to the machine.
• If none of the later steps instruct you to use the
parts including screw and cover that you
removed following the instructions described in
this manual, discard them.
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
2. Installation procedures
<Installations to models C368/C308>
Follow the installation procedures starting on page
E-1.
<Installations to models 367/287/227>
Follow the installation procedures starting on page
E-4.
<Installations to models C368/C308>
(1) Turn OFF the power switch and unplug the
power cord from the power outlet.
(2) Open the right door of the machine.
(3) Remove the control panel right cover.
(Two screws)
E-1
A88A-9550-00
