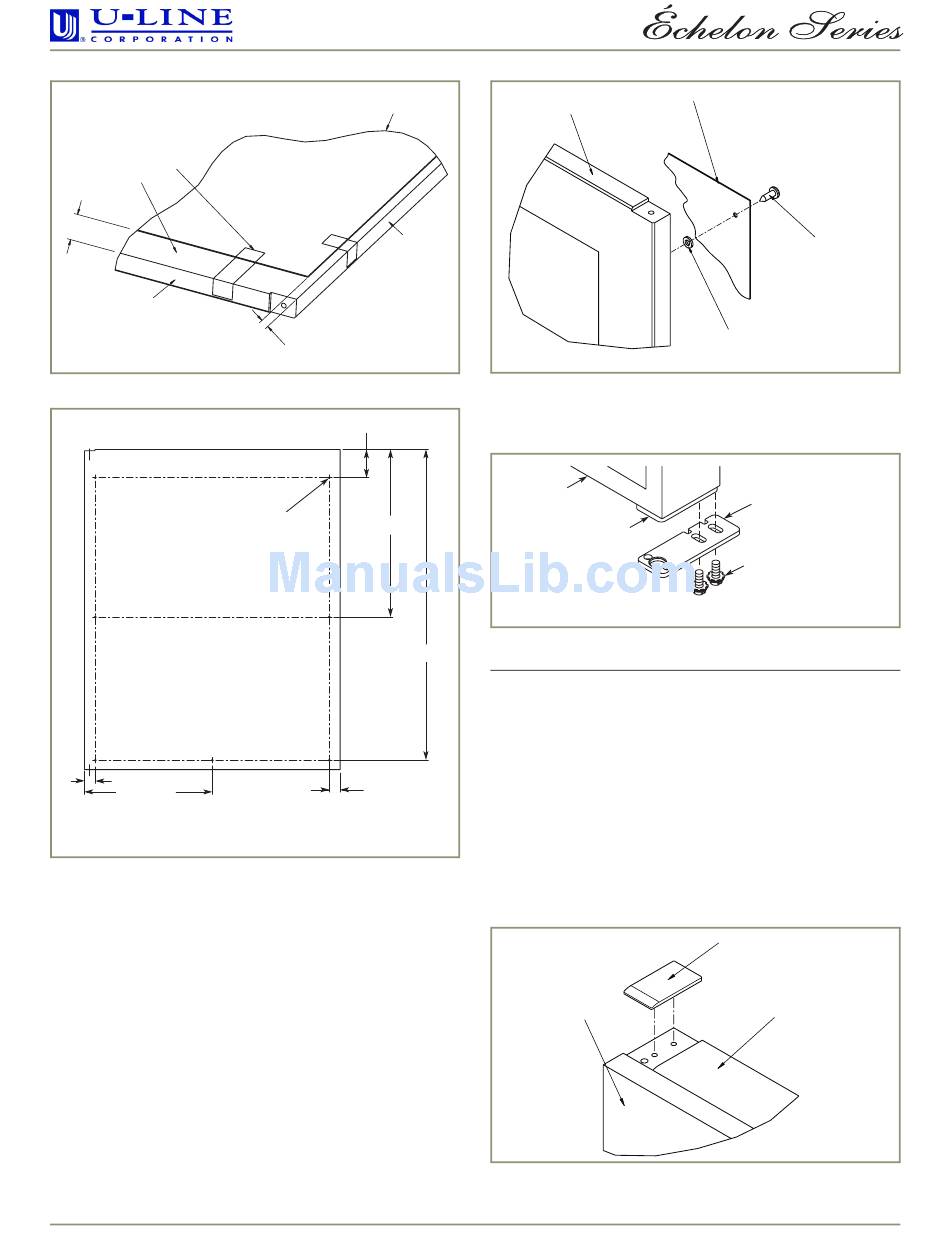

U-Line Echelon BI-2115 Installation Manual page 10

Tape
Back of
Wood
Panel
1-3/4" Top
Top of
Wood Panel
Figure 19
Drill ø 5/32" x 3/8" Deep
7 Places Model 2175
6 places Model 2115 and CLR2160
For use with #10 x 5/8"
Wood Screw and Nylon Spacer
1"
11-7/8±1/32
For use on
Model 2175 Only
Figure 20
3. Attach the door panel to the overlay panel using #10 x
5/8" wood screws and nylon spacers. The nylon spacers
fit between the overlay panel and the door panel as
shown in Figure 21. The spacers allow the original
door panel to slide back into the 1/4"-thick door
reveal (channel).
www.U-LineService.com
BI-2115 — Ice Maker
Removed
Door Panel
Side of
Wood Panel
3/8"
Both Sides
2-5/8" ± 1/4"
15-9/16" ± 1/4"
± 1/4"
28-7/8"
1"
ULIN_0402_A
Typical
Wood Panel
Figure 21
4. Remove the existing bottom pivot plate and replace
with the Full Overlay pivot plate (see Figure 22).
Existing
Door
Existing Bottom Pivot Plate
(Remove and Discard)
Figure 22
Door panel and overlay panel must be aligned properly or
the door will not operate correctly.
Assembling the Door
1. Install the assembled panel by sliding the original door
panel back into the doorframe.
2. Replace the Overlay Handle and secure with the two
screws removed in Step 4 under Removing Existing
Door.
3. Attach Overlay cap to door, opposite side of where
hinges will be (see Figure 23).
3/4" Wood Panel
Figure 23
10
Door Panel
#10 x 5/8"
Round Head Screw
Seven Required
Plastic Spacer
Seven Required
Wood Panel Bottom Pivot Plate
(5/8" Longer Than
Existing Bottom Pivot Plate,
Flush Side Facing Out)
#8-32 x 3/8" SEMS Hex Screw
Two Places
IMPORTANT
Overlay Cap
Replacement Handle
08/2006
