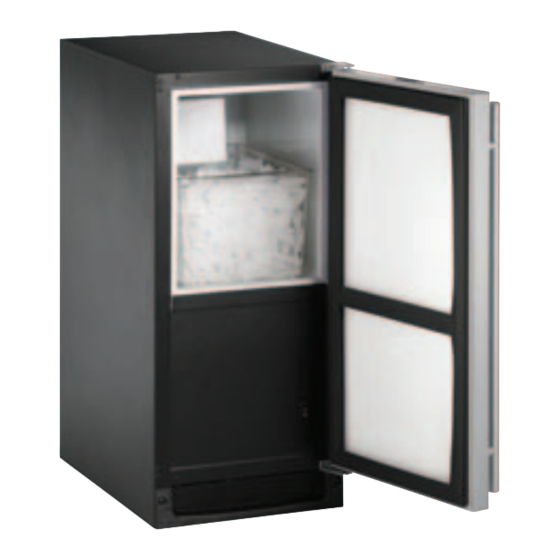

U-Line BI2115 Specifications

Bi2115
FEATURES
• Daily ice rate of up to 25 lbs of crescent ice
• Stores up to 25 lbs of ice
• uses less than 3 gallons of water to produce 25 lbs of ice, conserving both energy
and water
• uses less energy than a 75 watt light bulb
• Perfect size crescent ice cubes (1/2"w x 3/4"h x 2-1/2"l)
• Mechanical control monitors ice making operation to ensure maximum daily ice
production
• Manual defrost
• ul residential and commercial listings
• No drain required, easy and inexpensive to install and requires only a 1/4" outside
diameter water line
• Stainless model door must be ordered left or right hand hinged
• Black door model is field reversible
• Self-closing door ensures a positive door seal and prevents door bounce back
• Standard commercial stainless handle is interchangeable with professional handle
option for stainless steel model
• Vinyl clad textured cabinet is more resistant to scratching, peeling and flaking
• unit can be built-in or freestanding providing a custom aesthetic
• Black and white models will accept a 1/4" insert panel to match with surrounding
decor
• optional full 3/4" overlay panel on black and white models requires purchase of
overlay kit PN: u-ol2115
• allow a 2-1/2" clearance on hinged side for 90° door opening when installed
adjacent to a wall (for stainless steel model)
• With a 3/4" overlay panel installation, allow for a 130˚ door swing to ensure
removal of ice bin
• allow 1/4" width overall for proper installation (see back side for details)
• No additional clearance around sides, top or rear of unit is needed for ventilation
• Durable, factory installed leveling legs provide a more precise undercounter fit
• Do not obstruct front grille air flow
8900 North 55th Street Milwaukee, wiScoNSiN 53223 414.354.0300 Fax 414.354.7905 u-liNe.coM
Stainless
white
2000 S
e ri e S
No ice shortages here.
Produces up to 25 pounds
of crescent ice (1/2" w x
3/4" h 2-1/2" l) per day.
No drain required.
Black
overlay
