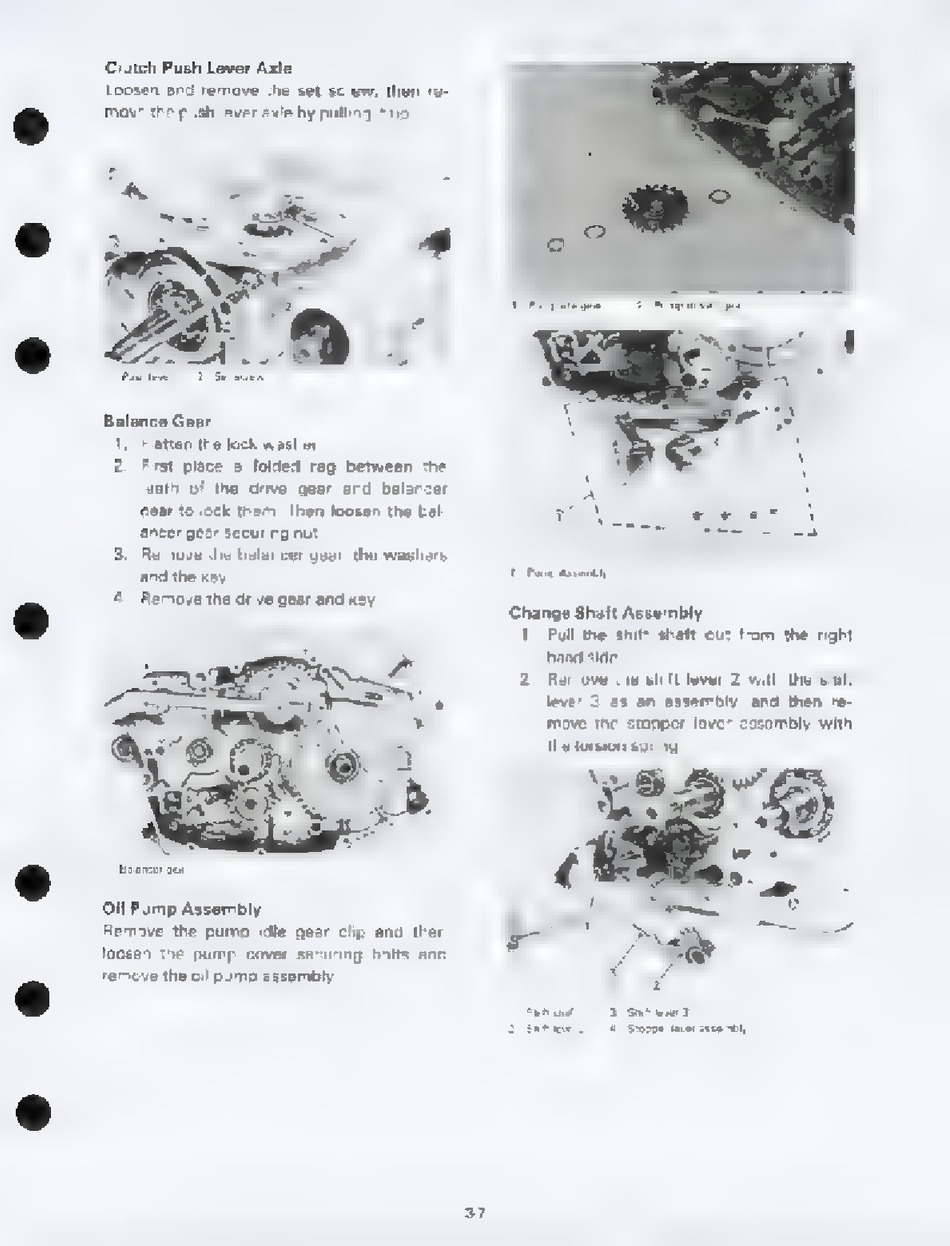

Clutch Push Lever Axle
Loosen snd remove che set screw, then 1
Move the push laver ele by pulling 1p
Balance Gear
1. Hatten the lock washer
2. First place a folded rag between che
wath of the drive gear ard bslancer
gear to lock them, Ihen loosen the tal
ancer geor securing nut
3. Remove the balancer
gear, the washors
and the key
4. Remove the drive gear and key.
vance gent
Oil Pump Assembly
Remave the pump idle gear clip and ther
laosen the pump caver securing halts ane
remeve
the oil pump
essembly,
1 Pang: Asvently
Changs
Shaft Assembly
1. Pull the shif: shatt cur fom the right
hand side.
2. Remove (ie wlift tover 2 will the shift
lever 3 2s an assembly, and then re-
move the stopper lover essembly with
the torsion spring
Shai
3 Stet ever3
4 Steape"taver 2869-0,
