物理農業機械股份有限公司
WULI AGRICULTURE MACHINE CO., LTD.
動力噴霧機、高壓洗淨機、微霧系統專業設計製造

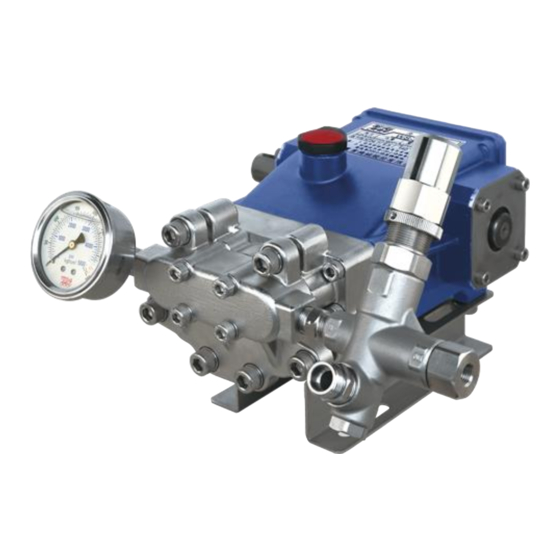

高壓泵浦操作手冊
HIGH PRESSURE PUMP
OPERATION MANUAL
感謝您購買物理產品，使用前請詳閱本說明。
Thank you for choosing our product.
Please read the manual before use
W
U
L
I
A
G
MODEL
WS-2024F1
WS-2030F1
R
I
C
U
L
T
U
.
R
E
M
A
C
H
I
N
E
C
O
.
2023.07V
,
L
T
D
.
Advertisement
Related Manuals for WULI WS-2024F1
Summary of Contents for WULI WS-2024F1
- Page 1 物理農業機械股份有限公司 WULI AGRICULTURE MACHINE CO., LTD. 動力噴霧機、高壓洗淨機、微霧系統專業設計製造 高壓泵浦操作手冊 HIGH PRESSURE PUMP OPERATION MANUAL MODEL WS-2024F1 WS-2030F1 感謝您購買物理產品，使用前請詳閱本說明。 Thank you for choosing our product. Please read the manual before use 2023.07V...
- Page 2 Do not operate the unit in the rain or during thunderstorms. When the unit is working, do not cover it or place it in a closed space with poor ventilation. 泵浦搭配馬達運轉，須注意電壓是否正確，並使用獨立電源，並加裝漏電開關。 Please check whether the voltage is correct and use GFCI plug. (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
- Page 3 外觀結構 Pump Overview 加油蓋 Oil Inlet Cover 壓力錶 Pressure Gauge 安全弁 迴水接頭 Safety Valve Overflow Coupling 出水口 Water Outlet 調壓螺帽 Pressure Regulating Knob 油鏡 Oil Window 進水口 Water Inlet 排油螺絲 Oil Drainage Screw (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
- Page 4 2. 初次使用 100 小時應更換機油，以後每使用 300 小時應更換一次。 3. 更換機油時，請旋開洩油螺絲排出骯髒的機油。 4. 將洩油螺絲鎖緊後，打開加油蓋注入#30~#40 之車輛用重型機油，機油應保持在 油鏡 2/3 的位置。 三、 特別注意事項 1. 使用自來水作為泵浦的水源。 2. 馬達電源線若要延長時，請依馬力值所需大小法規延長。 3. 確實的更換機油以保持泵浦的潤滑，降低機械損耗。 4. 泵浦與吸水網之高度差(揚程)請勿超過 1.3 公尺。 5. 水溫請勿超過攝氏 60 度。 6. 若使用的水源加入藥劑、肥皂或其他物質，請在使用完畢後以清水沖洗泵浦內部一 分鐘，以延長泵浦的使用壽命。 7. 泵浦的轉速/壓力不得超出建議轉速/壓力的最高值。 8. 請確定馬達/引擎的動力可以配合泵浦。 (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
- Page 5 3. Tighten the Oil Drainage Screw before refilling with clean motor oil SAE #30~#40 up to the level of 2/3 of the Oil Window. ※Attention: When replacing the oil, please turn off the product and make sure that the oil temperature has cooled before replacing. (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
- Page 6 7. The pump’s revolution and working pressure should not exceed the maximum suggested values. Please make sure the motor or engine power is suitable for the pump. (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
- Page 7 ◎泵浦吸入空氣 尺 ◎拔掉噴槍，待出水正常後再接上 運轉聲音異常 ◎引擎有問題 ◎清潔或維修引擎 ◎泵浦吸入空氣 ◎打開出水管排氣 ◎活門總成異物阻塞 ◎清潔活門總成 ◎吸水量不足 ◎檢查吸水管是否有細縫，或者扭曲 進氣及清潔吸水管過濾網 調壓問題或 ◎壓力閥或閥座磨損 ◎更換零件 壓力無法上升 ◎迫緊磨損 ◎更換零件 ◎活門塞與活門座沾黏 ◎拆解後清洗活門總成或更換零件 ◎閥座上有異物 ◎清潔閥座 ◎活門總成磨損 ◎更換零件 ◎活門總成異物阻塞 ◎清潔活門總成 ◎噴嘴磨損導致壓力下降 ◎更換噴嘴 ◎泵浦吸入空氣 ◎檢查吸水管接頭鎖合或吸水管破裂 ◎安全弁損壞 ◎送回經銷商更換 (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
- Page 8 WS-2024F1 WS-2030F1...
- Page 9 PISTON SCREW 軸承 B010710000 BEARING 6305 KOYO 曲軸油封 B010910040 CRANKSHAFT OIL SEAL 全密曲軸油封 07-1 B010923100 END COVER OIL SEAL 曲軸油封蓋 B011023000 CRANKSHAFT OIL SEAL COVER 全密曲軸油封蓋 08-1 B011023100 END COVER OIL SEAL COVER (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
- Page 10 活門帽 17-4 B040313000 VALVE CAGE 活門套 17-5 B040813001 VALVE CAGE O 形環 BG10210026040 O-RING 進水活門固定座 B021323801 INLET VALVE SEAT 汽缸前座 B020123800010 SUCTION CHAMBER 內六角螺絲 20-1 BS16210035300 HEX SCREW 彈簧華司 20-2 BS32210300 SPRING WASHER (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
-
Page 11: Pressure Gauge
SAFETY VALVE ASSY 迴水接頭 B062819310 OVERFLOW COUPLING 安全弁止水塞頭 B062719311 SAFETY VALVE PLUG O 形環 33-1 BG10138018620 O-RING 壓力錶 B031110035 PRESSURE GAUGE *31 零件表及展開圖請參閱第 12~13 頁。 *31 parts list & diagram please refer to page12~13. 2023.06V (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1... - Page 12 安全弁 展開圖 Safety Valve Diagram B060019321 (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
- Page 13 12 B062619316 VALVE SLEEVE O 形環 12-1 BG10160020040 O-RING 出水閥座套 13 B062619326 VALVE SEAT SLEEVE O 形環 13-1 BG10065012140 O-RING 止水彈簧 14 BJ71901315 SPRING 出水接頭 15 B060619316 OUTLET CONNECTOR O 形環 15-1 BG10198024640 O-RING (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
-
Page 14: Troubleshooting
◎ The water supply is not ◎ Check the suction hose and enough. fittings; make sure they are well connected and in good condition. ◎ Clean the suction filter. ** Continues on page 15 ** (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1... - Page 15 ◎ Check the Suction Hose and fittings; make sure they are well connected and in good condition. ◎ The Safety Valve is ◎ Return the product to your local damaged. dealer to repair or replace the Safety Valve. (2023.07V) 物理 WU LI ─ WS-2024F1, WS-2030F1...
