物理農業機械股份有限公司
WULI AGRICULTURE MACHINE CO., LTD.
動力噴霧機、高壓洗淨機、微霧系統專業設計製造
高壓泵浦操作手冊
HIGH PRESSURE PUMP OPERATION MANUAL
感謝您購買物理產品，使用前請詳閱本說明。
Thank you for choosing our product.
Please read the manual before use
W
U
L
I
A
G
MODEL
WH-2024F
WH-2030F
R
I
C
U
L
T
U
.
R
E
M
A
C
H
I
N
E
C
O
.
2022.03V
,
L
T
D
.
Advertisement
Related Manuals for WULI WH-2024F
Summary of Contents for WULI WH-2024F
- Page 1 物理農業機械股份有限公司 WULI AGRICULTURE MACHINE CO., LTD. 動力噴霧機、高壓洗淨機、微霧系統專業設計製造 高壓泵浦操作手冊 HIGH PRESSURE PUMP OPERATION MANUAL MODEL WH-2024F WH-2030F 感謝您購買物理產品，使用前請詳閱本說明。 Thank you for choosing our product. Please read the manual before use 2022.03V...
- Page 2 Do not operate the unit in the rain or during thunderstorms. When the unit is working, do not cover it or place it in a closed space with poor ventilation. 泵浦搭配馬達運轉，須注意電壓是否正確，並使用獨立電源，並加裝漏電開關。 Please check whether the voltage is correct and use GFCI plug. (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...

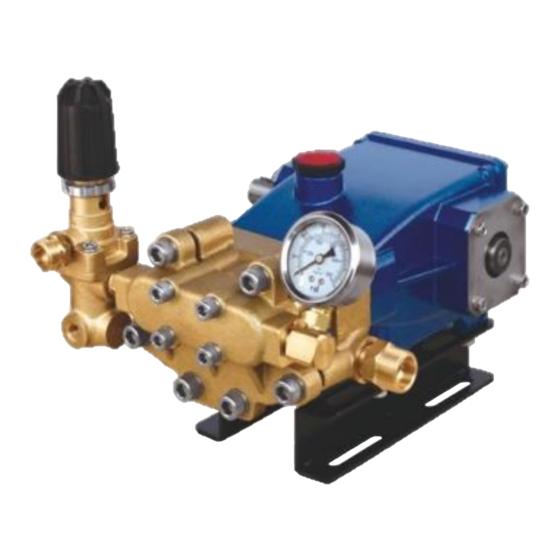

- Page 3 外觀結構 Pump Overview 加油蓋 Oil Inlet Cover 自動洩壓總成 Unloading Valve Assembly 迴水接頭 Overflow Coupling 出水口 Water Outlet 壓力錶 Pressure Gauge 調壓螺帽 Pressure Regulating Knob 油鏡 Oil Window 進水口 Water Inlet 排油螺絲 Oil Drainage Screw (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
- Page 4 2. 初次使用 100 小時應更換機油，以後每使用 300 小時應更換一次。 3. 更換機油時，請旋開洩油螺絲排出骯髒的機油。 4. 將洩油螺絲鎖緊後，打開加油蓋注入#30~#40 之車輛用重型機油，機油應保持在 油鏡 2/3 的位置。 三、 特別注意事項 1. 使用自來水作為泵浦的水源。 2. 馬達電源線若要延長時，請依馬力值所需大小法規延長。 3. 確實的更換機油以保持泵浦的潤滑，降低機械損耗。 4. 泵浦與吸水網之高度差(揚程)請勿超過 1.3 公尺。 5. 水溫請勿超過攝氏 60 度。 6. 若使用的水源加入藥劑、肥皂或其他物質，請在使用完畢後以清水沖洗泵浦內部 一分鐘，以延長泵浦的使用壽命。 7. 泵浦的轉速/壓力不得超出建議轉速/壓力的最高值。 8. 請確定馬達/引擎的動力可以配合泵浦。 (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
- Page 5 3. Tighten the Oil Drainage Screw before refilling with clean motor oil SAE #30~#40 up to the level of 2/3 of the Oil Window. ※Attention: When replacing the oil, please turn off the product and make sure that the oil temperature has cooled before replacing. (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
- Page 6 7. The pump’s revolution and working pressure should not exceed the maximum suggested values. Please make sure the motor or engine power is suitable for the pump. (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
- Page 7 ◎泵浦吸入空氣 尺 ◎拔掉噴槍，待出水正常後再接上 運轉聲音異常 ◎引擎有問題 ◎清潔或維修引擎 ◎泵浦吸入空氣 ◎打開出水管排氣 ◎活門總成異物阻塞 ◎清潔活門總成 ◎吸水量不足 ◎檢查吸水管是否有細縫，或者扭曲 進氣及清潔吸水管過濾網 調壓問題或 ◎壓力閥或閥座磨損 ◎更換零件 壓力無法上升 ◎迫緊磨損 ◎更換零件 ◎活門塞與活門座沾黏 ◎拆解後清洗活門總成或更換零件 ◎閥座上有異物 ◎清潔閥座 ◎活門總成磨損 ◎更換零件 ◎活門總成異物阻塞 ◎清潔活門總成 ◎噴嘴磨損導致壓力下降 ◎更換噴嘴 ◎泵浦吸入空氣 ◎檢查吸水管接頭鎖合或吸水管破裂 ◎自動洩壓總成損壞 ◎送回經銷商更換 (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
- Page 8 WH-2024F WH-2030F...
- Page 9 END COVER OIL SEAL 曲軸油封蓋 B011023000 CRANKSHAFT OIL SEAL COVER 全密曲軸油封蓋 08-1 B011023100 END COVER OIL SEAL COVER 內六角螺絲 BS16206016300 HEX SCREW 迫緊上環 B021110113 PACKING UPPER RING 防水油封 10-1 B021010210 WATERPROOF OIL SEAL (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
- Page 10 20-2 BS32210300 SPRING WASHER 內六角螺絲 BS16208110300 HEX SCREW 彈簧華司 21-1 BS32208300 SPRING WASHER 曲軸箱後蓋 B011623000 REAR COVER O 形環 22-1 BG11012106500 REAR COVER PACKING 油鏡 B012201020 OIL WINDOW O 形環 23-1 BG10234028700 O-RING (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
- Page 11 FILTER 過濾網申目 ACC. B150609120 FILTER SOCKET 皮帶輪(外銷用) ACC. BP20722240 PULLEY (FOR EXPORT) 皮帶輪螺絲(外銷用) ACC. BS11112025121 PULLEY SET BOLT (FOR EXPORT) *31 零件表及展開圖請參閱第 12~13 頁。 *31parts list & diagram please refer to page 12~13. (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
- Page 12 自動洩壓總成展開圖 Unloading Valve Assy Diagram B070008001 (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
- Page 13 調壓彈簧 BJ41101000 PRESSURE REGULATING SPRING 彈簧下座 12 B071409000 SPRING SEAT 調壓螺帽 13 B071709000 PRESSURE REGULATING KNOB 圓頭螺絲 BS14108022100 SCREW 彈簧華司 BS32108200 SPRING WASHER 出水接頭 30 B071209000 OUTLET CONNECTOR 迴水接頭 32 B051801110 OVERFLOW COUPLING (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
-
Page 14: Troubleshooting
◎ The water supply is not ◎ Check the suction hose and enough. fittings; make sure they are well connected and in good condition. ◎ Clean the suction filter. ** Continues on page 15 ** (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F... - Page 15 ◎ The Unloading Valve ◎ Return the product to your local Assembly is damaged. dealer to repair or replace the Unloading Valve Assembly. (2022.03V) 物理 WU LI ─ WH-2024F, WH-2030F...
Need help?
Do you have a question about the WH-2024F and is the answer not in the manual?
Questions and answers
The spray of water goes irrégular and spray by sequence
The water spray on the WULI WH-2024F may be irregular and sequenced due to the following reasons:
1. Worn or Blocked Valve Assemblies – The valve assemblies may be stuck, worn out, or blocked. Cleaning or replacing them can resolve the issue.
2. Worn Packings – The packings may be worn out and need replacement.
3. Nozzle Wear – A worn-out nozzle can cause pressure fluctuations, so replacing it may help.
4. Air in the Pump – Air trapped in the pump can cause irregular spraying. Checking and securing the suction hose and fittings can help eliminate air leaks.
5. Damaged Unloading Valve Assembly – If the unloading valve assembly is damaged, the product should be returned to a local dealer for repair or replacement.
