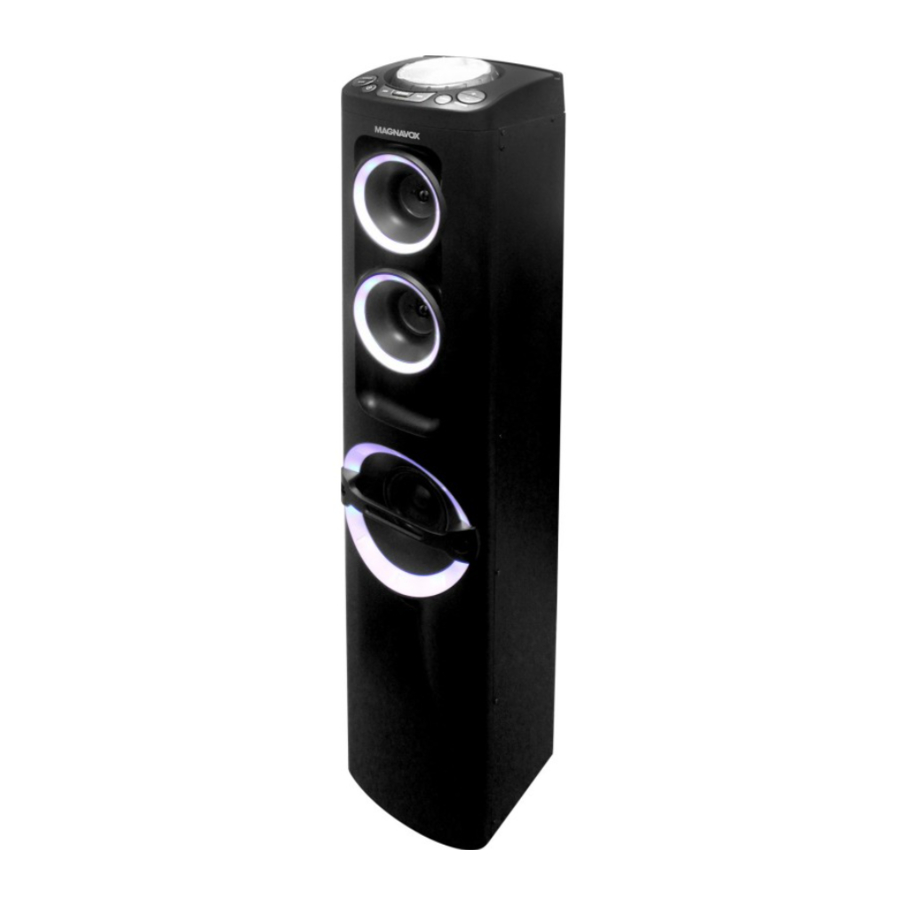

Magnavox MHT983 - Tower Speaker System with Decorative Color Changing Lights Manual

LOCATION OF CONTROL

1. Loud Speakers with LED Decorative LED Lights
2. Subwoofer
3. Remote Sensor
4. Cradle (To hold Remote Control/External Audio Player/Cell Phone)
5. DJ Effect Knob
6. SOURCE Button
7. LIGHT On/Off Button
8. Standby On/Off Button
9. (Skip Backward) Button
10. (Play/Pause) Button
11. (Skip Forward) Button
12. (Bluetooth) Indicator
13. LINE IN Indicator
14. STANDBY/AUX IN Indicator
15. VOLUME +/- Buttons
16. DC 12V Jack
17. LINE IN (3.5mm Stereo) Jack
18. AUX IN (RCA) Jacks

LOCATION OF CONTROL (REMOTE CONTROL)

1. Standby On/OFF Button
2. SOURCE Button
3. (Volume Up) Button
4. (Skip Backward) Button
5. (Play/Pause) Button
6. (Skip Forward) Button
7. MUTE Button
8. (Volume Down) Button
9. LIGHT Button

POWER SOURCE

Connect the small plug from the supplied AC/DC Adaptor to the DC 12V Jack on the rear of unit. Connect the AC/DC Adaptor into any convenient household outlet has AC 100-240V, 50/60Hz as the illustrated below. The STANDBY/AUX IN Indicator on the top of unit will illuminate.

Notes:

1. The AC Adaptor is intended to be correctly orientated in a vertical or floor mount position.
2. For energy saving, if long period of time will not use the unit. Unplug the AC/DC Adaptor from wall outlet.

POWER SOURCE (Remote Control)

In first time use, slide the insulation film from the battery door and discard it as the illustrated follows:

When the button cell is consumed, replace it as follows:

1. Push the tab on the battery tray and slide it out as the illustrated below:
   Install a new CR 2025 button cell to the battery tray as the polarity makings on the rear of remote control cabinet.
2. Close the battery tray.

BATTERY PRECAUTIONS

Follow these Battery Precaution when using a battery in this device:

1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment. A reversed battery may cause damage to the device.
3. Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture. (Follow battery manufacturer's instructions.)
6. Do not dispose of battery in fire. Battery may explodes or leak.
7. Clean the battery contacts and also those of the device prior to battery installation.
8. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burn in just 2 hours and can lead to death.
   Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.
   If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

EFFECTIVE RANGE OF REMOTE TRANSMITTER

The effective range of the remote transmitter is 16 Feet (5 Meter); +/- 30° as illustrated follows:

Notes:

1. When there is an obstacle between the unit and the transmitter, the transmitter may not operate.
2. When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines on the REMOTE SENSOR of the unit, the unit remote operation may be unstable.

OPERATION

General Operation:

1. Connect the unit to AC power as previously instructed. The unit will enter to standby mode and the STANDBY/AUX IN Indicator on the top of unit will illuminate.
2. Press the Button on the unit or Remote Control to power on the unit from standby mode.
3. Press the SOURCE Button on the unit or Remote Control repeatedly to switch to desired playback mode. The corresponding indicator will illuminate (or blinking) with you selection (see list below):

   Playback Modes:	Indicator:
   BT (Bluetooth)	Indicator will illuminate (and blink)
   LINE IN	LINE IN Indicator will illuminate
   AUX IN	STANDBY/AUX IN Indicator will illuminate and blink

4. During playback:
   • Press the Volume +/- buttons on the unit or the +/- buttons on the Remote Control to adjust volume level.
   • Press the LIGHT Button on the unit or Remote Control to turn off the Decorative LED Lights on the speakers. Press again to turn it on.
   • Turning the DJ Effect Knob to creating DJ effect.
   • Press the MUTE Button on the Remote Control to mute the sound; press again to turn it back.
5. When finished listening, press the Button on the unit or Remote Control to turn the unit to standby mode. The STANDBY/AUX IN Indicator on the top of unit will illuminate.

NOTE:
For energy saving, if long period of time will not use the unit. Unplug the AC/DC Adaptor from wall outlet.

BT Mode:
BT (Bluetooth) pairing:
First time use or re-pairing the unit to a new BT Device, pair as follows:

1. Power on the unit and enter to BT mode as previously instructed, the Indicator on the top of unit will illuminate and blink.
2. Power on the external BT Device and enter to BT searching mode. Start pairing following the on screen instructions from the external BT Device. When paired, the Indicator will stop blinking.
3. If pairing is complete you may now play music with your external BT Device.
4. During playback:
   • Press the Button on the unit or Remote Control to pause; press again to resume to normal playback.
   • Press and release the or buttons on the unit or Remote Control repeatedly to skip tracks.
   • Press the Volume +/- buttons on the unit or the +/- buttons on the Remote Control to adjust volume level.
   • Press the LIGHT Button on the unit or Remote Control to turn off the Decorative LED Lights on the speakers. Press again to turn it on.
   • Turning the DJ Effect Knob to creating DJ effect.
   • Press the MUTE Button on the Remote Control to mute the sound; press again to turn it back.
5. When finished listening, press the Button on the unit or Remote Control to turn the unit to standby mode. The STANDBY/AUX IN Indicator on the top of unit will illuminate.

Notes:

• When the external BT Device searched the unit, our model number "MHT983" will appear on the display of external BT Device.
• If while pairing you are asked for a code please try "0000" or "1234".

Normal operation after pairing:

1. Power on the external BT Device and enter to BT playback mode.
2. Power on the unit and enter to BT mode as previously instructed. The Indicator will illuminate and blink.
3. Wait a few seconds until the unit is automatically paired to the external BT Device. The Indicator will stop blinking.
4. After pairing is complete you may now play music with your external BT Device.

LINE IN:
Listen from an external Audio Player such as MP3 Player, Discman...etc.

1. In power off mode, connect one end of supplied Audio Connection Cable to the AUX Out/Line Out/Phone Jack on the external Audio Player.
2. Connect the other end of the cable to the AUX IN Jack on the rear of unit as illustrated below:

3. Power on the unit and enter to AUX IN mode as previously instructed, the LINE IN Indicator on the top of unit will illuminate.
4. Play the music on the connected Audio Player as usual.
   (Make sure the volume level of the connected Audio Player is turned to high level.)
5. When finished listening, press the Button on the unit or Remote Control to turn the unit to standby mode. The STANDBY/AUX IN Indicator on the top of unit will illuminate.

AUX IN:
Listen from an external Audio/Video Player such as Television, DVD Player...etc.

1. In power off mode, connect one end of RCA Audio/Video Connection Cable (not included) to the RCA Audio Out Jacks on the external Audio/Video Player.
2. Connect the other end of the cable to the AUX IN Jacks on the rear of unit as illustrated below:

3. Power on the unit and enter to AUX IN mode as previously instructed, the STANDBY/AUX IN Indicator on the top of unit will illuminate and blink.
4. Play the music on the connected Audio/Video Player as usual.
   (Make sure the volume level of the connected Audio Player is turned to high level.)
5. When finished listening, press the XX Button on the unit or Remote Control to turn the unit to standby mode. The STANDBY/AUX IN Indicator on the top of unit will illuminate.

TROUBLE SHOOTING GUIDE

Check the following before requesting service:

GENERAL SPECIFICATIONS

Power Source: DC 12V, 1.5A,
Impedance of Speakers:
Loud Speaker: 10W; 8Ω per chanel
Subwoofer: 20W; 4Ω
Audio Power:
Loud Speakers: ?W per Channel (Total 10W, RMS)
Subwoofer: ??W (RMS)
BT Version: 4.1
BT Operation Distance: ≤ 32 Feet in open area

PACKAGE INCLUDES

1 x Owner's Manual
1 x Remote Control (uses 1 x CR2025 Button Cell, included)
1 x AC/DC Adaptor (Input: AC 100-240V~, 50/60Hz, 0.75A;
Output: DC 12V, 1.5A, )
1 x Audio Connection Cable with 3.5 mm plugs
SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE
