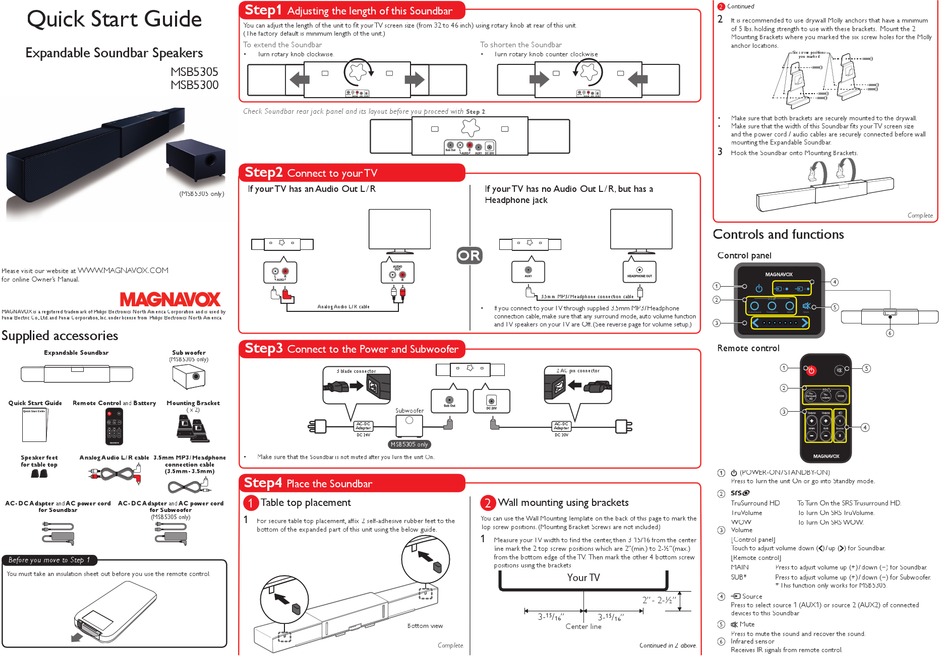

Magnavox MSB5305 Quick Start Manual

Quick Start Guide

Expandable Soundbar Speakers
MSB5305
MSB5300
WWW.MAGNAVOX.COM
Please visit our website at
for online Owner's Manual.
MAGNAVOX is a registered trademark of Philips Electronics North America Corporation and is used by
Funai Electric Co., Ltd. and Funai Corporation, Inc. under license from Philips Electronics North America.

Supplied accessories

Expandable Soundbar Sub woofer
(MSB5305 only)
Quick Start Guide Remote Control and Battery Mounting Bracket
Quick Start Guide
Speaker feet Analog Audio L / R cable 3.5mm MP3 / Headphone
for table top connection cable
(3.5mm - 3.5mm)
AC - DC Adapter and AC power cord AC - DC Adapter and AC power cord
for Soundbar for Subwoofer
(MSB5305 only)
Before you move to Step 1
You must take an insulation sheet out before you use the remote control.
Step1
Adjusting the length of this Soundbar
You can adjust the length of the unit to fi t your TV screen size (from 32 to 46 inch) using rotary knob at rear of this unit.
(The factory default is minimum length of the unit.)
To extend the Soundbar
• Turn rotary knob clockwise.
Check Soundbar rear jack panel and its layout before you proceed with
Step2
Connect to your TV
If your TV has an Audio Out L / R
(MSB5305 only)
Analog Audio L / R cable
Step3
Connect to the Power and Subwoofer
3 blade connector
( x 2)
AC-DC
Adapter
DC 24V
• Make sure that
the Soundbar is not muted after you Turn the unit On.
Step4
Place the Soundbar
1 Table top placement
1
For secure table top placement, affi x 2 self-adhesive rubber feet to the
bottom of the expanded part of this unit using the below guide.
To shorten the Soundbar
Turn rotary knob counter clockwise
•
.
Step 2
If your TV has no Audio Out L / R, but has a
Headphone jack
OR
3.5mm MP3 / Headphone connection cable
• If you connect to your TV through supplied 3.5mm MP3 / Headphone
connection cable, make sure that any surround mode, auto volume function
and TV speakers on your TV are Off. (See reverse page for volume setup.)
2 AC pin connector
Subwoofer
AC-DC
Adapter
DC 20V
MSB5305 only
2 Wall mounting using brackets
You can use the Wall Mounting Template on the back of this page to mark the
Top screw positions. (Mounting Bracket Screws are not included)
1
Measure your TV width to fi nd the center, then 3 15/16 from the center
line mark the 2 top screw positions which are 2"(min.) to 2-½"(max.)
from the bottom edge of the TV. Then mark the other 4 bottom screw
positions using the brackets.
3- 15 / "
16
Bottom view Center line
Complete.
Continued
2
2
It is recommended to use drywall Molly anchors that have a minimum
of 5 lbs. holding strength to use with these brackets. Mount the 2
Mounting Brackets where you marked the six screw holes for the Molly
anchor locations.
• Make sure that both brackets are securely mounted to the drywall.
• Make sure that the width of this Soundbar fi ts your TV screen size
and the power cord / audio cables are securely connected before wall
mounting the Expandable Soundbar.
3
Hook the Soundbar onto Mounting Brackets.

Controls and functions

Control panel
a
b
TruSurround TruVolume
c
Remote control
(POWER-ON / STANDBY-ON)
Press to Turn the unit On or go into Standby mode.
b b
TruSurround HD
TruVolume
WOW
Volume
c c
[Control panel]
Touch to adjust volume down ( ( ) / up (
[Remote control]
MAIN
SUB*
Source
d
2" - 2-½"
Press to select source 1 (AUX1) or source 2 (AUX2) of connected
devices to this Soundbar
3- 15 / "
16
Mute
e
Press to mute the sound and recover the sound.
Infrared sensor
f f
Continued in 2 above.
Receives IR signals from remote control.
Six screw positions
you marked
.
Complete.
d
1 2
e
WOW Mute
f
a e
b
c
d
To Turn On the SRS Trusurround HD.
To Turn On SRS TruVolume.
To Turn On SRS WOW.
) ( ) for Soundbar. )
Press to adjust volume up (+) / down (−) for Soundbar.
Press to adjust volume up (+) / down (−) for Subwoofer.
* This function only works for MSB5305.
