HighPoint R1104F Quick Installation Manual

4x m.2 port to pcie 3.0x16 nvme hba
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
R1104F

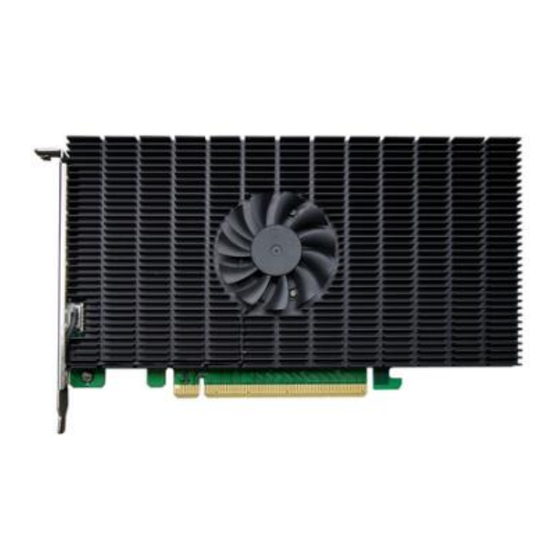

4x M.2 Port to PCIe 3.0x16 NVMe HBA
Quick Installation Guide
V1.00
1

Advertisement

loading

Related Manuals for HighPoint R1104F

Summary of Contents for HighPoint R1104F

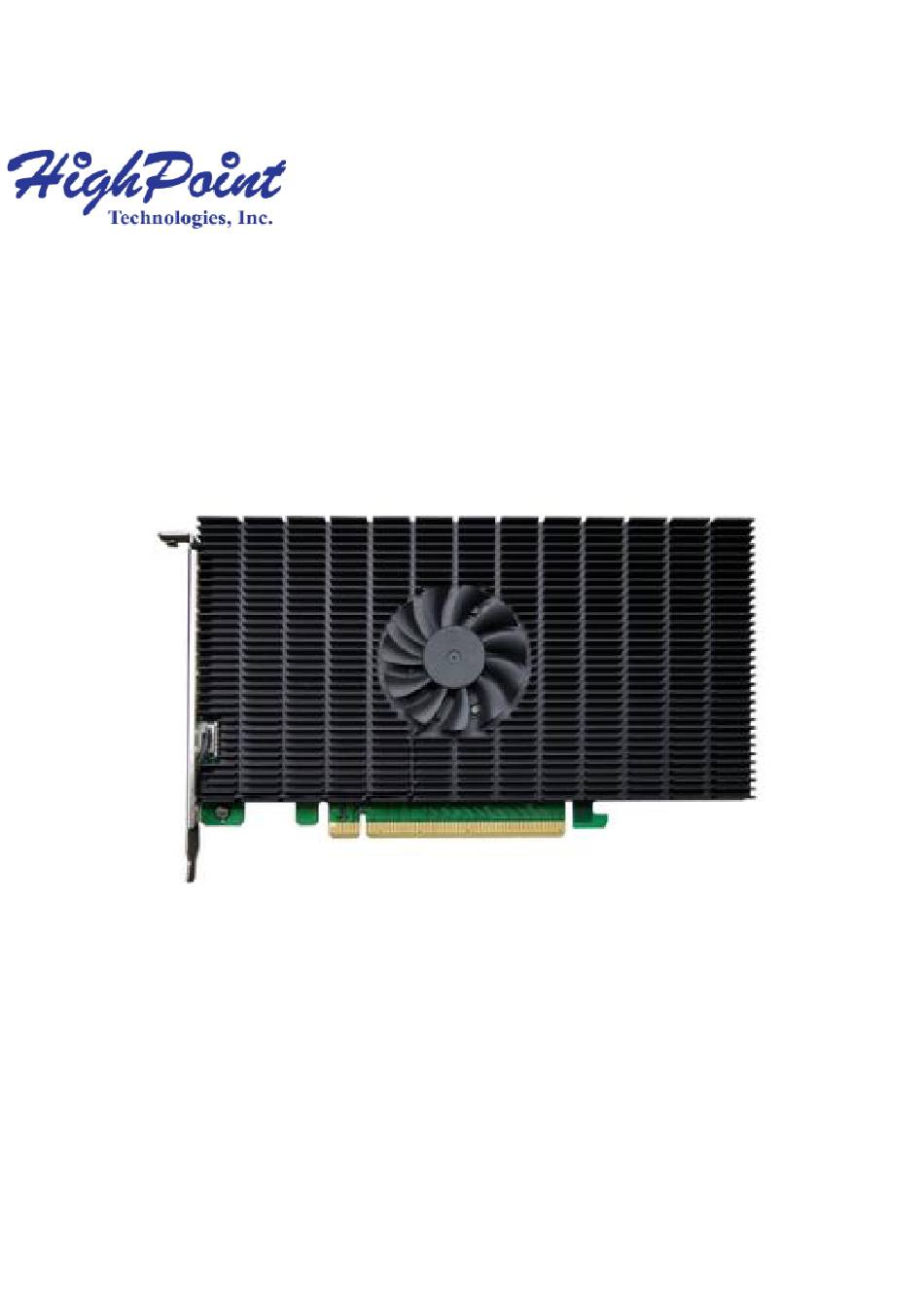

  • Page 1 R1104F 4x M.2 Port to PCIe 3.0x16 NVMe HBA Quick Installation Guide V1.00...

  • Page 2: System Requirements

    Windows Server 2012 and later • Microsoft Hyper-V 2012 and later • Linux kernel 3.10 and later • macOS 10.13 and later • ESXi 6.7 and later • FreeBSD 12.1 and later • R1104F Kit Content 1x R1104F • 1x Quick Installation Guide •...
  • Page 3 R1104F Hardware Front View Anodized aluminum heat sink Full-Height bracket Low-Nosie fan PCIe x16 host interface...
  • Page 4 R1104F Hardware Installation Step 1. On the rear of the R1104F, remove the six screws that secure the unit’s heat sink to the PCB. Step 2. After removing the screws, carefully remove the heat sink from the R1104F. Step 3. After removing the casing, carefully turn it over to view the thermal pad.
  • Page 5 Step 4. These 4 screws are used to install the NVMe SSDs. The R1104F can support any M.2 form factor (2242, 2260, 2280, and 22110). Step 5. Please remove the screws on the right side of R1104F. Step 6. Gently insert the NVMe SSDs into the slot. Note: Please make sure all disks are clean before you insert them into the slot to avoid unexpected situations.
  • Page 6 Step 7. Refasten the screw to secure the NVMe SSD. Repeat Steps 5 to 7 to install the remaining NVMe SSDs. Note: Make sure the NVMe SSDs are carefully, but securely installed into each M.2 port. Loose connections can cause a variety of stability and performance issues, and may ultimately result in data loss.
  • Page 7 Step 9. On the rear of the R1104F, refasten the six screws that were removed in Step 1. Note1: Make sure the aluminum cover is properly aligned with the HBA board (PCB), and that it makes full contact with the thermal pad, before refastening it to the R1104F.
  • Page 8 Resources A variety of manuals, guides and FAQs are available for the R1104F NVMe HBA. In addition, we recommend visiting the Software Downloads webpage for the latest management interfaces, and installation guides. Document Downloads: https://www.highpoint-tech.com/nvme-aic/r1104f FAQ & Troubleshooting: FAQ - HighPoint Technologies, Inc.

  • Page 9: Customer Support

    Customer Support If you encounter any problems while utilizing the R1104F NVMe HBA, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
