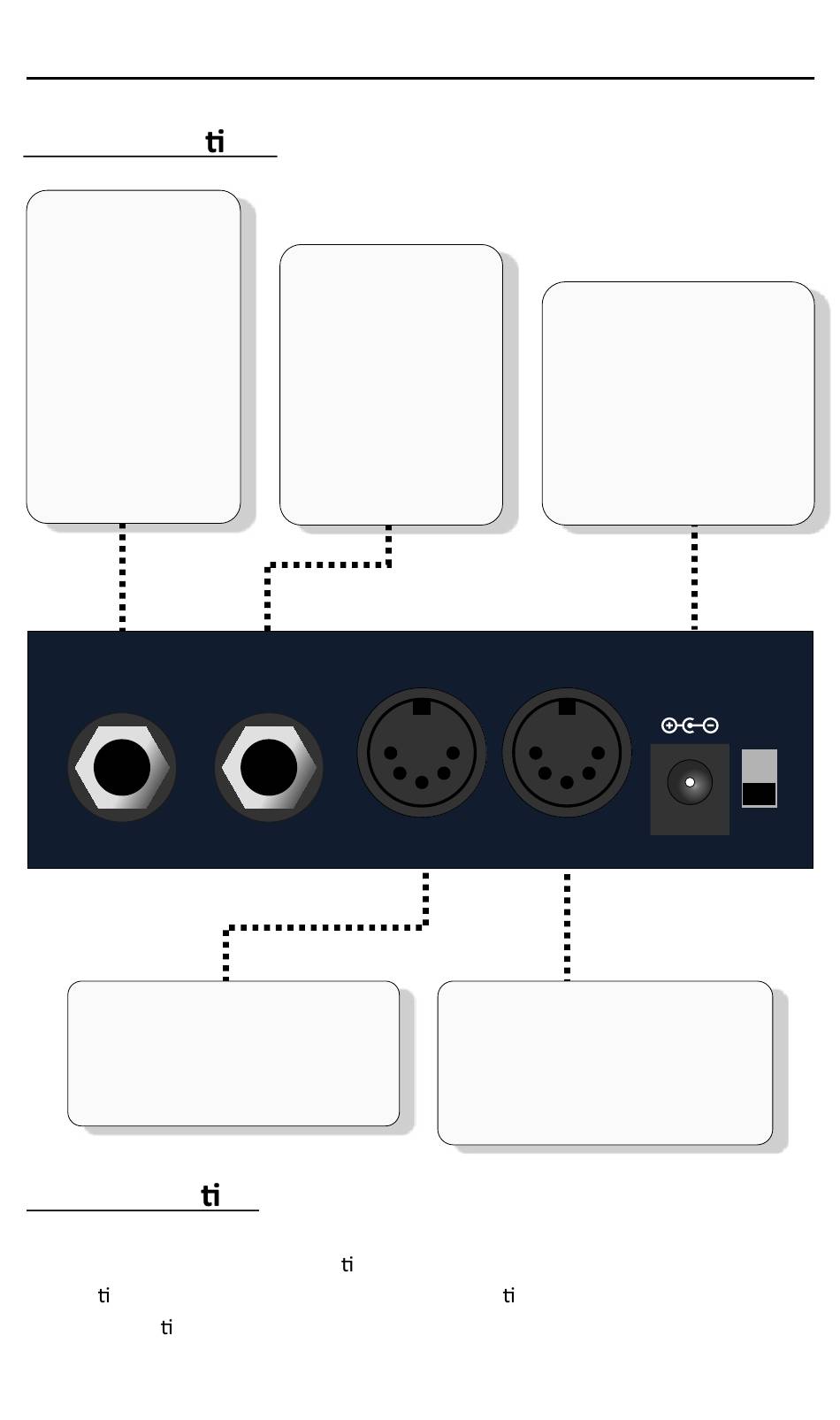

Rear Connec ons

AUDIO IN
(SYNC)
TS Line Level
Audio Input for
receiving 24
PPQN audio
pulses from a
DAW or other
compatible audio
device.
AUDIO IN
(SYNC)
JMK MUSIC PEDALS
MIDI IN
Standard DIN Connector for
receiving MIDI data.

USB Connec on

On the right side is a USB connec on. This is a Class-Compliant MIDI Client
connec on that will be seen as a 1x1 MIDI connec on on a host computer. It's also
used for upda ng the firmware.
Copyright 2023 JMK Music Pedals
version 1.0 (build 0050)
AUDIO OUT
(CLICK)
TS Line Level
Audio Output for
sending Click
audio to a mixer
for tempo
monitoring.
AUDIO OUT
(CLICK)
MIDI IN MIDI OUT
MIDI OUT
Standard DIN Connector for
sending MIDI OUT and THRU
data.
JMK MUSIC PEDALS
POWER
2.1mm Barrel
Connector.
Center Negative.
9v DC. 200 mA
Nominal current.
9v DC
ON
OFF
4
