Component Playgrounds A-Frame Junior Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
A-Frame Junior
Installation Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the A-Frame Junior and is the answer not in the manual?

Questions and answers

Related Manuals for Component Playgrounds A-Frame Junior

Summary of Contents for Component Playgrounds A-Frame Junior

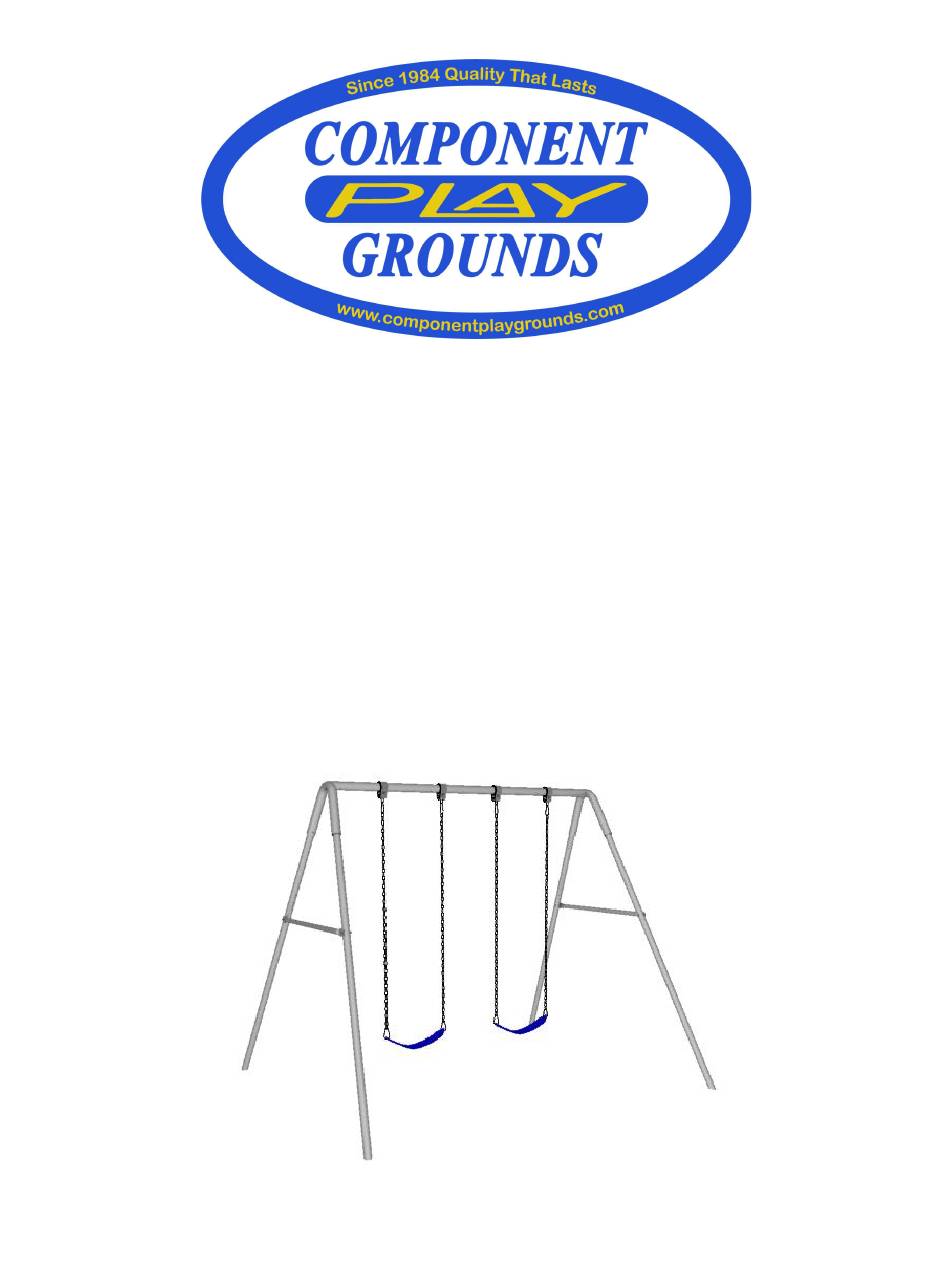

  • Page 1 A-Frame Junior Installation Instructions...
  • Page 2 PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING The A-Frame Junior can be installed as a one day project. The normal time required to install the AF30 is about 30-45 minutes for a two man crew.
  • Page 4 BRASS BUSHING SWING HANGER ASSEMBLY 1. Loosen and remove the two nyloc jam nuts. 2. Reassemble on to swing top rail. Please refer to the spacing dimensions shown on the image on the previous page. 3.Tighten securely using a ¾” socket so that the hanger is firmly attached in place and cannot slide or swivel along the top rail.
  • Page 5 ASSEMBLY 1. Make sure to find a flat, level area to assemble your swing set. 2. Lay the top rail with the assembled swing hangers on its side. 3. Insert the 4 legs (7’10” long) into the sleeves of the top rail. Please note that there is a hole drilled near the center of each leg.
  • Page 6 5. Next have two adults stand on opposite ends and stand the frame up into the place you want it to be installed. After standing it up, temporarily loosen the set screw on each leg. 6. Attach the two spreader bars to the outside of the a-frame legs with the provided nuts and bolts.
  • Page 7 7. Go through and make sure every bolt and set screw is tight. Attach the chain to the carabiners on the swing hangers, and attach the seats to the chain using the remaining carabiners. To adjust the height of the swing seats, simply connect the carabiner to a different chain link at the top of the chain.

  • Page 8: Read Before Use

    While every attempt is made by Component Playgrounds to ensure the highest degree of safety in all of our equipment, we cannot guarantee freedom from injury. The user assumes all risk of injury due to use.
  • Page 9 These items can be purchased in aerosol cans (“spray paint”) at most hardware stores and at Component Playgrounds. The brass bushings inside of the swing hanger are impregnated with lubricant and will not generally require any further lubrication.
  • Page 10 To Help Prevent Injuries from Falls & Other Hazards 1. Never attach, or allow children to attach the following items to your swing set: Ropes, jump ropes, clotheslines, pet leashes or any similar type of item to your swing set. Any item such as these may present a strangulation hazard.
  • Page 11 Warranty Component Playgrounds works to build heavy duty products that will stand up to the heavy use of active children. You can trust Component Playgrounds because of the way we design and build our products. We make products that are simple to own, and easy to maintain.

  • Page 12: Warranty Registration Sheet

    Return this form via email to: State: Zip: Sales@componentplaygrounds.com Phone: Or via U.S. mail to: Purchase Date: Completion Date: Component Playgrounds 1630 North Beck Street Sales Representative/Dealer Information Salt Lake City, UT 84116 (If different from manufacturer) Organization: Today's Date: City:...
