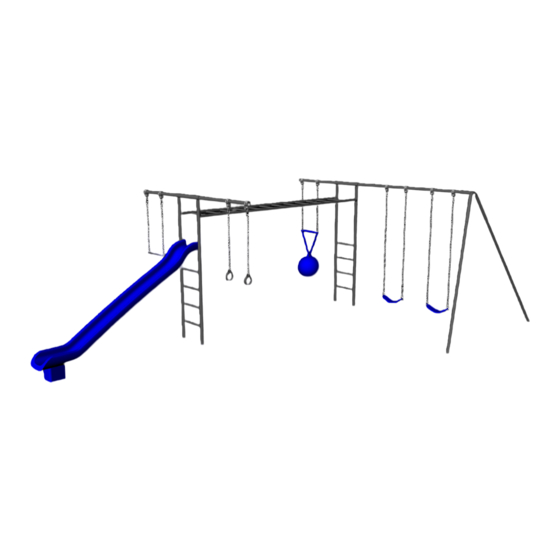

PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING
*Before digging, please obey local laws by notifying your local utilities marking organization*
1. Select an area in your yard that is reasonably level and meets the space
requirements for your equipment. Ground Space: 15' x 28', Play Space: 19' x 37'.
2. Please refer to the Top Rail/Out Rigger assembly sheet and assemble your top rails
as instructed.
3. Using the measurements from the top view diagram, measure and mark the position
of the swing hangers and ladders on each of the top rails. Set aside.
4. Place over head ladder onto the ground in the desired location. Measure and adjust
as necessary to allow for the proper play space.
5. With the Horizontal ladder in its proper position in the yard, mark the location for the
holes where the two vertical ladders will stand. Move the horizontal ladder and dig
the holes. (See installation instructions #1 hole sizes for cementing.)
6. Lay each vertical ladder on the ground near the hole where it will eventually stand.
Make a mark 15" from the top of the ladder onto each ladder rail. Move the
adjustable sleeves to these marks and position them to receive the overhead ladder
by turning them to point at a 90 degree angle (towards what will become the inside
of the structure) away from the upright ladder. Secure the set screws.
7. Insert the 9' top rail into the top sleeve of the ladder. Secure the set screws.
8. Place the ladder into its hole. Hint: Be sure that the adjustable sleeves are prepared
to receive the horizontal ladder.
9. Lay the other ladder on the ground with the bottom of the ladder just over the hole
where it will eventually stand.
10. Place the 13'11" outrigger about 10' away from the hole. Assemble and attach the
swing hangers to the 13'11" outrigger.
11. Position the outrigger upside down on the ground. Assemble the "A" frame legs.
(See installation instructions: "A" frame leg assembly.) Slide the outrigger into the
top sleeve of the vertical ladder.
Installation Instructions
SS31
Required Tools
Open End or Box Wrenches: 5/8", 9/16",
Ratchet Handle & Sockets: 5/8", 9/16", 17mm
Tape Measure
Level
Ladder
Advertisement
Related Manuals for Component Playgrounds Super Swing w/ Slide and Buoy Ball
Summary of Contents for Component Playgrounds Super Swing w/ Slide and Buoy Ball
- Page 1 Installation Instructions SS31 Required Tools Wheelbarrow Tape Measure Shovel Level Digging Bar or Pick Open End or Box Wrenches: 5/8”, 9/16”, Allen Wrench (Provided) Ratchet Handle & Sockets: 5/8”, 9/16”, 17mm Marker Pen Ladder PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING *Before digging, please obey local laws by notifying your local utilities marking organization* 1.
- Page 2 12. Using two strong adults, stand the structure up and allow the ladder to fall into the hole previously dug. Check and make sure that the outrigger is still properly positioned inside of the ladder top sleeve. The out rigger can be adjusted as follows: While securely holding the ladder, take hold of the A-frame portion and push or pull as necessary.
- Page 3 Top Rail Assembly Step 1: Slide the Swing Hangers and tighten onto the Top Rail during the Top Rail Assembly process. (Refer to spacing diagram and graphic found above) Step 2: Slide the ends of the 10’ Top Rail as far as it will go into the Sleeve of the Triple End.
- Page 4 Two piece Top Rail Assembly Step 3: Step 2: Step 1: *Make sure to line up the set screws so they make a straight line as show in the graphic above.
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS SS31 GROUND SPACE 15’ X 28’ MINIMUM RESIDENTIAL PLAY SPACE 19’ X 37’ Top View 5’ Clearance... - Page 6 SS31 Continued (A) Upright Ladder (B) A-Frame Legs 3/8” x 2 ¾” Hex Bolt with 3/8” Nyloc Nut (1 each per leg) Triple End 20” 3/8” x 3/8” Set Screw (1 each per 28” 12” leg) 24” Slide in leg, bolt in A-Frame 18”...
- Page 7 Note: We recommend you check the pendulum in the swing hangers at least every 6 months for normal wear.
- Page 8 RAVE/ROCKET SLIDE MOUNTING INSTRUCTIONS 1. Attach the slide bracket to the upright ladder by placing the carriage bolt through the ladder and through the holes in the bracket. Then secure Slide Bracket with the flate washer, loc washer, and hex nut. SHOWN ON RIGHT.
-
Page 10: Read Before Use
While every attempt is made by Component Playgrounds to ensure the highest degree of safety in all of our equipment, we cannot guarantee freedom from injury. The user assumes all risk of injury due to use. - Page 11 We hope that you and your family will enjoy many of hours of great family fun while using your Component Playgrounds Products. We appreciate your business. Our goal is to provide safe, durable and fun products using the best materials available. Your product should be mostly maintenance free.
- Page 12 (“spray paint”) at most hardware stores and at Component Playgrounds.) 5. Plastic Lumber Platforms: If you have purchased a structure which includes a platform, the plastic lumber does not need to be finished or stained. It is 100% maintenance free.
- Page 13 To Help Prevent Injuries from Falls & Other Hazards 1. Never attach, or allow children to attach the following items to your swing set: Ropes, jump ropes, clotheslines, pet leashes or any similar type of item to your swing set. Any item such as these may present a strangulation hazard.
- Page 14 Residential Products Limited Lifetime Warranty Component Playgrounds works to build heavy duty products that will stand up to the heavy use of active children. You can trust Component Playgrounds because of the way we design and build our products. We make products that are simple to own, and easy to maintain. This adds up to the best value on playground products that you can count on, and that kids will play on time after time.
- Page 15 Return this form via e-mail to: Contact Person:_____________________________________ sales@componentplaygrounds.com Address:___________________________________________ Or via U.S. mail to: City: ____________________State:______Zip:_________ Phone: ____________________________________________ Component Playgrounds Purchase Date: __________Completion Date: ____________ 1630 North Beck Street Salt Lake City, UT 84116 SALES REPRESENTATIVE/DEALER INFORMATION Today’s Date:_____________________________________ (If different from manufacturer)
