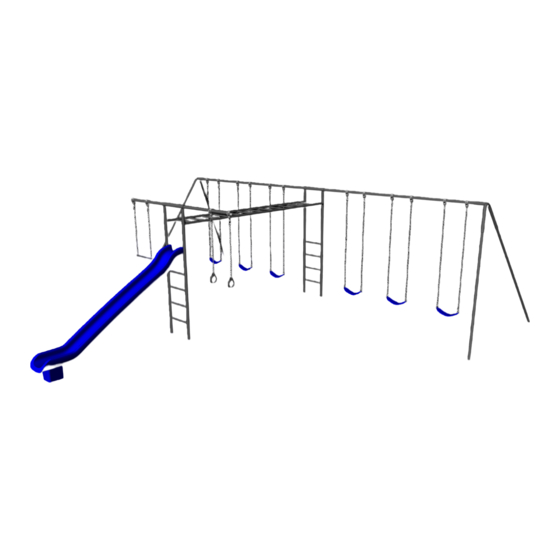

Component Playgrounds Super Swing w/ Slide Installation Instructions Manual

Wheelbarrow
Shovel
Digging Bar or Pick
Allen Wrench (Provided)
Marker Pen
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING
*Before digging, please obey local laws by notifying your local utilities marking organization*
1. Select an area in your yard that is reasonably level and meets the space requirements for your
equipment. Ground Space: 28' x 31', Play Space: 32' x 40'.
2. Please refer to the Top Rail/Out Rigger assembly sheet and assemble your top rails as instructed.
3. Using the measurements from the top view diagram, measure and mark the position of the swing
hangers and ladders on each of the top rails. Set aside.
4. Place over head ladder onto the ground in the desired location. Measure and adjust as necessary to
allow for the proper play space.
5. With the Horizontal ladder in its proper position in the yard, mark the location for the holes where the
two vertical ladders will stand. Move the horizontal ladder and dig the holes. (See installation
instructions hole sizes for cementing dimensions.)
6. Lay each vertical ladder on the ground near the hole where it will eventually stand. (Please take note that
one ladder will accept the slide bracket and the other will not. Please position the ladders accordingly)
Make a mark 15" from the top of the ladder onto each ladder rail. Move the adjustable sleeves to these
marks and position them to receive the overhead ladder by turning them to point at a 90 degree angle
(towards what will become the inside of the structure) away from the upright ladder. Secure the set
screws.
7. Insert the 9' top rail into the top sleeve of the ladder (rings & trapeze bar end). Secure the set screws.
8. Place the ladder into its hole. Hint: Be sure that the adjustable sleeves are prepared to receive the
horizontal ladder.
9. Lay the other ladder on the ground with the bottom of the ladder just over the hole where it will
eventually stand.
10. Measure and mark the position where the 24' top rail will rest inside of the ladder top sleeve.
11. Slide the top rail through the top sleeve of the vertical ladder (put the set screws into the holes in the
ladder top sleeve, but do not secure until after the structure is standing and level.)
12. Assemble both triple ends to the 24' top rail. With the top rail "standing" on the triple ends, assemble
and attach the swing hangers to the top rail.
13. Flip the top rail upside down on the ground. Assemble the "A" frame legs. (See installation
instructions for "A" frame leg assembly.)
14. Using two or three strong adults, stand the structure up and allow the ladder to fall into the hole previously
dug. Check and make sure that the top rail is still properly positioned inside of the ladder top sleeve. The
top rail can be adjusted inside of the ladder top sleeve as follows: While securely holding the ladder, take
hold of the "A" frame portion and push or pull as necessary. When you are satisfied that the top rail is
Installation Instructions
SS38
Required Tools
Ratchet Handle & Sockets: 5/8", 9/16", ½", 17mm
Open End or Box Wrenches: 5/8", 9/16", ½"
Tape Measure
Level
Ladder
