Polygroup SUMMER WAVES RX-600 Owner's Manual

ASME COMPLIANT SUCTION FITTING INFORMATION
PSF-100A AND PSF-100B SUCTION OUTLET
(FOR ABOVE GROUND POOL)
1. PSF-100A and PSF-100B Suction Outlets are certified by IAPMO in accordance with the ASME/ANSI A112.19.8b-2009 Suction Fitting for use in Swimming Pools,
Wading Pools, Spas, and Hot Tubs.
2. This is a submerged suction outlet for use with above ground swimming pool.
3. For single drain only. Use only ONE outlet for each pump.
4. Do not locate this suction outlet on sitting areas or on the backrest for such seating area.
5. Install this outlet at location recommended by the pool manufacturer.
6. The maximum allowable flow rate of this suction outlet is 45 gallon per minute (2,700 gallonper hour).
7. Connection Hose:
• Model PSF-100-A is to be connected with 1 1/4" (31.8mm) diameter hose.
• Model PSF-100-B is to be connected with 1 1/2" (38.1mm) diameter hose.
8. The suction outlet is to be mounted at the suction outlet opening as specified by the manufacturer of the above ground pool. The diameter of this opening should be
within the range of 1.77" to 1.85" (45.0mm to 47.0mm). Refer to the following diagram for detail assembly instructions:
9. The suction outlet PSF-100A or PSF-100B is to be replace every 5 years.
10. No tool is required for installation.
11. Service and Winterizing Instructions
CAUTION! DO NOT EXCEED THE MAXIMUM ALLOWABLE FLOW RATE:
1. 45 Gallon per minute (2,700 Gallon per hour).
2. Carefully observe and inspect the suction outlet for damage and tampering before each use of the pool.
3. Missing, broken or cracked suction outlet must be replaced before using the pool.
4. Loose suction fitting should be reattached or replaced before using the pool.
5. Remove and store Suction Outlet assembly if temperatures are expected to fall below 32° F.
Should you encounter any problems, contact Customer Service at (844) 252-9983 from 8 AM to 5 PM Mon. thru Fri.
MST. Extended operating days and hours during peak season requirements.
18
OWNER'S MANUAL
Swimming Pool
Rubber Gasket
Suction Fitting, PSF-100A
Or PSF-100B
Water Cap, To Be Installed
Only During Pump Maintenance
Or Filter Change
Flat Washer
Lock Nut, To Be Tightened By Hand
Hose Clamp
Water Hose
SUMMER WAVES

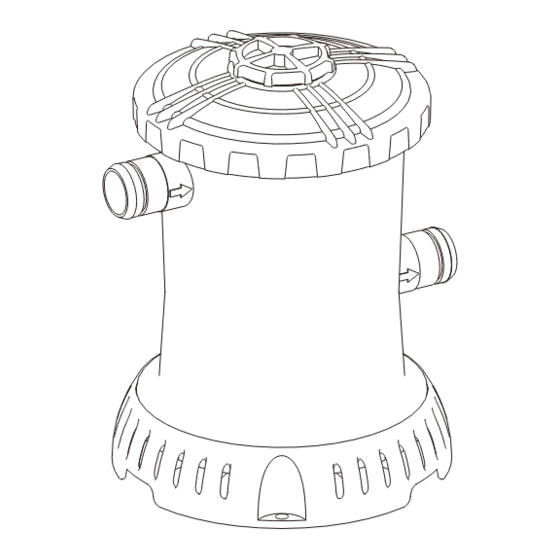

CARTRIDGE FILTER PUMP
FOR ABOVE GROUND SWIMMING POOLS
RX-600 / RX-1000 / RX-1500 models
READ, AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
For any set up and troubleshooting issues, please visit www.polygroup.zendesk.com.
Customer Service: (844) 252-9983 Email: ctcwarranty@polygroup.com
DO NOT RETURN PRODUCT TO STORE
Should you encounter a problem with your Polygroup Product, please do not return the product to the place of purchase. All Warranty claims must be made directly to
®
Polygroup . Prior to contacting Customer Service, please first review the Troubleshooting Guide in the Installation Manual, or review the FAQ at www.Polygroup.com.
®
Please review setup instruction videos on www.Polygroup.com/video. If you are still unable to correct the problem, please contact Polygroup
252-9983. Have the product type and your purchase receipt ready. Our Customer Service Representative will assist you in resolving the problem. You may be asked to
return all or part of the product for inspection and/or repair. Do not return any product to Polygroup
