SUMMER WAVES

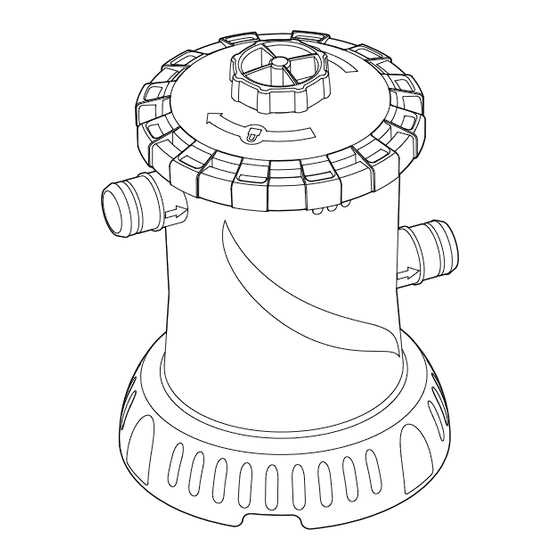

CARTRIDGE FILTER PUMP
READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
For answers to common questions, setup videos and
troubleshooting tips, please visit support.polygroupstore.com
or call Customer Service: +1 (888) 919-0070
DO NOT RETURN PRODUCT TO STORE
Should you encounter a problem with your Polygroup
be made directly to Polygroup
. For any setup and troubleshooting issues, please visit support.polygroupstore.com. Customer Service: +1 (888) 919-0070.
®
You may be asked to return all or part of the product for inspection and/or repair. Do not return any product to Polygroup
Authorization number.
DISTRIBUTED BY: Polygroup
Should you encounter any problems, contact Customer Service at +1 (888) 919-0070 from 8AM to 5PM MST, Monday-Friday.
FOR ABOVE GROUND SWIMMING POOLS
RX600 / RX1000 / RX1500 Models
Product, please DO NOT return the product to the place of purchase. All warranty claims must
®
Trading Limited Unit 606, 6th Floor, Fairmont House, No.8 Cotton Tree Drive, Central, Hong Kong
®
Extended operating days and hours during peak season requirements.
OWNER'S MANUAL
®
To order parts and accessories,
please visit
www.polygroupstore.com
without a Return Merchandise
®
09C3A4USA101
©2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Polygroup RX1500
Summary of Contents for Polygroup RX1500
- Page 1 . For any setup and troubleshooting issues, please visit support.polygroupstore.com. Customer Service: +1 (888) 919-0070. ® You may be asked to return all or part of the product for inspection and/or repair. Do not return any product to Polygroup without a Return Merchandise ®...
-
Page 2: Table Of Contents
18 ~ 19 ASME compliant suction fitting info Limited Warranty Polygroup Trading Limited (hereinafter “Polygroup ”) makes products at the best quality we are able to offer. All Polygroup products ® ® ® have been inspected against defects in materials and workmanship prior to leaving factory. Polygroup is happy to offer warranty for the ®... -
Page 3: Warnings
CUSTOMERS WHO PURCHASE POOLS MAY BE REQUIRED BY LOCAL OR STATE LAW TO INCUR ADDITIONAL EXPENSES WHEN INSTALLING A POOL, IN ORDER TO COMPLY WITH STATE OR LOCAL LAWS REGARDING FENCING AND OTHER SAFETY REQUIREMENTS. CUSTOMERS SHOULD CONTACT THEIR LOCAL BUILDING CODE ENFORCEMENT OFFICE FOR FURTHER DETAILS. POLYGROUP IS NOT RESPONSIBLE FOR ANY ADDITIONAL EXPENSES THAT YOU MAY INCUR. - Page 4 Turn on the pump for the recommended hours daily. If you are unsure of the time frames please refer to support.polygroupstore.com for the recommended Pump Operation Hours based on pool types and sizes. Clean and replace filter cartridge frequently. Replace only with a genuine Polygroup / Summer Waves Brand filter cartridge.
- Page 5 OWNER’S MANUAL First Aid 1. Keep a working phone and a list of emergency numbers near the pool. 2. Become certified in cardiopulmonary resuscitation (CPR). In the event of an emergency, immediate use of CPR can make a lifesaving difference. Special Warning 1.
- Page 6 ASME American Society of Mechanical Engineers Two Park Avenue, New York NY 10016-5990 Contact: 800-843-2763 (U.S. & Canada) 973-882-1170 (outside North America) www.asme.org NSPI National Spa and Pool Institute (see APSP) UL Underwriters Laboratories 333 Pfingsten Road,Northbrook IL 60062-2096 Contact: 877-854-3577 or 847-272-8800 www.ul.com NSF NSF International P.O.
-
Page 7: Preliminary Steps, Important Notes & Pump Power Info
A) RX600 Volute Cover Filter Pump B) RX1000 Volute Cover Lock Nut (RX600 or RX1000) Assembly 4 Set C) RX1500 Volute Cover Bolt & Nut Set (RX1500 only) Vent Screw GFCI Power Cord Set Vent Screw O-Ring O-Ring (for hose connection) - Page 8 RX600 RX1000 RX1500 RETURN FITTING SUCTION FITTING...
- Page 9 OWNER’S MANUAL RX1000 RX600 RX1500...
-
Page 10: Setup Instructions
SETUP INSTRUCTIONS Before assembly, take a few minutes to identify and become familiar with all the parts. WARNING: CLIMBING HAZARD! PLEASE PREVENT CHILDREN FROM CLIMBING ON THE FILTER CANISTER TO GAIN ACCESS TO THE POOL. Suction & Return Fittings Installation 1. - Page 11 OWNER’S MANUAL 5. Connect the Suction Fitting to the Pump inlet with a Hose and one 6. Connect the Return Fitting to the Pump outlet with another Hose and Clamp on each end. one Clamp on each end. Make sure the Hose Clamps seals tightly over both the Hose and O-Rings...
-
Page 12: Use Of Pump, Motor Care, Maintenance
USE OF PUMP 1. Plug the GFCI Power Cord Set to a properly grounded receptacle at least 15 feet (4.5m) away from the pool. How to use the GFCI plug 2. To turn on the Pump, press the RESET button of the GFCI Plug. 3. -
Page 13: Pool Water Care
NEVER drop lumps or pellets of chemicals into the pool – this may present a hazard to the swimmers and/or damage your pool liner. 3. Clean your pool regularly with a garden-hose-powered vacuum from Polygroup or any pool supplies stores. -
Page 14: Pump Disassembly & Storage
PUMP DISASSEMBLY & STORAGE 1. Unplug the Pump from the power outlet. 2. For the Suction Fitting : seal it with the SF Cap For the Return Fitting : remove the RF Diverter , and seal it with the Service Plug 3. -
Page 15: Pump Servicing Instructions - Rotor Inspection
Shaft End Cap RX600/RX1000 RX1500 4. Once the inspection or replacement is done, carefully insert the Rotor Assembly back into the Pump Body. The force of the magnet will pull the Rotor down in place. 5. Align the Volute Cover with the top End Cap of the Rotor, then tighten with the Volute Cover Lock Nut or Bolts & Nuts (depends on the pump model). - Page 16 3. Slowly insert the Motor back into the Canister. There’s a groove on the bottom of the Motor (marked "ALIGN"). Make sure that the groove aligns with notch on the Canister (only visible from bottom), otherwise the Pump Base may leak even already locked in place. Also, the Rubble Nozzle should be aligned with the Canister's water outlet.
-
Page 17: Troubleshooting Guide
OWNER’S MANUAL TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION A Not plugged in A Plug the Pump to a 3-wire grounded power outlet. Motor doesn’t B GFCI Power Cord Set and/or B Reset your circuit breaker on the electrical panel. If problem persists, have the circuit checked start, or kicks on circuit breaker tripped by a qualified electrician. -
Page 18: Replacement Parts Ordering Info
REPLACEMENT PARTS ORDERING INFORMATION RX600 RX1000 RX1500 P58PF1520K01 P58PF1520K01 P58PF1520K01 P58281283W05 P58284283W05 P58284283W05 P582812838UN P582842838UN P582842838UN P582812837CN P582842837CN P582842837CN P58PF1510K01 P58PF1510K01 P58PF1510K01 P58PF15108UN P58PF15108UN P58PF15108UN P58PF15107CN P58PF15107CN P58PF15107CN P58PF1430W05 P58PF1430W05 P58PF1430W05 P58PF14308UN P58PF14308UN P58PF14308UN P58PF14307CN P58PF14307CN P58PF14307CN P58PF2820P01 P58PF2820P01 P58PF2820P01... - Page 19 OWNER’S MANUAL RX600 RX1000 RX1500 P58PP3750K01 P58PP3750K01 P58185201K01 P58X600C0000 P58X1000C000 P58X1501C000 P581041037PR P581041080PR P581041080PR P58050137001 P58050505001 P58050506001 P58PF1009K01 P58PF1009K01 P58184501K01 P58PF1010K01 P58PF1010K01 P5800400080A P58030001K01 P58037000K01 P58037000K01 P584150006W1 P584150006W1 P584150006W1 P58PF5620P01 P58PF5620P01 P58PF5620P01 P58003689W05 P58003689W05 P58003689W05 P5810170AE01 P5810170AE01 P5810170AE01 P53RX0609W05 P53RX1009W05...
-
Page 20: Asme Compliant Suction Fitting Info
ASME COMPLIANT SUCTION FITTING INFORMATION PSF-100A and PSF-100B Suction Outlet Fitting (For Aboveground Pool) 1. PSF-100A and PSF-100B Suction Outlet Fitting are certified by IAPMO in accordance with the ASME/ANSI/APSP/ICC-16 2011 Suction Fittings for Use in Swimming Pools, Wading Pools, Spas, and Hot Tubs. 2.
