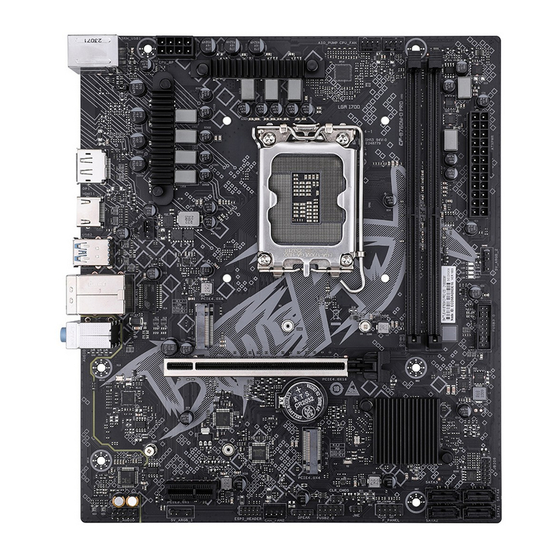

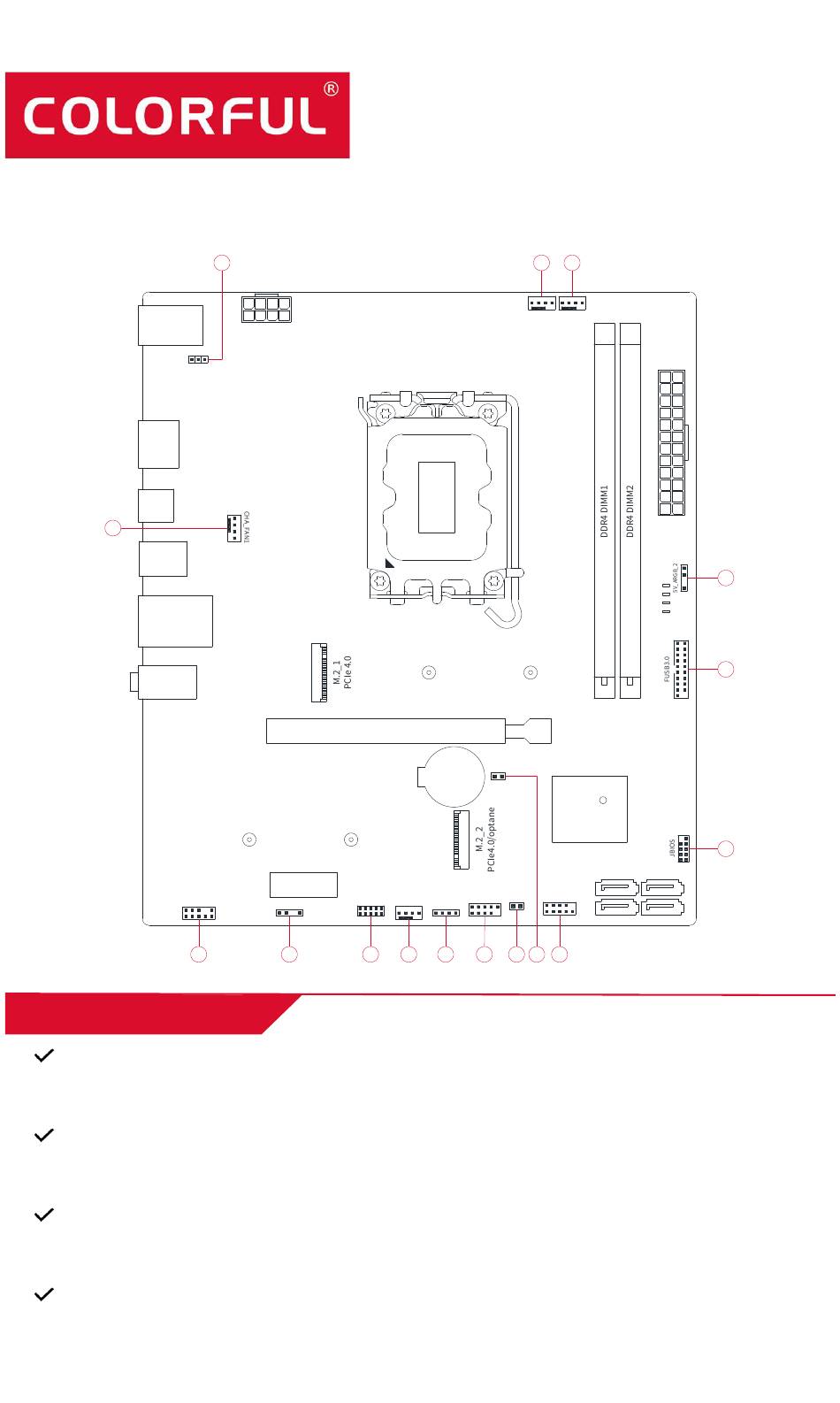

BATTLE-AX B760M-D PRO V20
PS/2
+
2*U2.0
DP
HDMI
2
2*U3.2G1
LAN
+
2*U3.2G1
AUDIO
Product Features
Intel B760 chipset,Supports 13th/12th Gen Intel® Core™ Processors, Pentium®
Gold and Celeron® Processors.
There is 1 PCIe 4.0 x16 slot，1 PCIe 3.0 x1 slot and 2 M.2 SSD slot on this
motherboard, easily meet your expansion needs.
There are 6 USB ports at the rear, and 4 USB ports at the front can be expanded,
which can be connected to various devices at the same time.
With 2.5G LAN and a 5.1-channel audio which provides excellent performance
and experience.
14
CPU_8P
JPS2
2280
2242
PCIe 3.0×1
F_AUDIO
5V_ARGB_1
7
6
Motherboard User Manual
LGA 1700
2242
PCIe 4.0×16
CLR_CMOS
BATTERY
JME
FUSB2.0_1
CHA_FAN2
ESPI_HEADER
SPEAK
2
9
4
13
10 11
3
1
AIO_PUMP CPU_FAN
ATX_PWR
2280
Intel
R
B760
SATA_3
SATA_4
F_PANEL
SATA_2
SATA_1
8
6
5
12
Advertisement
Table of Contents
Related Manuals for Colorful BATTLE-AX B760M-D PRO V20
Summary of Contents for Colorful BATTLE-AX B760M-D PRO V20
- Page 1 Motherboard User Manual BATTLE-AX B760M-D PRO V20 PS/2 AIO_PUMP CPU_FAN CPU_8P 2*U2.0 JPS2 ATX_PWR LGA 1700 HDMI 2*U3.2G1 2*U3.2G1 AUDIO 2242 2280 PCIe 4.0×16 CLR_CMOS BATTERY Intel B760 2280 2242 SATA_3 SATA_4 PCIe 3.0×1 F_PANEL FUSB2.0_1 CHA_FAN2 F_AUDIO ESPI_HEADER SPEAK...
-
Page 2: Package Details
(*Note: The blue in the audio interface is the audio input, the green is the audio output, and the pink is the microphone interface) Hardware Installation You can scan the QR code on the right to obtain the official quick operation guide for hardware installation provided by Colorful to install it onto your PC quickly. -
Page 3: Product Specification
Supports 13th Gen and 12th Gen Intel Core™, Pentium® and Celeron® processors that fit the LGA 1700 slot of the motherboard *Please visit the official website of Colorful (www.colorful.cn) for the latest supported processor list 2 DDR4 memory slots, supporting up to 64 GB of memory (a single slot can support a capacity of up to 32 GB) ●Support DDR4-4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/... - Page 4 Front 1×USB 2.0 pin, support additional 2 USB 2.0 Type-A interfaces (FUSB2.0_1) USB expansion 1×USB 3.2 Gen 1 pin, support additional 2 USB 3.2 Gen 1 Type-A interfaces interfaces (FUSB3.0) Realtek ALC897 High fidelity decoding chip Audio ●Support up to 5.1 channels Network function RTL8125 2.5G LAN controller Dimension of...
- Page 5 Front USB 3.2 Gen 1 pin (FUSB3.0) There is one front USB 3.2 Gen 1 expansion pin on the motherboard, which can be expanded to two USB 3.2 Gen 1 Type-A and it's compatible with USB 2.0 devices. 5V ARGB pin (5V_ARGB1、5V_ARGB2) There are two 5V 3-in ARGB pins on the motherboard, which are used for connecting 5V ARGB devices.
- Page 6 Clear CMOS jumper(CLR_CMOS) Clear CMOS jumper can be used to clear data in the CMOS memory of the motherboard. In CMOS memory it stores the BIOS setting parameters and is powered by the battery on the main board independently. If you need to clear CMOS data, first turn off the computer and unplug the power cord, insert the jumper cap onto the CMOS pin, and make the two pins Short connect the feet for 5 seconds, then pull out the jumper cap, wait for 5 minutes, and then start the computer to enter the BIOS Reset BIOS parameters...
-
Page 7: Driver Installation
You can open the driver installation program in the CD-ROM to quickly install the onboard network adapter, sound card, and chipset drivers. You can also visit the official website of Colorful (http://www.colorful.cn), search for the product model, and find the corresponding driver in the technical support list to download. The onboard LAN Driver can also be downloaded by scanning the QR code below. -
Page 8: Service And Support
Road, Meidu Community, Meilin Street, Futian District, Shenzhen Copyright and Notice: The copyright of this motherboard manual belongs to Colorful. Colorful does not guarantee the complete accuracy of the content of this manual. In case of any ambiguity caused by typographical or language errors, Colorful reserves the right to final interpretation and modification.
