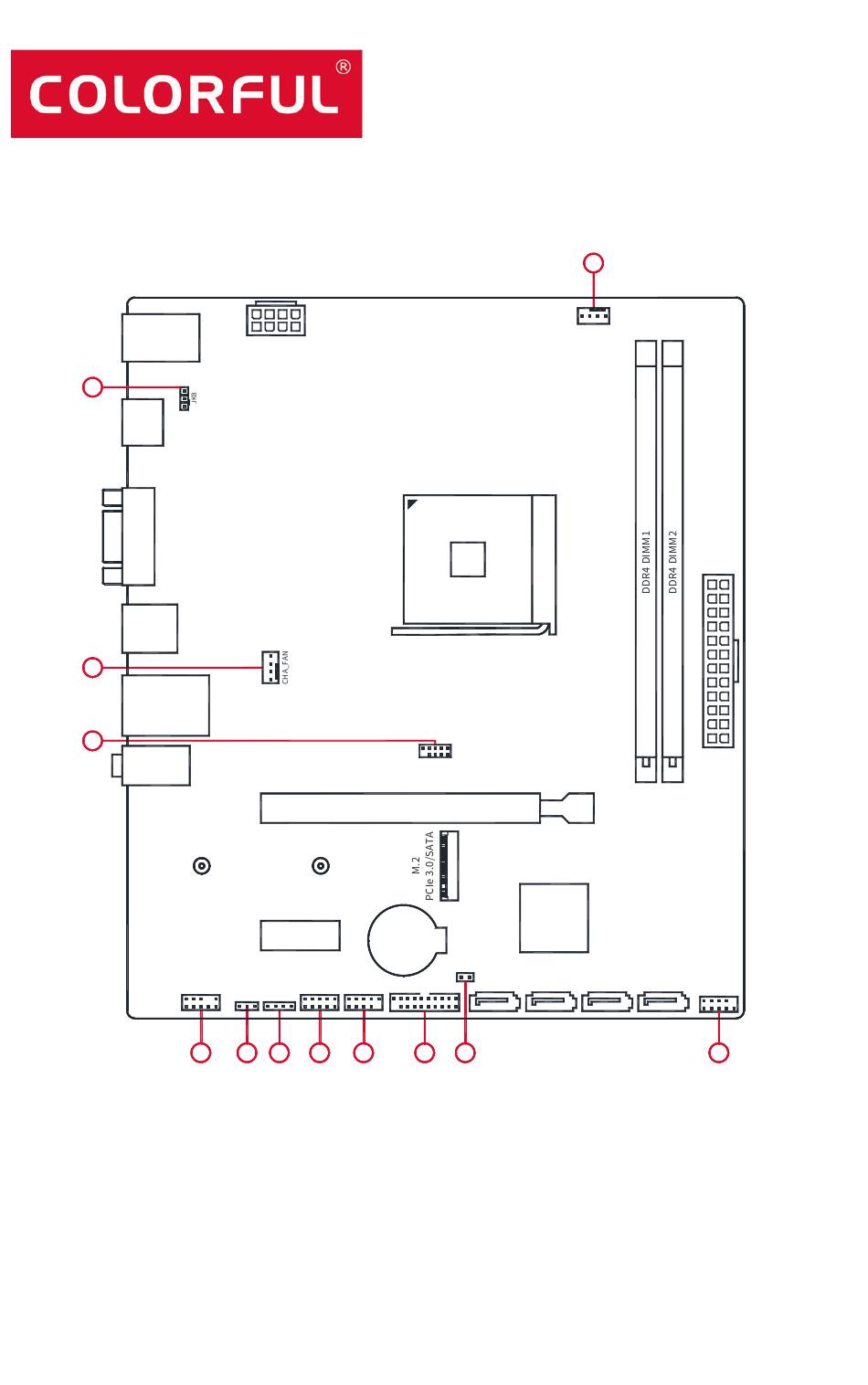

Motherboard User Manual
Version：V2.0

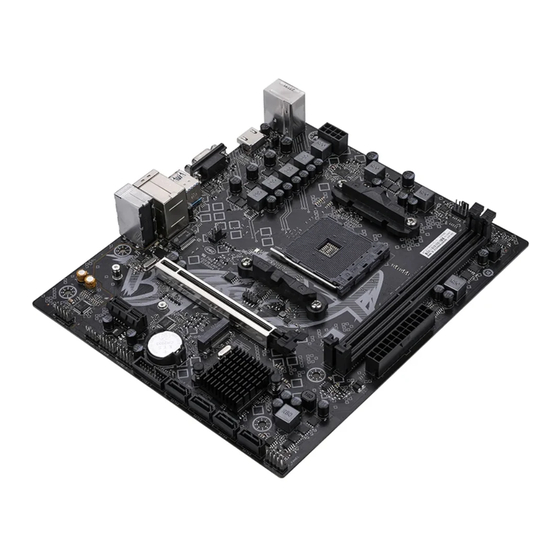

BATTLE-AX B450M-K M.2 V14
1
PS/2
CPU_FAN
+
CPU_8P
2*U2.0
12
HDMI
SOCKET AM4
VGA
ATX_PWR
2*U3.2G1
2
LAN
+
2*U3.2G1
10
AUDIO
JBIOS
PCIe 3.0×16
2280
2242
AMD
B450
PCIe 2.0×1
BATTERY
CLR_CMOS
FUSB3.0
F_AUDIO
DEBUG
FUSB2.0
F_PANEL
SATA_2
SATA_1
SATA_4
SATA_3
JSPDIF SPEAK
5
3
4
8
7
9
6
11
Advertisement
Table of Contents
Related Manuals for Colorful BATTLE-AX B450M-K M.2 V14
Summary of Contents for Colorful BATTLE-AX B450M-K M.2 V14
- Page 1 Motherboard User Manual Version：V2.0 BATTLE-AX B450M-K M.2 V14 PS/2 CPU_FAN CPU_8P 2*U2.0 HDMI SOCKET AM4 ATX_PWR 2*U3.2G1 2*U3.2G1 AUDIO JBIOS PCIe 3.0×16 2280 2242 B450 PCIe 2.0×1 BATTERY CLR_CMOS FUSB3.0 F_AUDIO DEBUG FUSB2.0 F_PANEL SATA_2 SATA_1 SATA_4 SATA_3 JSPDIF SPEAK...
-
Page 2: Product Features
Package Details Please check if all thestandard accessories listed below are complete or not when opening the packaging box of the motherboard. Motherboard 1×BATTLE-AX B450M-K M.2 V14 motherboard Connecting cable 2×SATA 6Gb/s cable Other accessories 1×Rear Panel I/O Shield User manual 1×User manual for motherboard... -
Page 3: Product Specification
AMD B450 Supports AMD Ryzen Processors that fit the AMD AM4 slot of the motherboard *Please visit the official website of Colorful (www.colorful.cn) for the latest supported processor list 2 DDR4 memory slots, supporting up to 64 GB of memory (a single slot can support a capacity of up to 32 GB) ●Support DDR4-3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400 MHz... -
Page 4: Pins And Jumpers
Network function RTL8111H gigabit LAN controller Dimension of M-ATX Form Factor motherboard 230mm x 197mm Pins and Jumpers CPU fan pin (CPU_FAN) There is one 4-pin CPU fan pin on the motherboard. The socket comes with a foolproof design, and the correct direction must be checked before installation. - Page 5 Front audio pin (F_AUDIO) The audio interface on the front panel of the case can be connected to the front audio pin through the audio cable in the case, allowing audio input/output and other functions through the audio interface on the front panel.
- Page 6 BIOS burner pin (JBIOS) BIOS burner pins can be used to upgrade the motherboard BIOS by connecting to the BIOS burner Debug light pin (DEBUG) The debug light pin can be used to connect to the motherboard debug light, And analyze the cause of abnormal motherboard based on the status displayed by the debugging light.
-
Page 7: Driver Installation
Driver Installation You can also visit the official website of Colorful (http://www.colorful.cn), search for the product model, and find the corresponding driver in the technical support list to download. The onboard LAN Driver can also be downloaded by scanning the QR code below. -
Page 8: Service And Support
Road, Meidu Community, Meilin Street, Futian District, Shenzhen Copyright and Notice: The copyright of this motherboard manual belongs to Colorful. Colorful does not guarantee the complete accuracy of the content of this manual. In case of any ambiguity caused by typographical or language errors, Colorful reserves the right to final interpretation and modification.
