Wiring diagrams

6 Wiring diagrams
This section provides the wiring diagrams for the product.

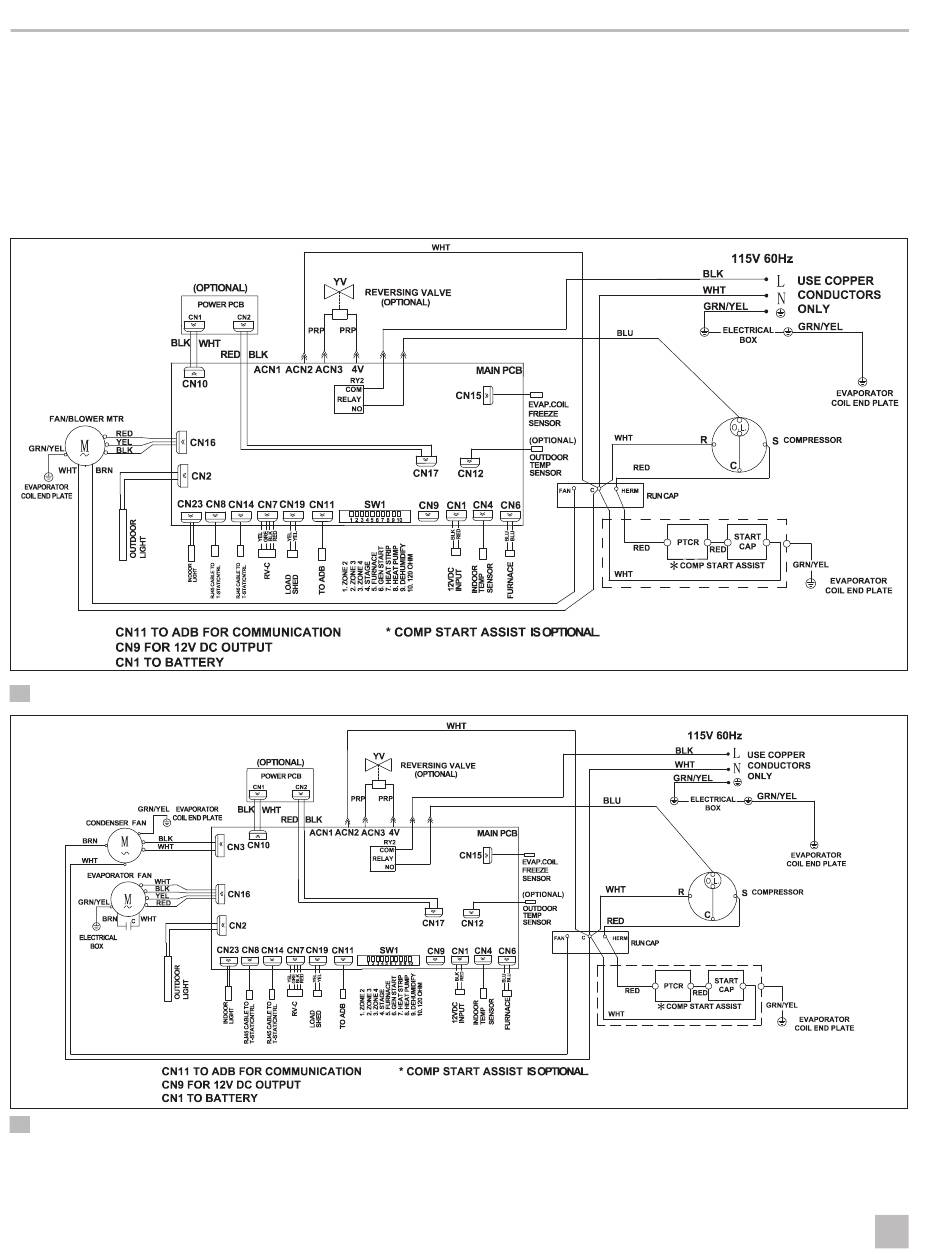

1 Wiring Diagram Definitions; 115 VAC; 60 Hz 1 PH; Use Copper Conductors only
- - - - - - Field wiring
---------- Factory wiring
• Line splice
4 FreshJet3 Series
5 FreshJet4 Series
10
Rooftop Air Conditioner (Air Distribution Box, Wall Thermostat Controls)
1
EN
