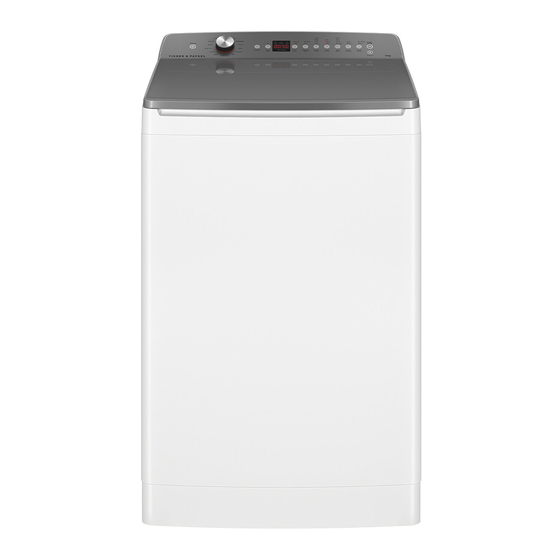

Fisher & Paykel 7 Series User Manual

Top loader washing machine
Hide thumbs Also See for 7 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
TOP LOADER WASHING MACHINE
WL1064P1 & WL1264P1 models
USER GUIDE
NZ AU

Advertisement

Table of Contents
loading

Related Manuals for Fisher & Paykel 7 Series

Summary of Contents for Fisher & Paykel 7 Series

  • Page 1 TOP LOADER WASHING MACHINE WL1064P1 & WL1264P1 models USER GUIDE NZ AU...

  • Page 3: Table Of Contents

    CONTENTS Safety and warnings Control panel Safety features First use Wash cycles Wash preparation Wash modifiers Auto Dose Favourites Option adjustment mode Saving water, energy and the environment Wi-Fi and remote Care and cleaning Before you call for service Fault codes Troubleshooting Manufacturer’s warranty Customer care...

  • Page 4: Safety And Warnings

    SAFETY AND WARNINGS WARNING! Electrical Shock Hazard Failure to follow this advice may result in electrical shock or death. • If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet box), ensure that it is positioned so that it does not come into contact with water or moisture.
  • Page 5 SAFETY AND WARNINGS MODEL CODE MAX CAPACITY* (KG) WL1064P1 WL1264P1 *Capacity refers to the maximum dry weight of items the washer can wash at any one time. (Note: Cycle dependent) Do not overload your washing machine beyond its rated capacity. Do not wash an electric blanket in your washer unless the care label specifically states it is safe to do so.

  • Page 6: Control Panel

    CONTROL PANEL 7 8 9 1 POWER Press to turn the washer ON/OFF 2 Wash Cycles Turn the dial to select the desired cycle for your load. 3 Remote Press and hold to control washer from the Fisher & Paykel app when Wi-Fi is enabled.

  • Page 7: Safety Features

    SAFETY FEATURES Keylock Keylock can be used to lock the control panel when not in use. Everything except POWER will be locked when active. If washer is turned off while is active, will KEYLOCK KEYLOCK remain active when the washer is turned back on. Turn KEYLOCK After starting your selected cycle, press and...

  • Page 8: First Use

    FIRST USE All controls only require a gentle press to activate. For best results, avoid repeated interruptions to the cycle, such as pressing , and ensure all items are removed as soon as the cycle has finished. Press to activate your washer. Select your desired wash cycle using the dial.
  • Page 9 FIRST USE Pausing a cycle To pause your washer during the cycle, press Cancelling a cycle To cancel a cycle or power the washer off at any time, press Progress indicators During a cycle, the progress indicators will illuminate to show the stage of the cycle that is being performed.

  • Page 10: Wash Cycles

    WASH CYCLES Wash cycle guide Your washer has a number of wash cycles to suit your needs. Selecting the most appropriate cycle for each wash load will help ensure you get the best wash result. MAX LOAD CYCLE WASH DESCRIPTION WASH TEMP SPIN SPEED (KG)
  • Page 11 WASH CYCLES cycle with selected is the recommended water COTTON MANUAL, ECO HIGH WARM FAST and energy saving cycle for normally soiled everyday washing. This cycle has a 2-step water fill to achieve the required water level and temperature for the best cleaning result.

  • Page 12: Wash Preparation

    WASH PREPARATION Sorting Sort items according to colour, fabric type, and soil type. Wash fine, delicate fabrics separately from thick, heavy fabrics. Always separate coloured items from whites, especially when they are new. Colour run could be an issue if you wash items at higher temperatures. Some soils, like mud and blood are best washed in cold water.
  • Page 13 WASH PREPARATION Auto Dose Where do I put my detergent? Open the cover of the Auto Dose dispenser and fill to ‘Max’ with liquid detergent. Close the cover. Only liquid detergent must be used in the dispenser. Do not fill past ‘Max’. The amount of detergent dispensed per wash can be adjusted.
  • Page 14 WASH PREPARATION Manual Dose Where do I put my detergent? Place your detergent into the detergent dispenser, located on the left side of the washer. We recommend that you measure your detergent first. You will notice that most of the detergent placed in the dispenser will fall into the washer.

  • Page 15: Wash Modifiers

    WASH MODIFIERS Once you have selected your wash cycle you may wish to change the default wash options. Water Level The washer defaults to for most cycles. If preferred, the water level can be manually AUTO set to one of the other available options: LOW, LOW MEDIUM (MED), MEDIUM (MED), MEDIUM (MED) HIGH HIGH...
  • Page 16 WASH MODIFIERS Wash Options This option allows you to add a combination of and/or to your cycle SOAK RINSE + WASH MODIFIER MODIFIER DESCRIPTION Will perform a one hour soak sequence in the middle of the wash phase, Soak agitating periodically every minute to help remove loosened dirt and stains. Adds an additional rinse to the default number of rinses to help remove any Rinse + residual detergent or soil.
  • Page 17 WASH MODIFIERS Optimise Wash This option allows you to add and/or to your cycle SANITISE WASH MODIFIER MODIFIER DESCRIPTION Saves energy and water by reducing the wash temperature and utilising a water- efficient spray rinse. Uses UV sanitisation during the wash and rinse phase of the cycle to eliminate Sanitise bacteria.

  • Page 18: Auto Dose

    AUTO DOSE Open the cover of the Auto Dose dispenser and fill to ‘Max’ with liquid detergent. Close the cover. Ensure Auto Dose is set to AUTO Liquid detergent will be dosed automatically. Do not add detergent to the manual dispenser when using AUTO.

  • Page 19: Favourites

    FAVOURITES Your washer can be programmed to remember your preferred wash modifiers for each wash cycle. Using the dial, select the desired wash cycle. Press and hold the desired wash modifier for 3 seconds. A long tone will sound and SET will display onscreen.

  • Page 20: Option Adjustment Mode

    OPTION ADJUSTMENT MODE After using your washer a number of times you may want to personalise some of the options to suit your wash needs. There are a number of pre-set options, which can be changed: The wash temperatures, including changing COLD CONTROLLED COLD The out of balance recovery routine.
  • Page 21 OPTION ADJUSTMENT MODE Wash temperature adjustment can be adjusted by increments of 1°C using the COLD, WARM COLD WARM WARM HOT wash temperature adjustment feature. To adjust further refer to ‘Controlled Cold’ over COLD page. will be set by the hot water supply temperature and cannot be adjusted. With the washer on at the wall, but off at the display, press and hold together for 3 seconds.
  • Page 22 OPTION ADJUSTMENT MODE Controlled Cold adds a small amount of hot water to the cold wash to raise the water CONTROLLED COLD temperature to approximately 20°C. This can be effective if your water supply temperature is very low or if the cold wash performance is not meeting your needs. With the washer on at the wall, but off at the display, press and hold together for 3 seconds.
  • Page 23 OPTION ADJUSTMENT MODE Out of balance recovery If an out of balance load is detected, the washer will stop and try to redistribute the load. To adjust the number of times the washer attempts to re-fill, OUT OF BALANCE RECOVERY can be used.
  • Page 24 OPTION ADJUSTMENT MODE End of cycle beeps The beeps signalling the end of a cycle can be increased or decreased using the END OF adjustment menu. CYCLE BEEPS With the washer on at the wall, but off at the display, press and hold together for 3 seconds.
  • Page 25 OPTION ADJUSTMENT MODE Factory reset Factory reset will clear any favourites saved by the user and any custom settings applied. With the washer on at the wall, but off at the display, press and hold together for 3 seconds. oPAd will show on the display. Select using the dial.

  • Page 26: Saving Water, Energy And The Environment

    SAVING WATER, ENERGY AND THE ENVIRONMENT Water efficient washing machines will save you money, but it is also worth thinking about energy use, recycling water and the environment. AUTO WATER LEVEL Wash larger loads instead of several smaller loads. Reduce the wash temperature. Follow instructions on the detergent packet –...

  • Page 27: Wi-Fi And Remote

    WI-FI AND REMOTE Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features. Getting started Ensure your home Wi-Fi network is turned on. You will be given step by step guidance on your mobile device.

  • Page 28: Care And Cleaning

    CARE AND CLEANING Before you start cleaning your washer, ensure that it is disconnected from the power. The dial and soft close lid are not designed to be removable for cleaning. Do not attempt to remove the dial or lid. Cleaning the control panel, topdeck and lid Use a soft damp cloth to wipe all surfaces, and wipe dry.
  • Page 29 CARE AND CLEANING Drum Clean It is important that you regularly clean the inside of your washer. Your washer has a DRUM cycle designed for this purpose. We recommend the use of commercial washing CLEAN machine cleaners only. Ensure the cleaner used is compatible with your waste water system, i.e.
  • Page 30 CARE AND CLEANING Auto Dose Tank Clean is not frequently used, detergent in the tank can become viscous, dry out and AUTO cause inaccurate dosing. Use the Tank Clean cycle when you experience poor cleaning performance. With the display panel turned off, press and hold AUTO DOSE for 3 seconds.

  • Page 31: Before You Call For Service

    BEFORE YOU CALL FOR SERVICE User warnings Please read the following pages before you call for service. Your washer is capable of diagnosing its own problems. If your washer gives a musical series of beeps every 10 seconds it is telling you that it has a problem which you can solve using the checklist below.

  • Page 32: Fault Codes

    FAULT CODES If a continuous series of beeps sound, all the lights turn off on the control panel and a number appears on the display, a fault has occurred. The washer automatically enters this mode when there is a fault. To stop the beeps, touch any button then perform the following steps: 1 Turn your machine off at the wall.

  • Page 33: Troubleshooting

    TROUBLESHOOTING The following is a list of problems you may encounter when using this appliance and some suggestions that may help to correct the problem. If you still have problems, please contact your Fisher & Paykel Authorised Repairer. Operating problems PROBLEM POSSIBLE CAUSES WHAT TO DO...
  • Page 34 TROUBLESHOOTING Operating problems PROBLEM POSSIBLE CAUSES WHAT TO DO Too much or too little Machine has been set to a Manual Ensure Auto Water Level is set rather than water when filling Water level rather than Auto. setting the water level yourself. Your washer has been designed to automatically sense load size and minimise water use, therefore...
  • Page 35 TROUBLESHOOTING Wash problems PROBLEM POSSIBLE CAUSES WHAT TO DO Wash cycle time If water pressure is low, cycle Ensure that inlet hose filters are longer than usual time will increase due to longer not blocked. fill times. The out of balance automatic Refer to ‘Option Adjustment Mode’.
  • Page 36 TROUBLESHOOTING Wash problems PROBLEM POSSIBLE CAUSES WHAT TO DO Poor soil removal Wash cycle selected not suited to Check you are using the appropiate cycle soil level in load. for the amount of dirt. Warm wash water is too cold. Refer to ‘Wash Temp’.
  • Page 37 TROUBLESHOOTING Wash problems PROBLEM POSSIBLE CAUSES WHAT TO DO Detergent residue Overloading the washer. Try reducing your load size. Incorrect detergent dosage. Try using less detergent. Check the detergent instructions. Cold ambient temperatures, Try pre-dissolving the detergent before cold washes and/or short adding it to the washer.

  • Page 38: Manufacturer's Warranty

    MANUFACTURER’S WARRANTY For New Zealand and Australia only. You automatically receive a two-year Manufacturer’s Warranty with the purchase of this clothes washer covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within two years of the date of purchase.
  • Page 39 MANUFACTURER’S WARRANTY G Pick-up and delivery. H Transportation or travelling costs involved in the repair when the product is installed outside the Fisher & Paykel trained and supported service technician’s normal service area. Nothing in this Manufacturer’s Warranty is intended to, nor limits, any rights you may have under law to recover the costs of inspecting or returning the goods to us.

  • Page 40: Customer Care

    CUSTOMER CARE Before you call for service or assistance: Check our website, fisherpaykel.com, for ‘Product Help’ to see the latest updates, hints and tips, and information about your product. We recommend that you also refer to your User and installation guide to ensure: 1 Your product is correctly installed.
  • Page 41 CUSTOMER CARE Registration Register your product with us so we can provide you with the best service possible. To register your product visit our website: fisherpaykel.com Complete and keep for safe reference: Model Serial No. Purchase Date Purchaser Dealer Suburb Town Country...
  • Page 42 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.

This manual is also suitable for:

Wl1064p1Wl1264p1
