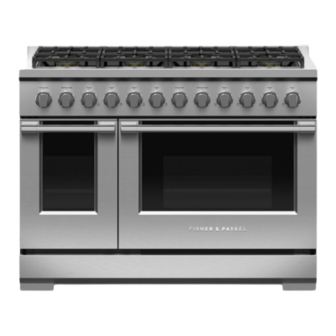

QUICK REFERENCE GUIDE > RGV3-488-L
Gas Range, 48", 8 Burners,
LPG
Series 7 | Professional
Stainless Steel | LPG
Size plus power. Eight burners deliver powerful 23,500 BTU heat,
with two gas ovens for a combined 7.7 cu ft capacity.
Top burner heat of 17,000 BTU, for seriously fast boiling
Expansive 7.7 cu ft total oven capacity across two oven cavities
Non-tip full-extension shelves in main cavitiy for safe removal
of hot dishes
Made from quality materials and real stainless steel
DIMENSIONS
Height
Width
Depth
FEATURES & BENEFITS
GENEROUS CAPACITY
Featuring a generous total capacity of 7.7 cu ft, with enough
room to fit a 32 lb turkey, or to cook several dishes at once.
COOKTOP POWER
Sealed Dual Flow Burners™ deliver cooktop power up to 17,000
BTU for seriously fast boiling right down to a precise 140°F full
surface simmer with the gentlest of flames.
COOKING FLEXIBILITY
The cooktop is designed for easy access to any burner with
grates you can smoothly slide pots across. The oven is large
enough to hold full size baking sheets.
EASY TO CLEAN
Cleaning up spills is effortless with the continuous, porcelain
basepan. Your cooktop simply needs a quick wipe to keep it
looking good as new.
DESIGN QUALITY
This range has craftsmanship in every detail, with real stainless
steel, cast-iron grates, and titanium coated dials. Each cavity
features incandescent lights and full extension telescopic racks.
From the robust legs to the powerful legs to the powerful
cooktop, the Range is built to last.
TOTAL CONTROL
Precise control across high and low settings is delivered through
the halo-illuminated cooktop dials.
SPECIFICATIONS
35 3/4 - 36 3/4"
Accessories (sold separately)
Square handle option
47 7/8"
29 1/8"
Burner ratings
Maximum burner power
Power back centre
Power back centre (2)
Power back left
Power back right
Power centre
Power front centre (2)
Power front left
Power front right
Total cooktop power
Capacity
Shelf positions
Total capacity (main oven)
Total capacity second oven
Usable capacity (main oven)
Cleaning
Easy clean porcelain basepan
Controls
Electric circuit
Metal illuminated dials
Gas Requirements
Date: 22.06.2023 > 1
AH-R48
17000 BTU
13000BTU
13000BTU
13000BTU
13000BTU
15000BTU
15000BTU
17000BTU
17000BTU
116000 BTU
5
5.3cu ft
2.4cu ft
3.9cu ft
•
3 wire
•
