SPROUT Immerse - Speaker Manual

WHAT'S IN THE BOX?

For optimum performance and safety, please read instructions carefully before usage.
Please keep this manual for future reference.

1x Immerse Bluetooth Speaker
1x Australian standard charging adaptor power supply
1x Aux-in audio cable
1x Product manual

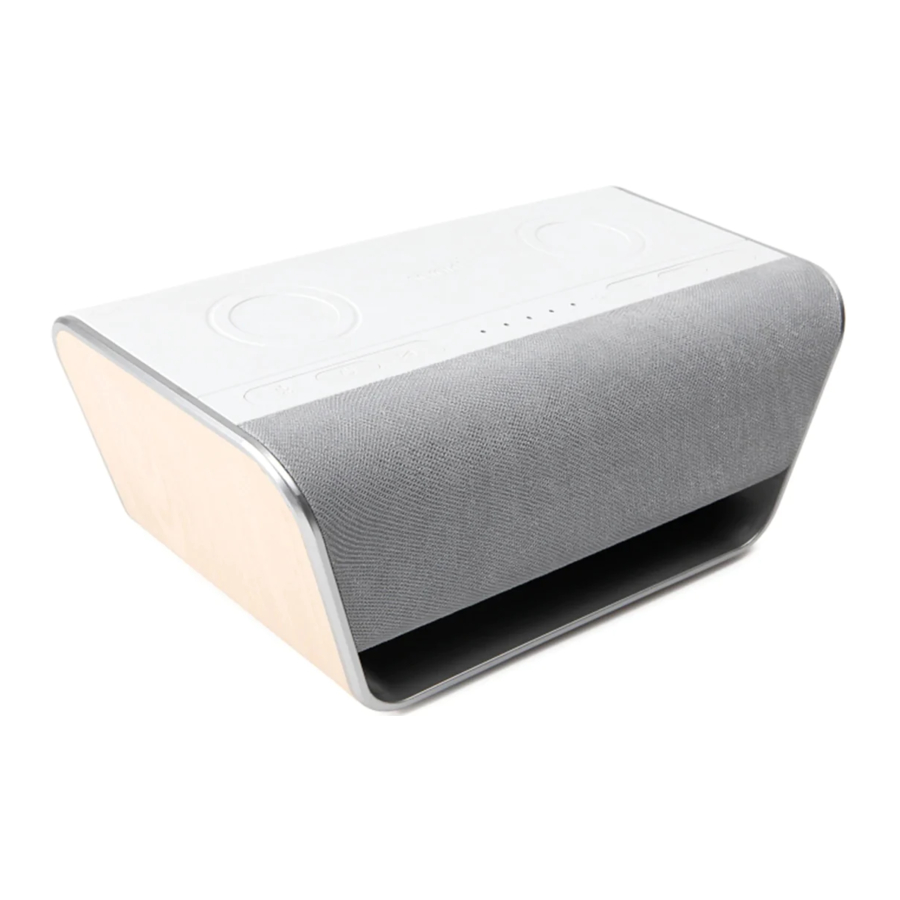

PRODUCT OVERVIEW

PRODUCT OVERVIEW - Part 1

Wireless charging pads
Bluetooth button
Power button
UNISYNC^TM button
LED indicator
Battery LED indicator
Voice assistant button
Volume down button
Play/pause/answer button
Volume up button
Ventilation
USB-C output
3.5mm aux input port
Charging input

QUICK START GUIDE

CHARGING YOUR IMMERSE

Connect the speaker via the DC 15V/4.3A charging input to a power source using the included Australian standard power supply
The LED battery indicator will flash from one to four LEDs to indicate Immerse is charging. A full charge will take about 2-3 hours

CONNECTING VIA 3.5MM AUX CABLE

To play audio using the aux cable, connect the cable from the Immerse to your device.

warning Please note: Using 3.5mm aux input will override a Bluetooth source input.

CONNECTING VIA BLUETOOTH

Press the power button for approximately three seconds. The LED indicator will display as solid blue to indicate power is on
Press the Bluetooth button once. The LED Indicator will flash red and blue to indicate Immerse is ready for pairing*
Turn on Bluetooth on your mobile phone/music device**
'Immerse' will appear on your mobile phone/music device. Select 'Immerse' to pair
Once your mobile phone/music device is paired with Immerse, you will hear 'Bluetooth connected'***
Enjoy your music

*If the LED is not flashing red and blue, press the Bluetooth button one more time.
**If you are not familiar with Bluetooth pairing for your mobile phone or music device, refer to the user guide for your mobile phone/music device for instructions to pair a new device using Bluetooth.
***Immerse will always store the last device paired and if the device is within Bluetooth range, Immerse will automatically connect to the device.

OPERATING CONTROLS

POWER

Press the power button for 3 seconds to turn the Immerse on or off.

PLAY/PAUSE/ANSWER

Press the play/pause/answer button to play or pause songs and answer mobile phone calls.

VOLUME CONTROL

Short press '-' button to decrease volume.
Short press '+' button to increase volume.

TRACK CONTROL

Long press '-' button to select previous song.
Long press '+' button to select next song.

BLUETOOTH

Press the Bluetooth button to turn on/off the Immerse Bluetooth function.

CONNECTING MULTIPLE SPEAKERS VIA UNISYNC^TM

If you are using the UNISYNC feature you can connect one Immerse as a primary, then connect up to 50 UNISYNC devices as replicas.

To connect a replica, short press the UNISYNC button on your primary device once to enter UNISYNC mode. Once the primary announces it is in UNISYNC mode, repeat on the replica. After the replica announces it is in UNISYNC mode, press the UNISYNC button once more – the replica should now announce it is using UNISYNC audio. The primary speaker will show a solid blue light while replicas will show a flashing red and blue light.

Press UNISYNC button again to disable UNISYNC.* Press and hold the UNISYNC button for five seconds to reset the UNISYNC function.**

*If UNISYNC is disabled, Immerse will disconnect from but remember the replicas connected to it.
**Resetting UNISYNC will enable Immerse to 'forget' all replica devices.

WIRELESS CHARGING

The wireless charging pads conveniently recharge your Qi-compatible devices.

LED INDICATOR

Solid blue LED indicates Immerse is switched on.

FLASHING

Solid blue – Power on
Flash blue/red – Power off
Flashing blue/red – Bluetooth pairing mode
Solid blue – Bluetooth connected

LED BATTERY INDICATOR

4 white lights on:
Battery 76-100%

3 white lights on:
Battery 51-75%

2 white lights on:
Battery 26-50%

1 white light on:
Battery 0-25%

The battery LED indicator will flash from one to four LEDs to indicate Immerse is charging. The lights will stop flashing once Immerse is fully charged.

SPECIFICATIONS

Weight: 1.9kg
Output power: RMS 40W
S/N ratio: 85db +/- 3db
Frequency range: 90Hz - 20kHz
Power source: 11.1V, 7800mAh lithium battery
Playtime: 4-5 hours from full charge at 75% volume level
Charging time: Approximately 2-3 hours
Function: Bluetooth/ UNISYNC/ Aux-in/Microphone/ USB Type-C power output/ DC input/Dual 10W wireless charging output
Bluetooth version: 5.1
Operating temperature: -10°C to 55°C

IMPORTANT SAFETY INFO

Immerse Bluetooth Speaker is designed for indoor use
Do not use Immerse in conditions that expose it to liquid
Do not put metal objects or magnets between the mobile device and the wireless charging surface
Ensure all ventilation openings remain clear and dust free
Do not attempt to charge Immerse when it is wet, or you suspect water has seeped into Immerse
Do not use Immerse near any open fire, heat source or excessive heat
Do not open to modify, repair or remove any original component of Immerse. A qualified technician must carry out repair work. Do not remove the built-in battery or the grill cover. Doing so could cause damage to Immerse
Sound levels should be appropriate to your environment and comply with all local regulations. Ensure that you can hear and are aware of any potential hazards around you when you are enjoying your Immerse

All Sprout products go through thorough quality assurance inspections. If you find that your device is excessively hot, is emitting odour, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact Sprout.
