Teltonika FMB140 First Start-Up Quick Start Manual

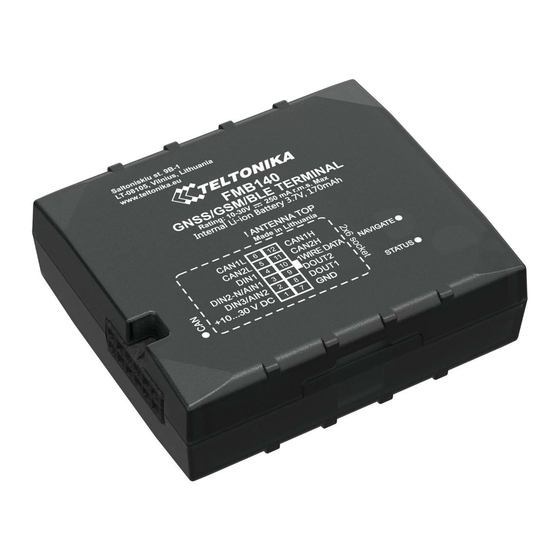

Gnss/gsm/bluetooth tracker with integrated can chip, internal gnss/gsm antennas and internal battery

Hide thumbs Also See for FMB140:

https://wiki.teltonika-gps.com/view/FMB140_First_Start

FMB140 First Start

Main Page

CAN Trackers & Adapters

GNSS/GSM/Bluetooth tracker with integrated CAN chip, internal GNSS/GSM antennas and

internal battery

Contents

1 How to insert Micro-SIM card

How to insert Micro-SIM card

Gently remove FMB140 cover using plastic pry tool from both sides.

Insert Micro-SIM card as shown with PIN request disabled or read

enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing

forward to slot.

Attach device cover back.

Device is ready to be connected.

Micro-SIM card insertion/removal must be performed when device is powered off –

external voltage and internal battery disconnected. Otherwise Micro-SIM card might be

damaged or device will not detect it.

Battery placement after complete device disassembling

FMB140

> FMB140 First Start

Security info

how to

Table of Contents

Do you have a question about the FMB140 and is the answer not in the manual?

Page 1 4.1 Installation photos 5 Safety information 5.1 Precautions How to insert Micro-SIM card Gently remove FMB140 cover using plastic pry tool from both sides. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing forward to slot.
Page 2 Using double sided tape, stick internal battery to the bottom part of the device case. Battery should be glued approximately 15 millimeters from the bottom wall of the case. Picture on the left. Connect battery to the PCB. Gently place PCB into the bottom case. 2x6 socket pinout PIN NAME DESCRIPTION...
Page 3 Installation photos FMB140 is the device that has internal GNSS and GSM antenna. Device should be mounted with the sticker / engraving view to the open sky (metal free). FMB140 area with engraving is shown in figure below:...
Page 4 FMB140 can be mounted under the plastic panel behind the front window, with the sticker / engraving direction to a window (sky). It is recommended to place FMB1YX behind dashboard as close to the window as possible. A good example of GNSS antenna placement is displayed in a picture below (area colored blue).
