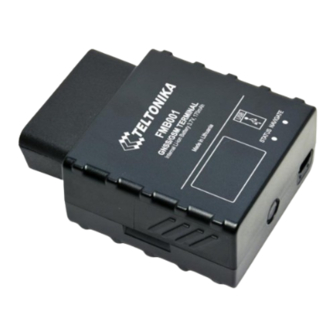

Advanced plug and track real-time tracking terminal with gnss, gsm and bluetooth connectivity
Hide thumbs Also See for FMB001:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
https://wiki.teltonika-gps.com/view/FMB001_First_Start
FMB001 First Start
Main Page
>
OBD Trackers
Advanced Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth
connectivity
Contents
1 How to insert Micro-SIM card and connect battery
How to insert Micro-SIM card and connect battery
1.
Gently remove FMB001 cover using plastic pry tool from both sides.
2.
Insert Micro-SIM card as shown with PIN request disabled or read
enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing
forward to slot.
3.
Connect battery as shown to device. Position the battery in place where it does not obstruct
other components.
Attach device cover back.
4.
Device is ready to be connected.
Micro-SIM card insertion/removal must be performed when device is powered off - external
voltage and battery are disconnected. Otherwise Micro-SIM card might be damaged or
device will not detect it.
>
FMB001
> FMB001 First Start
