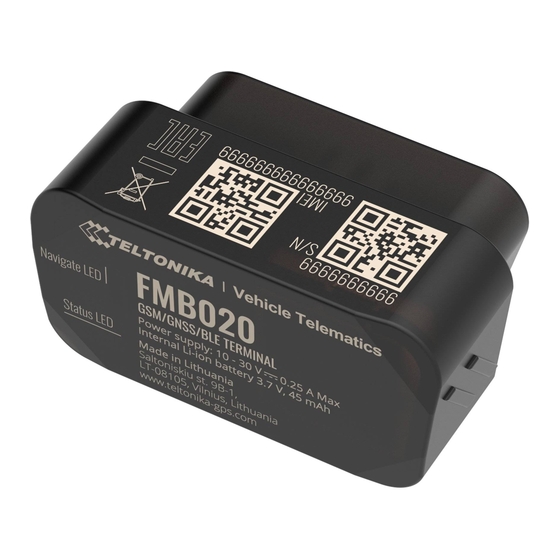

- Page 1 FMB020 Quick Manual Easy OBDII tracker v1.3...
-
Page 2: Table Of Contents
Configuration (Windows) ..................6 Quick SMS configuration ..................8 Mounting recommendations ............... 9 LED indications ..................10 Basic characteristics ................10 Safety information ................12 Certification and Approvals ............... 13 Warranty ....................14 Warranty Disclaimer .................... 14 FMB020 | Wiki... -
Page 3: Know Your Device
Know your device Figure 1 FMB020 device view FMB020 | Wiki... -
Page 4: Pinout
Pinout Table 1 OBDII pinout PIN NUMBER PIN NAME DESCRIPTION GND (-) Ground GND (-) Ground VCC (10 - 30)V DC(+) Power supply (+10-30 V DC) Figure 2 FMB020 OBDII socket pinout FMB020 | Wiki... -
Page 5: Set Up Your Device
3. Connect the battery as shown in the figure. 4. After configuration, see “Error! Reference source not found.”, attach device cover back. Device is ready to be mounted. Figure 5 Battery connection Figure 6 Attach device cover back FMB020 | Wiki... -
Page 6: Pc Connection (Windows)
(Figure 7 Language selection). 4. Please download COM port drivers from here. 5. Extract and run TeltonikaCOMDriver.exe. 6. Click Next in driver installation window. 7. In the following window click Install button. FMB020 | Wiki... - Page 7 Most important configurator section is GPRS – where all your server GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMB020 configuration using Configurator can be found in our Wiki. Figure 9 Configurator Status window FMB020 | Wiki...
-
Page 8: Quick Sms Configuration
• time and update records to configured server. Time intervals and 2006 – Data sending protocol (0 • default I/O elements can be changed by using Teltonika – TCP, 1 – UDP) Configurator parameters. Default configuration settings FMB020 | Wiki... -
Page 9: Mounting Recommendations
Mounting recommendations • Connecting the device to the vehicle: ▬ Find OBDII connector in your vehicle (Figure 10. Most common OBDII connector locations.). Figure 10. Most common OBDII connector locations. FMB020 | Wiki... -
Page 10: Led Indications
Quad-band 850 / 900 / 1800 / 1900 MHz GPRS Multi-Slot Class 12 (up to 240 Data transfer kbps) Data support SMS (text/data) POWER Input voltage range 12 - 30 V DC with overvoltage protection Back-up battery 3.7 V 45 mAh FMB020 | Wiki... - Page 11 52.6 x 29.1 x 26 mm (L x W x H) Ignition detection Accelerometer, External Power Voltage OPERATING ENVIRONMENT Operating temperature (without battery) -40 °C to +85 °C Storage temperature (without battery) -40 °C to +85 °C Operating humidity 5% to 95% non-condensing FMB020 | Wiki...
-
Page 12: Safety Information
Safety information The programming must be performed using a PC with autonomic power supply. This message contains information on how to operate FMB020 safely. Installation and/or handling during a lightning storm By following these requirements and recommendations, you will avoid is prohibited. -
Page 13: Certification And Approvals
FMB020 REACH • FMB020 Declaration of IMEI assignment • FMB020 Declaration of device operation temperature • This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. Full User‘s Manual version can be found in our Wiki. -
Page 14: Warranty
More information can be found at teltonika.lt/warranty-repair • Repaired • Replaced with a new product • Replaced with an equivalent repaired product fulfilling the same functionality • TELTONIKA can also repair products that are out of warranty at an agreed cost. FMB020 | Wiki...
