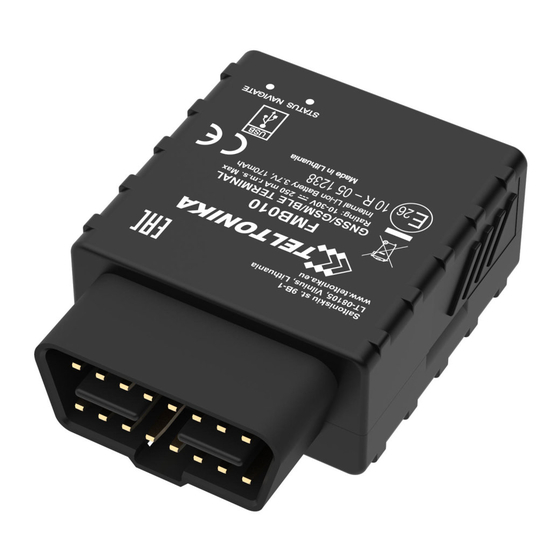

An easy plug and track real-time tracking terminal with gnss, gsm and bluetooth connectivity
Hide thumbs Also See for FMB010:
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual
https://wiki.teltonika-gps.com/view/FMB010_First_Start
FMB010 First Start
Main Page
>
Fast & Easy Trackers
An easy Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth
connectivity
Contents

1 How to insert Micro-SIM card and connect battery

How to insert Micro-SIM card and connect battery
1.
Gently remove FMB010 cover using plastic pry tool from both sides.
2.
Insert Micro-SIM card as shown with PIN request disabled or read
enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing
forward to slot.
3.
Connect battery as shown to device. Position the battery in place where it does not obstruct
other components.
Attach device cover back.
4.
Device is ready to be connected.
Micro-SIM card insertion/removal must be performed when device is powered off – external
voltage and battery are disconnected. Otherwise Micro-SIM card might be damaged or
device will not detect it.
>
FMB010
> FMB010 First Start
Security info
how to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMB010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika FMB010

Summary of Contents for Teltonika FMB010

  • Page 1 4 Quick start guide 5 Safety information 5.1 Precautions How to insert Micro-SIM card and connect battery Gently remove FMB010 cover using plastic pry tool from both sides. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator.
  • Page 2 Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. Configuration (Windows) At first FMB010 device will have default factory settings set. These settings should be changed according to the user's needs. Main configuration can be performed via Teltonika Configurator software.
  • Page 3 Various and etc. FMB010 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
  • Page 4 If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMB010 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.
  • Page 5 Teltonika is not responsible for any harm caused by wrong cables used for connection between PC and FMB010. WARNING! Do not use FMB010 device if it distracts driver or causes inconvenience due to OBD II placement. Device must not interfere with driver.
