FMB010
Quick Manual
Easy OBDII tracker
v1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMB010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika FMB010

Summary of Contents for Teltonika FMB010

  • Page 1 FMB010 Quick Manual Easy OBDII tracker v1.3...

  • Page 2: Table Of Contents

    How to install USB drivers (Windows) ..........6 Configuration (Windows) ..............6 Quick SMS configuration ..............8 LED indications ................9 Basic characteristics ..............9 Safety information ..............11 Certification and Approvals ............12 Warranty ..................13 Warranty Disclaimer ............... 13 Wiki FMB010 |...

  • Page 3: Know Your Device

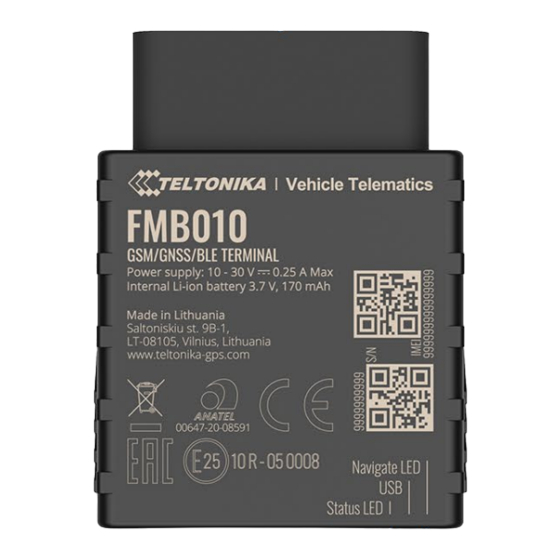

    Know your device Figure 1 FMB010 device view Wiki FMB010 |...

  • Page 4: Pinout

    Pinout Table 1 OBDII pinout PIN NUMBER PIN NAME DESCRIPTION DIN1 Ignition input PWM_BUS+/VPW GND (-) Ground GND (-) Ground PWM_BUS- VCC (10 - 30)V DC(+) Power supply (+10-30 V DC) Figure 2 FMB010 OBDII socket pinout Wiki FMB010 |...

  • Page 5: Set Up Your Device

    Set up your device How to insert Micro-SIM card and connect the battery 1. Gently remove FMB010 cover using plastic pry tool from both sides. 2. Insert Micro-SIM card as shown with PIN request disabled or read our Wiki how to enter it later in Teltonika Configurator.

  • Page 6: Pc Connection (Windows)

    Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. 1. Power-up FMB010 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see Configuration (Windows) “LED indications”...
  • Page 7 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMB010 configuration using Configurator can be found in our Wiki. Figure 9 Configurator Status window Wiki FMB010 |...

  • Page 8: Quick Sms Configuration

    • server every 120 seconds 2005 – Port • After successful SMS configuration, FMB010 device will 2006 – Data sending protocol • synchronize time and update records to configured server. (0 – TCP, 1 – UDP) Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.

  • Page 9: Led Indications

    Modem activity CELLULAR Device is not working or Device is in boot mode Technology Quad-band 850 / 900 / 1800 / 1900 2G bands GPRS Multi-Slot Class 12 (up to 240 Data transfer kbps) Data support SMS (text/data) Wiki FMB010 |...
  • Page 10 128MB internal flash memory GPRS commands Configuration, Debug PHYSICAL SPECIFICATION Time Synchronization GPS, NITZ, NTP Digital Input 1, Accelerometer, Dimensions 50,7 x 49,6 x 25 mm (L x W x H) Ignition detection External Power Voltage Weight 63 g Wiki FMB010 |...

  • Page 11: Safety Information

    Please consult representatives of your vehicle model regarding OBDII location on your vehicle. In case you are not sure about proper connection, This message contains information on how to operate FMB010 please consult qualified personnel. safely. By following these requirements and recommendations, you will avoid dangerous situations.

  • Page 12: Certification And Approvals

    00647‐20‐08591 • FMB010 RoHS FMB010 REACH • For more information, see the ANATEL FMB010 Declaration of IMEI assignment • website www.anatel.gov.br This equipment is not entitled to protection against harmful interference and must not This sign on the package means that it is cause interference in duly authorized necessary to read the User‘s Manual before...

  • Page 13: Warranty

    More information can be found at teltonika.lt/warranty-repair • Repaired • Replaced with a new product • Replaced with an equivalent repaired product fulfilling the same functionality • TELTONIKA can also repair products that are out of warranty at an agreed cost. Wiki FMB010 |...
