Knowthe Generator - Generac Power Systems LP Series Owner's Manual

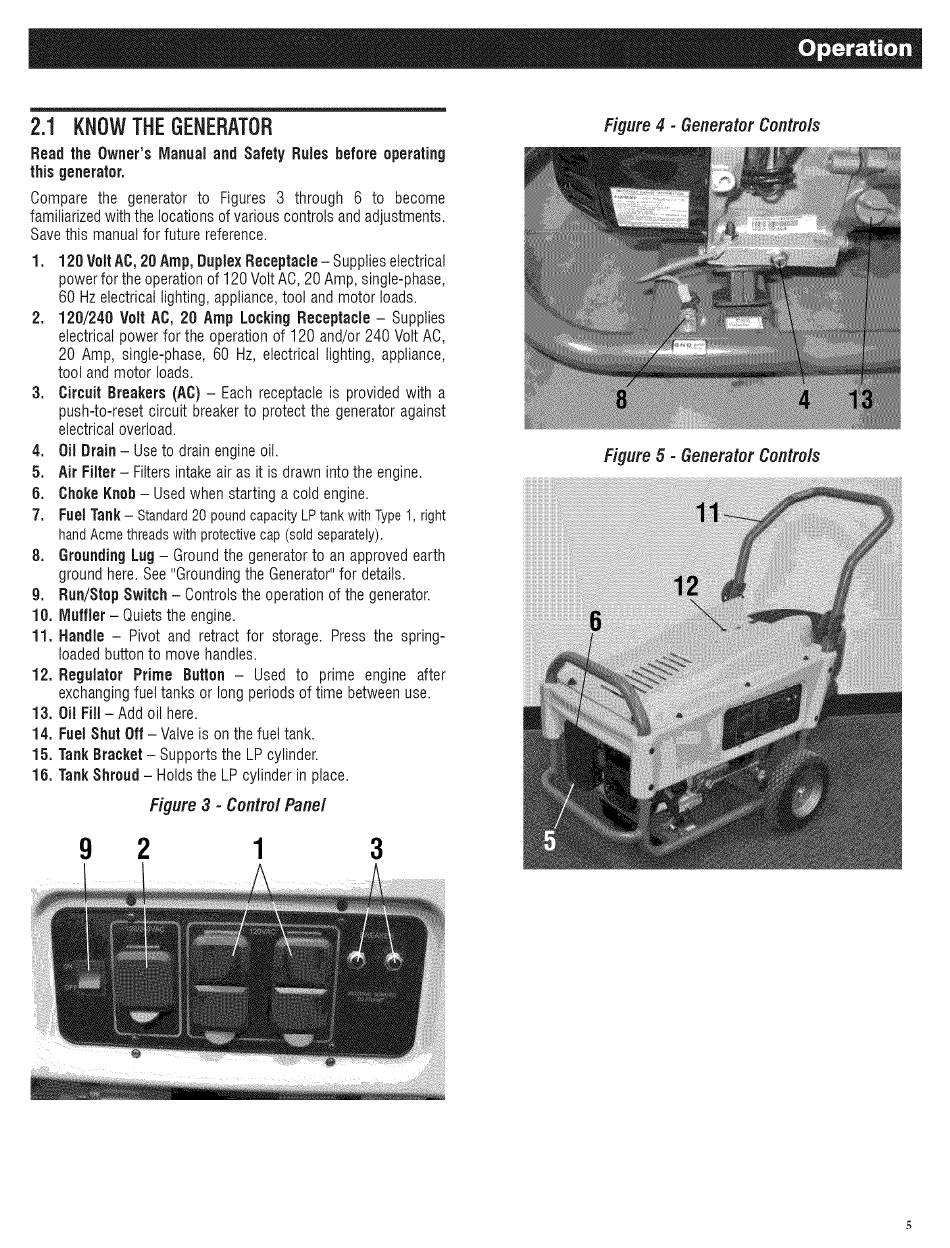

2.1 KNOWTHE G ENERATOR
Read the Owner'sIVlanualand Safety Rules before operating
this generator.
Compare the generator to Figures 3 through 6 to become
familiarizedwith the locationsof various controls and adjustments.
Savethis manualfor future reference.
1. 120 VoltAC,20 Amp,DuplexReceptacle- Supplieselectrical
powerfor the operationof 120 VoltAC, 20 Amp, single-phase,
60 Hz electrical lighting, appliance,tool and motor loads.
2. 120/240 Volt AC, 20 Amp LockingReceptacle- Supplies
electrical power for the operation of 120 and/or 240 Volt AC,
20 Amp, single-phase, 60 Hz, electrical lighting, appliance,
tool and motor loads.
3. Circuit Breakers (AC) - Each receptacle is provided with a
push-to-reset circuit breakerto protect the generatoragainst
electricaloverload.
4. Oil Drain- Useto drain engine oil.
5. Air Filter - Filters intakeair as it is drawn into the engine.
6. Choke Knob- Usedwhen starting a cold engine.
7. Fuel Tank- Standard 20 poundcapacity LPtankwithType1, right
handAcmethreads with protective cap(soldseparately).
8. Grounding Lug - Ground the generatorto an approvedearth
ground here. See "Groundingthe Generator"for details.
9. Run/Stop Switch- Controlsthe operationof the generator.
10. IViuffler - Quietsthe engine.
11. Handle - Pivot and retract for storage. Press the spring-
loaded button to move handles.
12. Regulator Prime Button - Used to prime engine after
exchangingfuel tanks or long periodsof time between use.
13. Oil Fill-Add oil here.
14. FuelShut Off - Valve is on the fuel tank.
15. TankBracket - Supports the LP cylinder.
18. TankShroud - Holds the LP cylinder in place.
Figure3 - Contro/Pane/
9 2 1 3
Figure4 - GeneratorControls
Figure 5 - GeneratorControls
